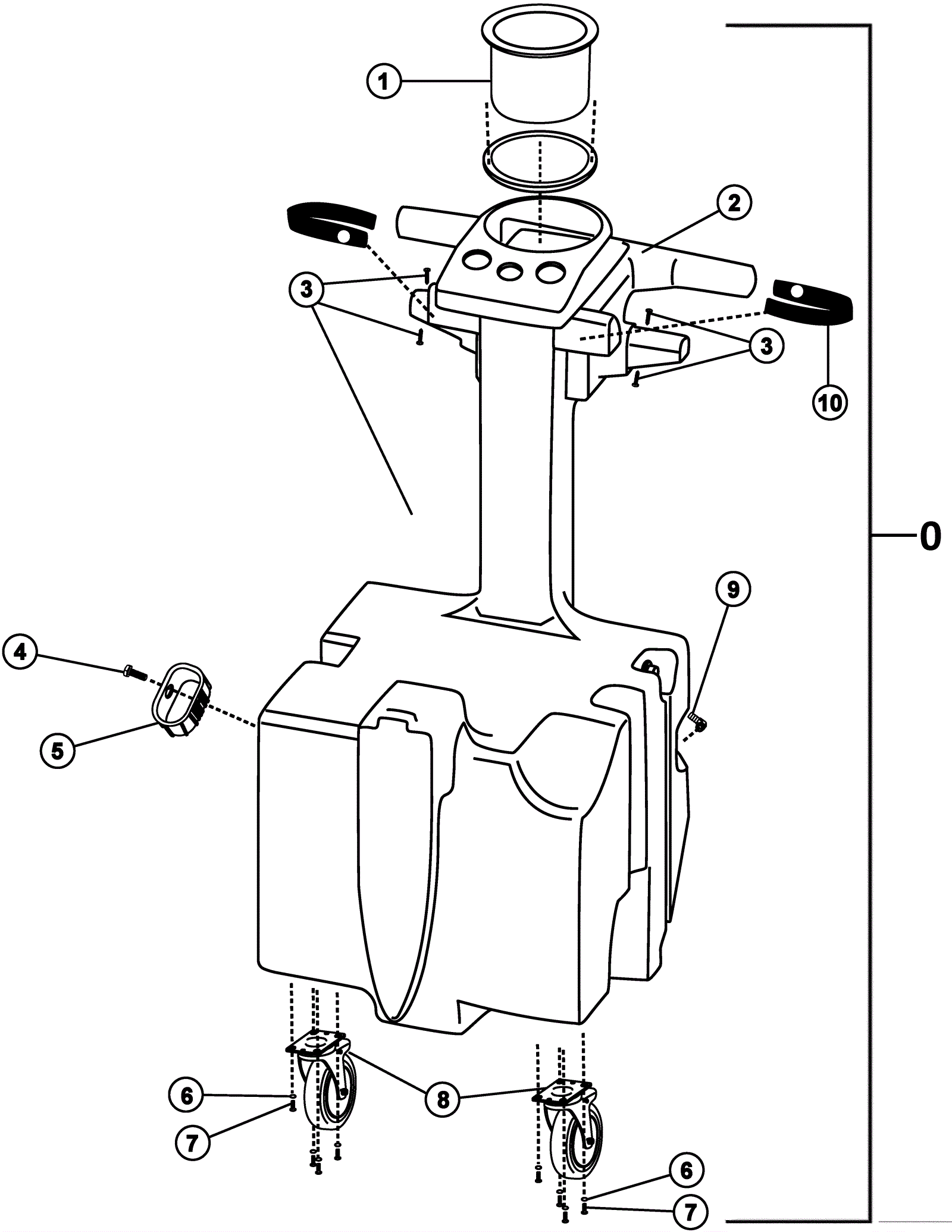

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0757
|
Water tank assembly (green) |
1 |
|
|
1 |
225-0560
|
Jug holder vac lid assembly |
1 |
|
|
2 |
225-1125
|
Cooler cleaner water tank (green) |
1 |
|
|
3 |
225-0145
|
Screw 3/4 inch stainless steel |
5 |
|
|
4 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
5 |
225-0507
|
Cup |
1 |
|
|
6 |
999-0028
|
Washer 5/16 split lock plain finish |
8 |
|
|
7 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
8 |
|
|
8 |
225-0255
|
5 inch caster wheel |
2 |
|
|
9 |
225-0345
|
90 degree hose barb 3/8 inch |
1 |
|
|
10 |
225-0348
|
4 inch snap and strap |
1 |
|
|
