| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0756
|

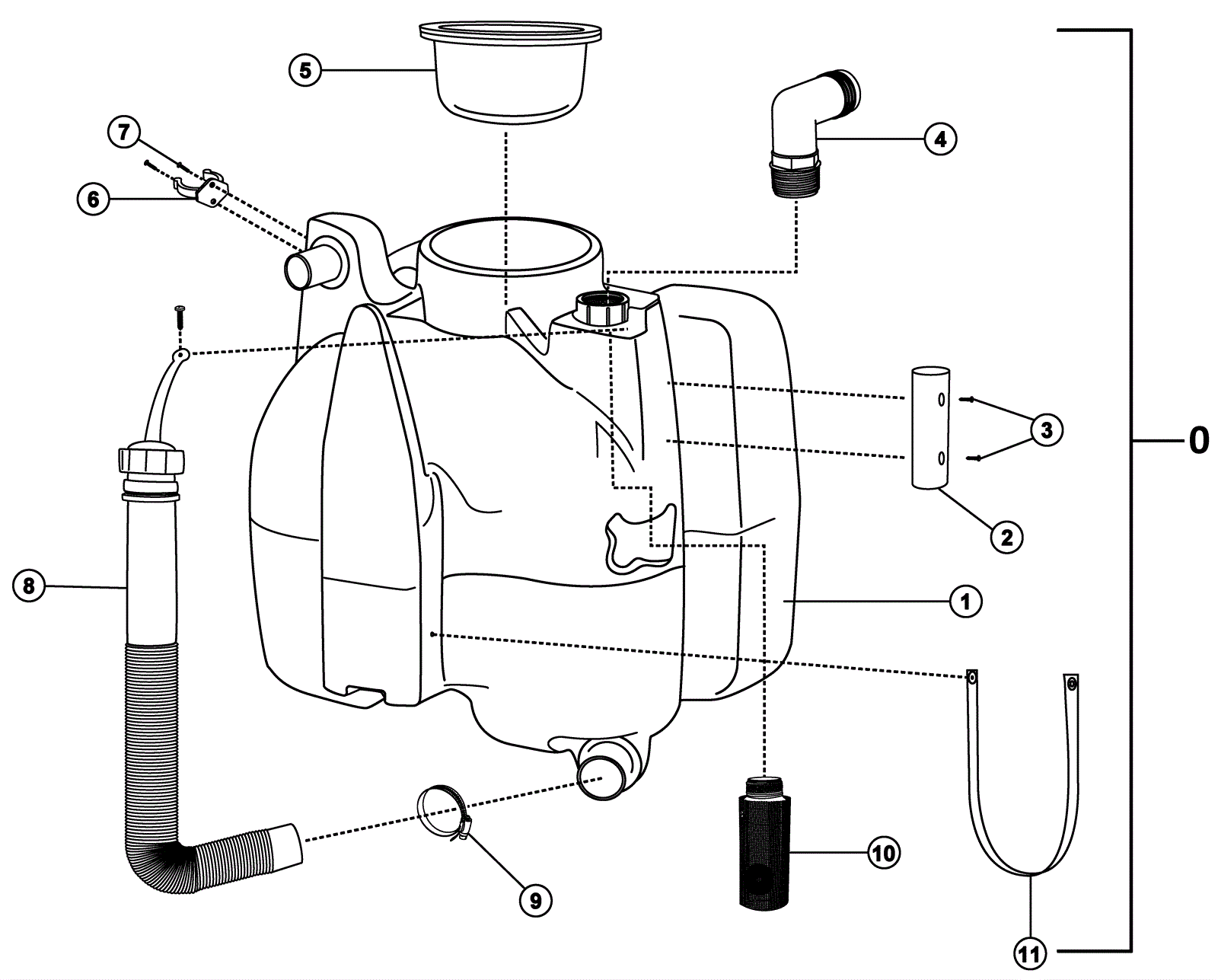

Vacuum tank assembly (green) |
1 |
|
|
1 |
225-1122
|
Cooler cleaner vacuum tank (green) |
1 |
|
|
2 |
225-1123
|
Vacuum hose connector (orange) |
1 |
|
|
3 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
2 |
|
|
4 |
225-0347
|
Hosebarb 1 1/4 x 1 1/2 inch |
1 |
|
|
5 |
225-0560
|
Jug holder vac lid assembly |
1 |
|
|
6 |
225-0015
|
Clamp #13 |
1 |
|
|
7 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
1 |
|
|
8 |
225-0335
|
Drain hose |
1 |
|
|
9 |
997-2003
|
Hose clamp |
1 |
|
|
10 |
225-0306
|
Float |
1 |
|
|
11 |
225-1124
|
22 inch snap and strap |
1 |
|
|
