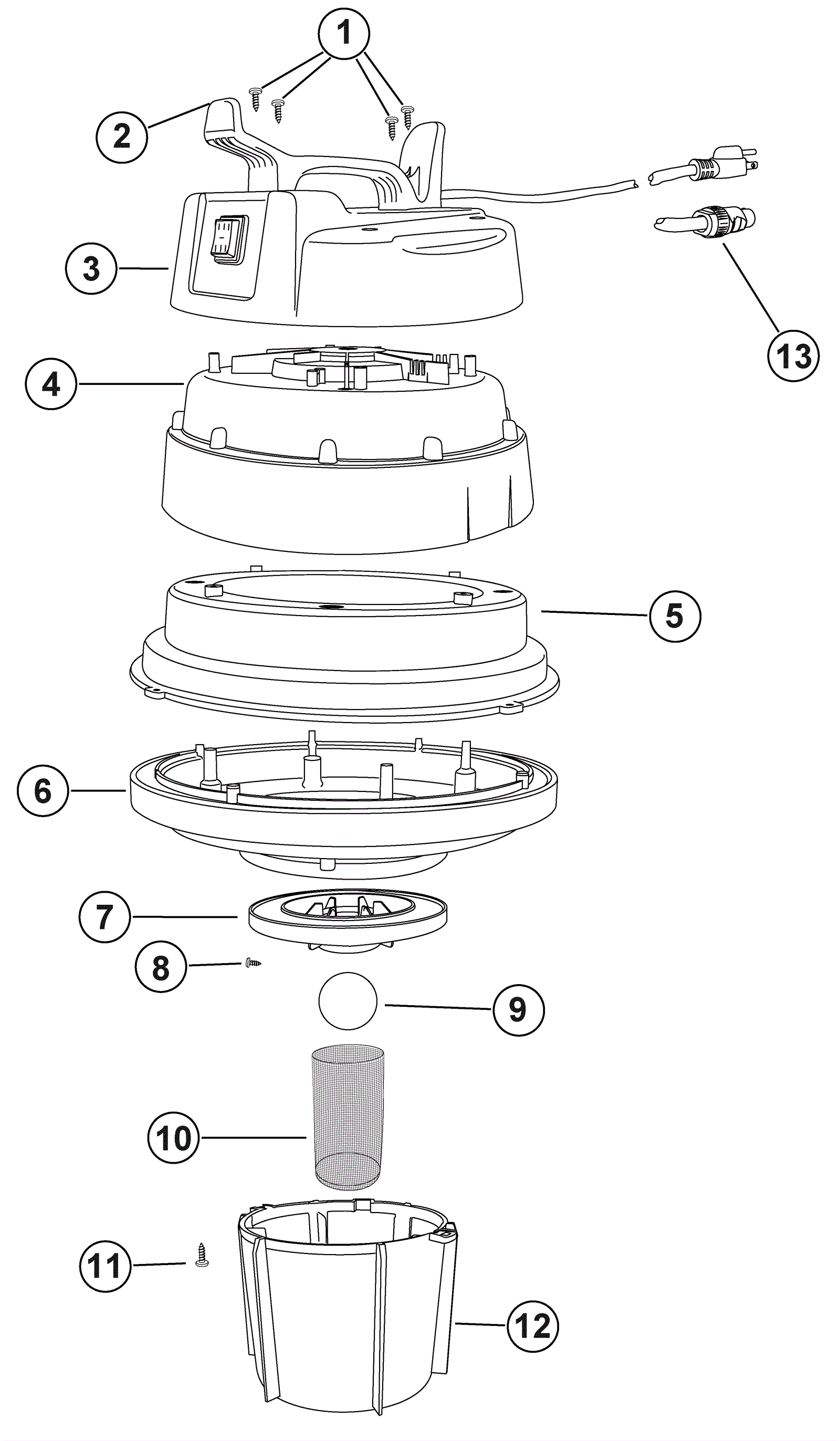

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
2 |
225-2031
|
Omniflex vac motor handle |
1 |
|
|
3 |
225-1051
|
Vacuum motor top cover |
1 |
|
|
4 |
225-1052
|
Vacuum motor middle cover |
1 |
|
|
5a |
225-1053
|
120V vacuum motor middle ring |
1 |
|
|
5b |
225-2127
|
36V vacuum motor middle ring |
1 |
|
|
6 |
225-1055
|
Vacuum motor bottom cover |
1 |
|
|
7 |
225-0611
|
Plastic float cage interface |
1 |
|
|
8 |
225-1056
|
Screw 5/6 inch |
1 |
|
|
9 |
225-0093
|
2 inch plastic ball |
1 |
|
|
10 |
225-0610
|
Float cage stainless steel |
1 |
|
|
11 |
225-1057
|
Screw #7 1/2 inch |
1 |
|
|
12 |
225-1058
|
Vacuum motor basket |
1 |
|
|
13 |
225-2005
|
36VDC 20A male plug (metal) |
1 |
|
|
