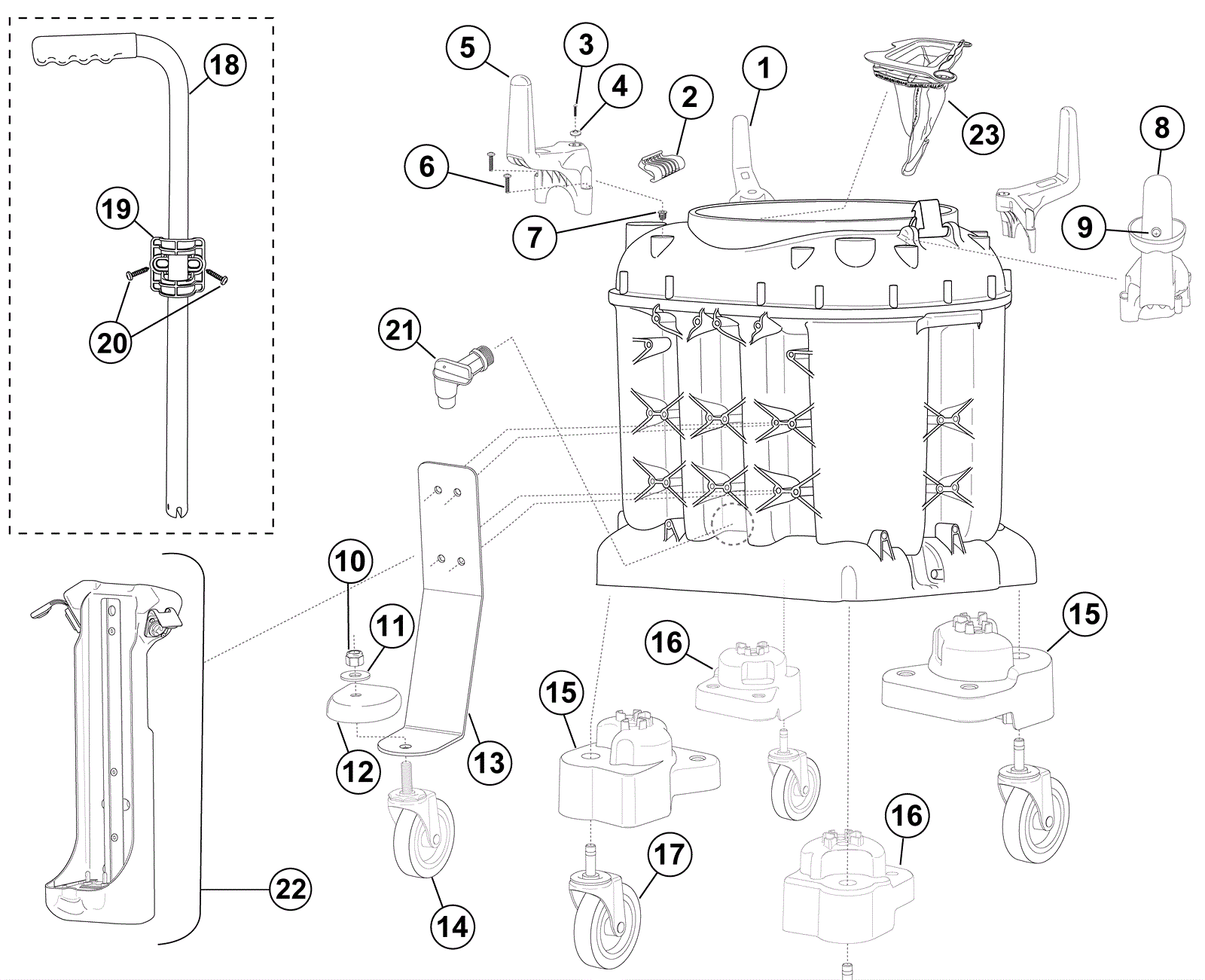

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-1038
|
Hose post |
1 |
|
|
2 |
225-2018
|
Upper omnilex clasp (yellow) |
1 |
|
|
3 |
225-0606
|
Deflector screw |
1 |
(AC ONLY) |
|
4 |
225-0494
|
Neoprene washer |
1 |
(AC ONLY) |
|
5 |
225-1041
|
Post |
1 |
|
|
6 |
999-0565
|
Screw 10 x 3/4 pan head phillips sheet metal |
2 |
(AC ONLY) |
|
7 |
225-1076
|
Insert for mold |
1 |
(AC ONLY) |
|
8 |
225-2019
|
Vac hose drip tray |
1 |
|
|
9 |
999-1544
|
Screw 8-32 x 1/2 truss head phillips stainless steel |
1 |
|
|
10 |
225-2020
|
1/2-13 SST locking nut |
1 |
(DC ONLY) |
|
11 |
999-0114
|
Washer 1/2 SAE flat |
1 |
(DC ONLY) |
|
12 |
225-2021
|
Kick guard |
1 |
(DC ONLY) |
|
13 |
225-2022
|
Outtrigger bracket |
1 |
(DC ONLY) |
|
14 |
225-2023
|
3 inch caster |
1 |
(DC ONLY) |
|
15 |
225-2024
|
Omniflex extension |
2 |
|
|
16 |
225-2025
|
Omniflex extension (leg b) |
2 |
(qty 1 on DC) |
|
17 |
225-1032
|
3 inch caster with no brake |
4 |
|
|
18 |
225-2026
|
Omniflex 1" spigot |
1 |
|
|
19 |
225-2027
|
Omniflex vac tank pigot handle bracket |
1 |
|
|
20 |
225-1082
|
Screw |
2 |
|
|
21 |
225-2028
|
Omniflex spigot (black) |
1 |
|
|
22 |
225-2029
|
Quick change interface |
1 |
|
|
23 |
225-2030
|
Mesh bag (yellow) |
1 |
|
|
N/S |
225-0044
|
Cap |
1 |
(drain hose) |
|
N/S |
225-2088
|
Dump hose |
1 |
|
|
