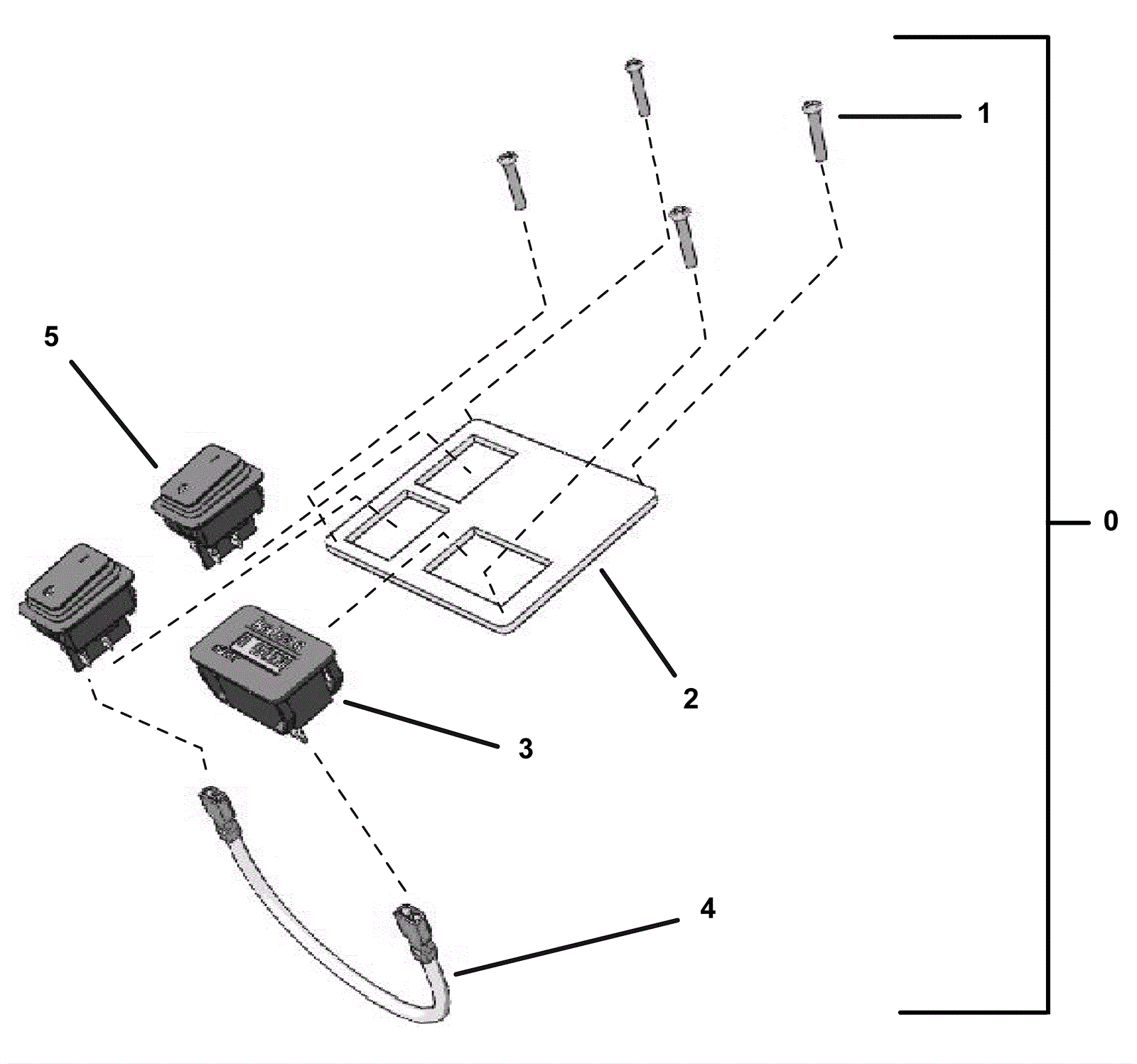

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0568
|
Switch panel assembly |
1 |
(includes 1-5) |
|
1 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
2a |
225-0573
|
Triangular switch panel |
1 |
(New style) |
|
2b |
225-1001
|
Rectangular switch panel |
1 |
(Old style) |
|
3 |
225-0287
|
Hour meter |
1 |
|
|
4 |
N/A
|
Not available |
1 |
|
|
5a |
225-0284
|
2 way rocker switch |
2 |
(Vacuum and pump before serial number 3309) |
|
5b |
225-0502
|
15amp circuit breaker switch |
1 |
(vacuum - after serial number 3309) |
|
5c |
225-0480
|
5amp circuit breaker switch |
1 |
(pump - after serial number 3309) |
|
