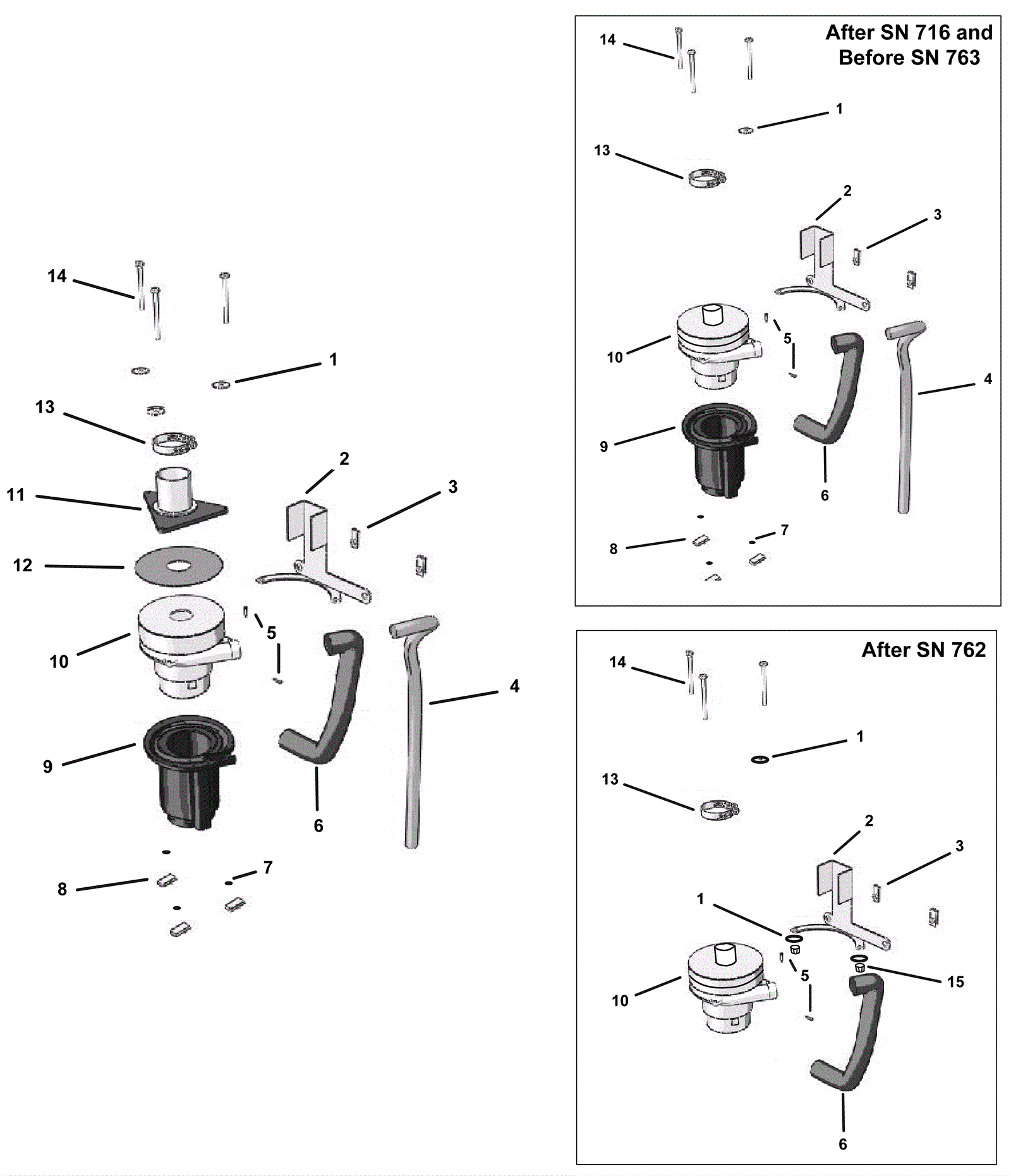

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
999-1119
|
Washer 1/4 x 1 fender zinc plated |
1 |
(before SN 717) |
|
1b |
999-0016
|
Washer 1/4 flat plain finish |
1 |
(after SN 716) |
|
2 |
225-0576
|
Vacuum motor bracket |
1 |
|
|
3 |
225-0107
|
5/16 u-nut |
2 |
|
|
4 |
N/A
|
Not available |
1 |
(Hose) (before SN 763) |
|
5 |
225-0012
|
Screw #8 self drilling |
2 |
|
|
6a |
225-0575
|
16 inch hose |
1 |
(before SN 717) |
|
6b |
N/A
|
Not available |
1 |
(Hose) (after SN 716) |
|
7 |
225-0351
|
Nut 1/2- 20 zip |
3 |
(before SN 763) |
|
8 |
225-0523
|
U-nut 1/4-20 |
3 |
(before SN 763) |
|
9a |
N/A
|
Not available |
1 |
(Cover) (before SN 717) |
|
9b |
N/A
|
Not available |
1 |
(Cover) (after SN 716 and before SN 763) |
|
10a |
225-0045
|
120V vacuum motor without inlet tube |
1 |
(before SN 717) |
|
10b |
225-0388
|
120V 3 stage vacuum motor with gasket |
1 |
(after SN 716 and before SN 763 and after SN1303) |
|
10c |
N/A
|
Not available |
1 |
(Vacuum motor) (after SN 762 and before SN 1304) |
|
11 |
225-0188
|
Gasket |
1 |
(after SN 717) |
|
12 |
N/A
|
Not available |
1 |
(Gasket) (after SN 717) |
|
13 |
997-2003
|
Hose clamp |
1 |
|
|
14 |
999-1126
|
Bolt 1/4-20 x 5 hex head hot dipped galvanized |
3 |
|
|
15 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
1 |
(after SN 762) |
|
