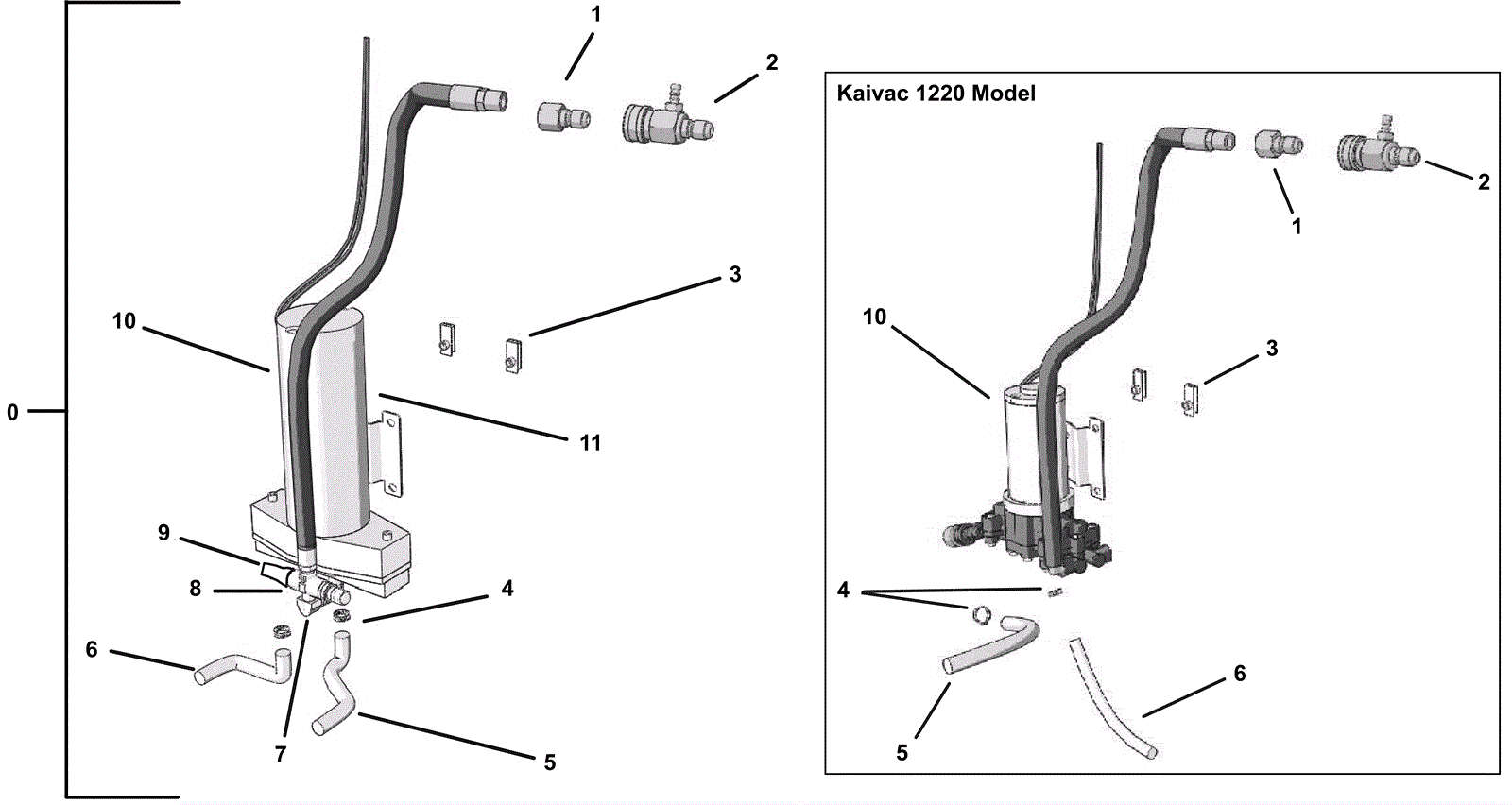

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
225-0485
|
500 PSI pump assembly |
1 |
(1250) (includes 1-10a and 11) |
|
0b |
225-0333
|
500PSI pump assembly |
1 |
(1250 series 217V*110/M9253F) |
|
0c |
225-0569
|
Pump assembly (OBSOLETE) |
1 |
(1220) (includes 1-6 and 10b) |
|
1 |
225-0230
|
3/8 inch male plug |
1 |
|
|
2a |
225-0229
|
Quick connect injector |
1 |
(OEM) |
|
2b |
991-7129
|
Quick connect injector |
1 |
(NON-OEM) |
|
3 |
225-0107
|
5/16 u-nut |
2 |
|
|
4 |
225-0165
|
Hose clamp |
2 |
|
|
5 |
225-0570
|
16 inch return water line |
1 |
|
|
6 |
225-0571
|
16 inch inlet water line |
1 |
|
|
7 |
225-0118
|
Tie wrap |
1 |
|
|
8a |
225-0061
|
Unloader/check valve |
1 |
(OEM) |
|
8b |
991-7121
|
Unloader valve |
1 |
(NON-OEM) |
|
9 |
225-0344
|
Hose barb 3/8 inch brass |
1 |
|
|
10a |
225-0537
|
Pump head |
1 |
(1250) |
|
10b |
N/A
|
Not available |
1 |
(1220) (pump motor and head) |
|
11 |
225-0421
|
Pump motor |
1 |
(1250) (motor, bracket, and rectifier only) |
|
