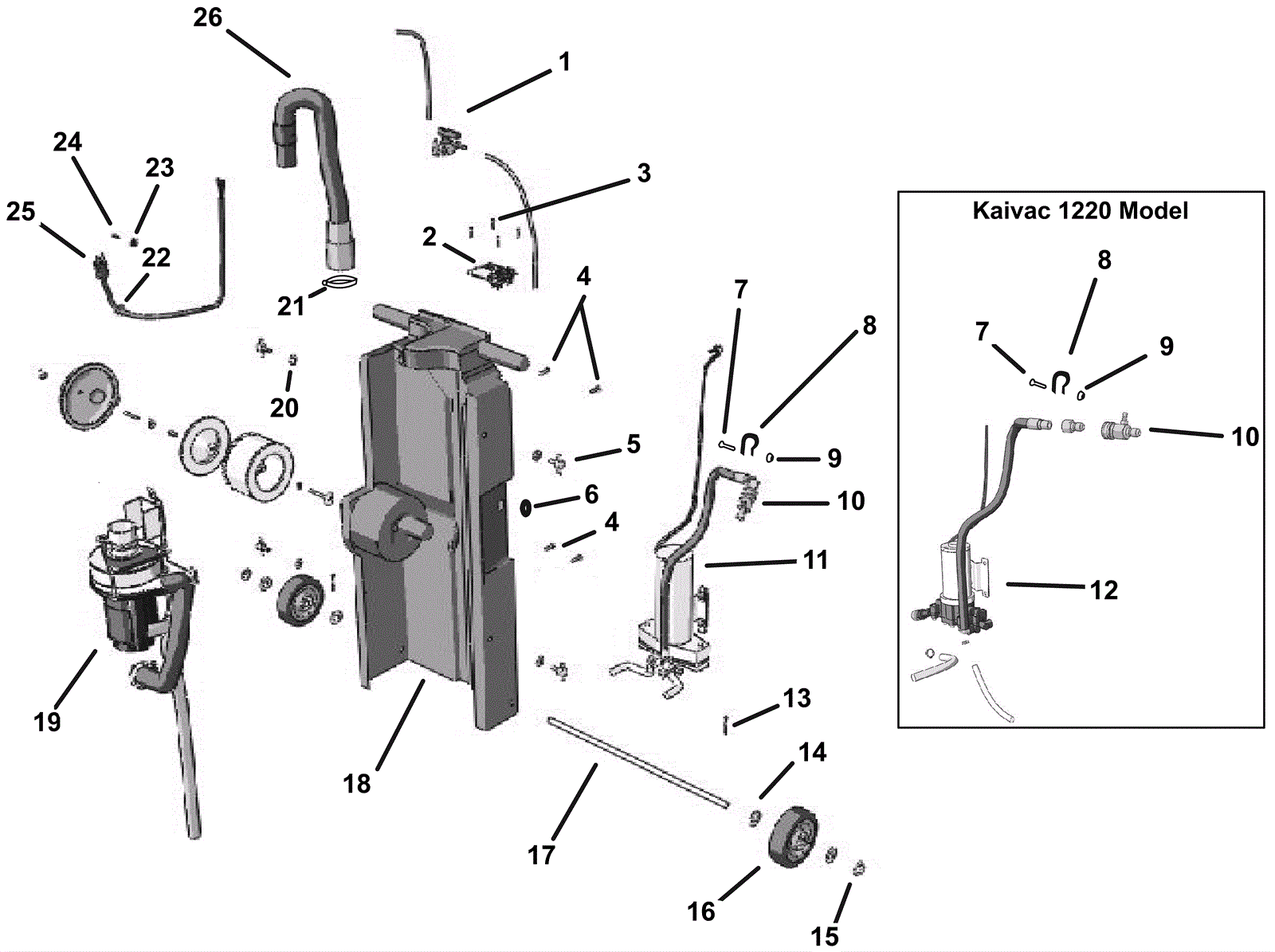

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0656
|
2 way valve assembly |
1 |
|
|
2 |
225-0568
|
Switch panel assembly |
2 |
|
|
3 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
4 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
5 |
225-0330
|
Thumb screw |
1 |
|
|
6 |
N/A
|
Not available |
1 |
(Rubber grommet) |
|
7 |
N/A
|
Not available |
1 |
(Screw) |
|
8 |
225-0262
|
Rubber loop strap |
1 |
|
|
9 |
225-0487
|
Acorn nut |
1 |
|
|
10a |
225-0229
|
Quick connect injector |
1 |
(OEM) |
|
10b |
991-7129
|
Quick connect injector |
1 |
(NON-OEM) |
|
11 |
225-0485
|
500 PSI pump assembly |
1 |
|
|
12 |
225-0569
|
Pump assembly (OBSOLETE) |
1 |
|
|
13 |
225-0235
|
Cotter pin |
2 |
|
|
14 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
15 |
225-0157
|
Nut 1/2 push cap |
2 |
|
|
16 |
225-0558
|
Thermoplastic urethane wheel 5 x 1 1/2 inch |
2 |
|
|
17 |
225-0557
|
Axle 19 3/4 x 1/2 inch |
1 |
|
|
18 |
N/A
|
Not available |
1 |
(Black box body) |
|
19 |
225-0536
|
Vacuum motor assembly |
1 |
|
|
20 |
999-0034
|
Washer 3/8 split lock plain finish |
1 |
|
|
21 |
997-2003
|
Hose clamp |
1 |
|
|
22 |
N/A
|
Not available |
1 |
(Rubber grommet) |
|
23 |
225-0176
|
3/8 inch cable clamp |
1 |
|
|
24 |
225-0012
|
Screw #8 self drilling |
1 |
|
|
25 |
225-0375
|
12/3 pigtail cord with plug 22 inch |
1 |
|
|
26 |
225-0474
|
Vacuum motor hose |
1 |
|
|
