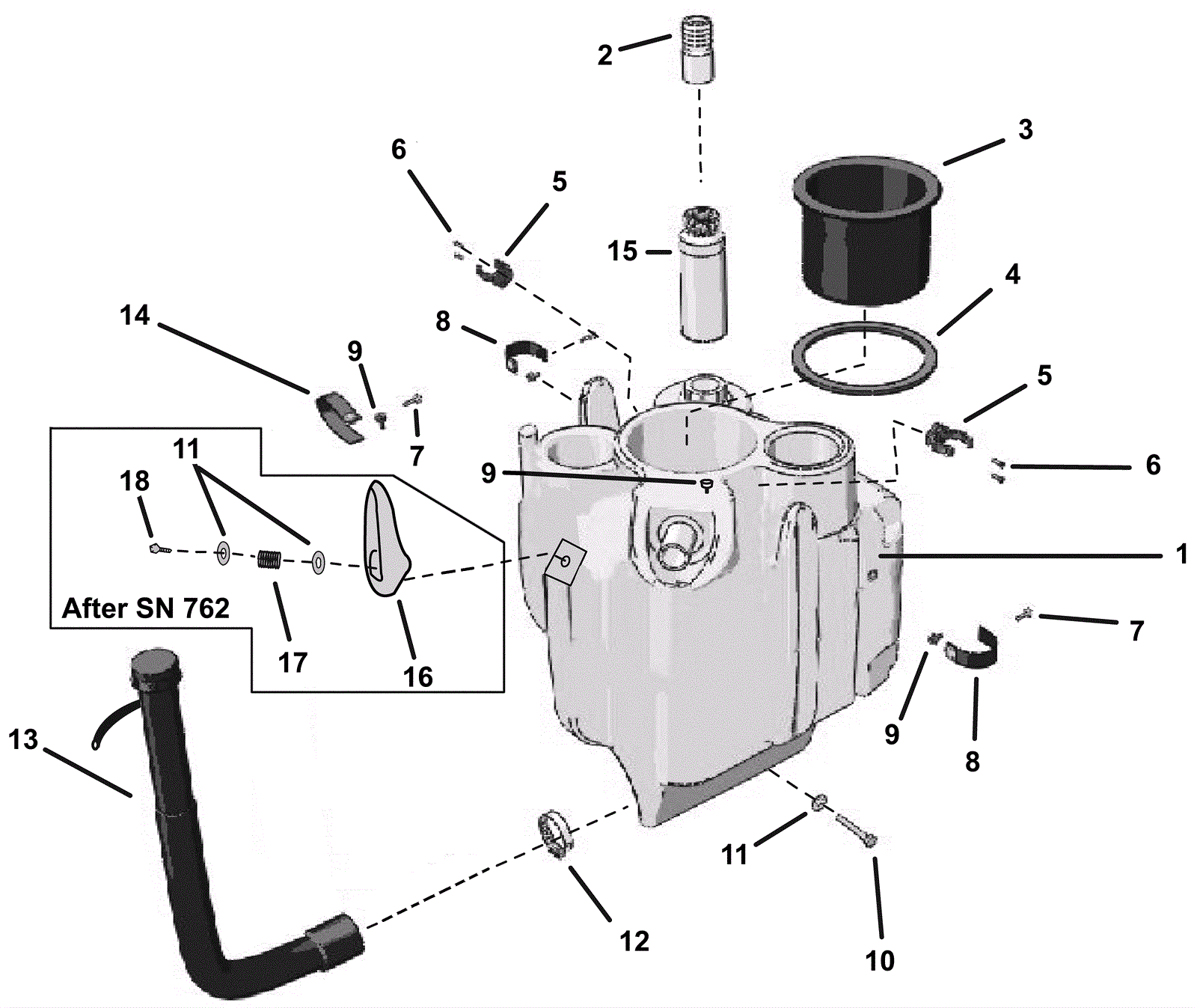

Vacuum Tank Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (vacuum tank)
2 225-0473 Hose adapter 1
3 225-0560 Jug holder vac lid assembly 1
4 225-0236 Tank lid gasket 1
5 225-0015 Clamp #13 2
6 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 2
7 225-0012 Screw #8 self drilling 2
8 225-0282 9 inch strap 2
9 225-0014 Snap stud 3
10 999-0638 Bolt 3/8-16 x 2 1/4 hex head 1
11 999-0032 Washer 3/8 USS flat plain finish 3
12 997-2003 Hose clamp 1
13 225-0335 Drain hose 1
14 225-0567 7 inch vacuum wand strap 1
15 225-0306 Float 1
16 225-0544 Horn 1
18 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 1
