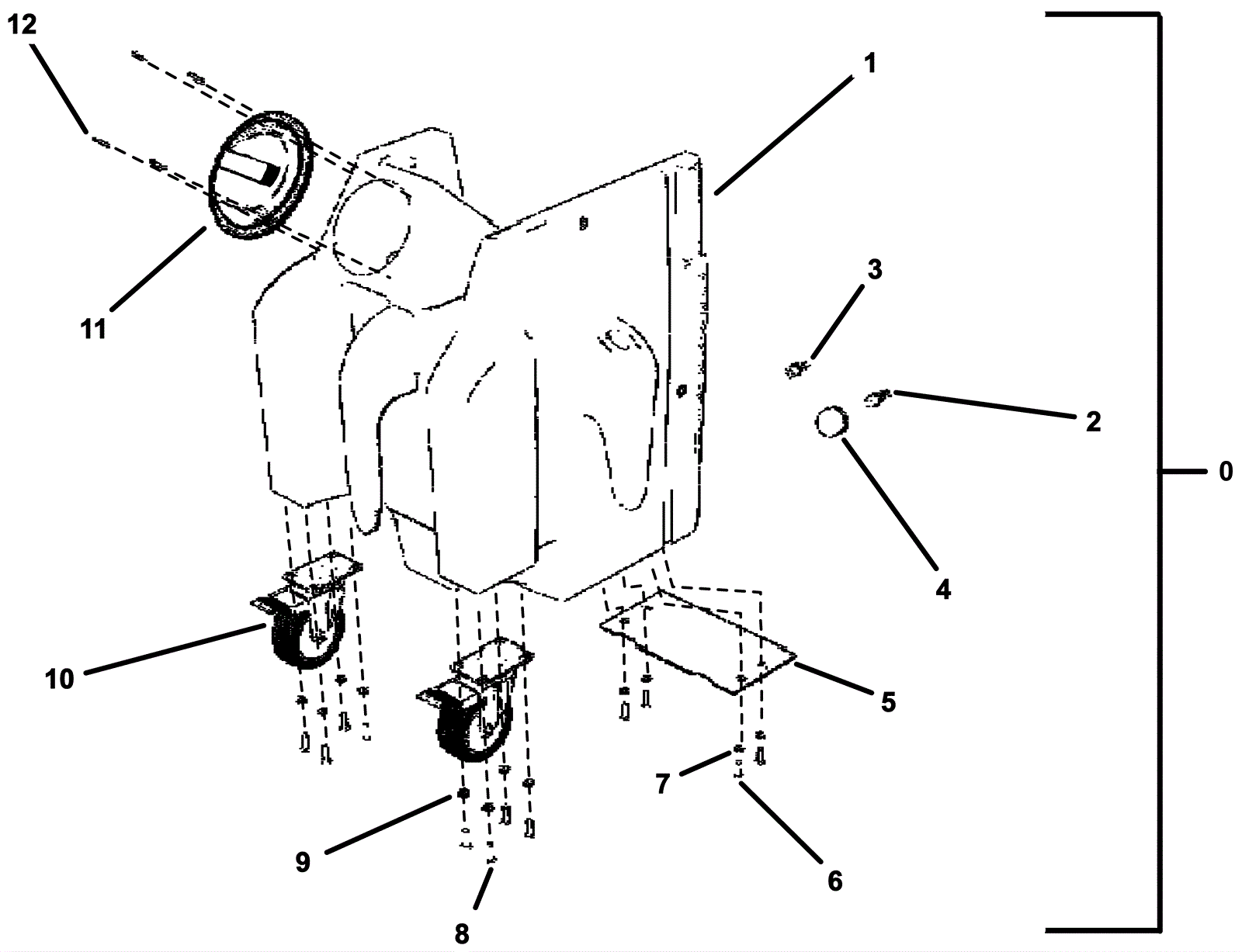

Water Tank Assembly

#PartDescription ReqNotesAvailability
0 225-0565 Water tank assembly 1 (includes 1-12)
1 N/A Not available 1 (water tank)
2 225-0241 Hose barb 3/8 x 1/2 inch 1 (water line)
3 225-0344 Hose barb 3/8 inch brass 1 (return line)
4 225-0331 Water line filter 1
5 225-0566 Bottom cover plate 1
6 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
7 999-0016 Washer 1/4 flat plain finish 4
8 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
9 999-0028 Washer 5/16 split lock plain finish 8
10 225-0556 Caster wheel 2
11 225-0343 4 inch lid 1
12 225-0145 Screw 3/4 inch stainless steel 4
