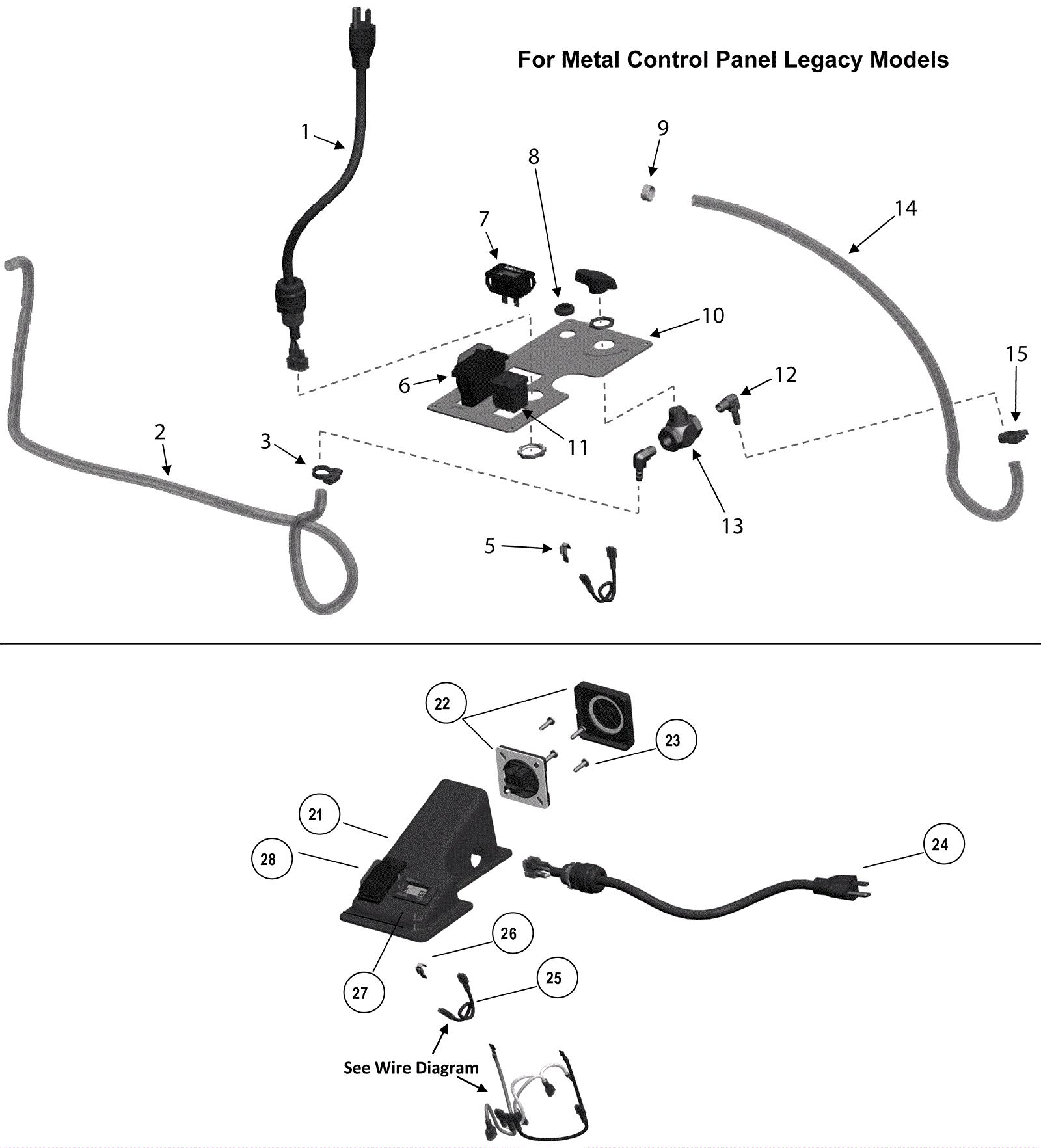

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0518
|
Power cord with strain relief |
1 |
|
|
2 |
225-0403
|
Braided hose 1/4 inch x 2 ft |
1 |
|
|
3 |
225-0181
|
Clamp |
1 |
|
|
5 |
225-0286
|
Quick connect terminal |
1 |
|
|
6 |
225-0480
|
5amp circuit breaker switch |
1 |
|
|
7 |
225-0287
|
Hour meter |
1 |
|
|
8 |
225-0520
|
Rubber grommet |
1 |
|
|
9 |
225-0082
|
Hose clamp |
1 |
|
|
10 |
225-0521
|
Chemical switch panel |
1 |
|
|
11 |
225-0522
|
Single electric receptacle (black) (OBSOLETE) |
1 |
|
|
12 |
225-0075
|
90 degree 1/8 inch male fitting |
2 |
|
|
13a |
225-0192
|
2 way brass valve viton seals 1/8 x 1/8 |
1 |
(includes 13b) |
|
13b |
225-0084
|
Knob (black) |
1 |
|
|
14 |
225-0403
|
Braided hose 1/4 inch x 2 ft |
1 |
|
|
15 |
225-0181
|
Clamp |
1 |
|
|
21 |
225-1116
|
Universal water resistant switch panel |
1 |
|
|
22 |
225-1095
|
36V 20amp female receptacle |
1 |
|
|
23 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
24 |
225-0518
|
Power cord with strain relief |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(jumper wire) |
|
26 |
225-0286
|
Quick connect terminal |
1 |
|
|
27 |
225-0287
|
Hour meter |
1 |
|
|
28 |
225-0480
|
5amp circuit breaker switch |
1 |
|
|
