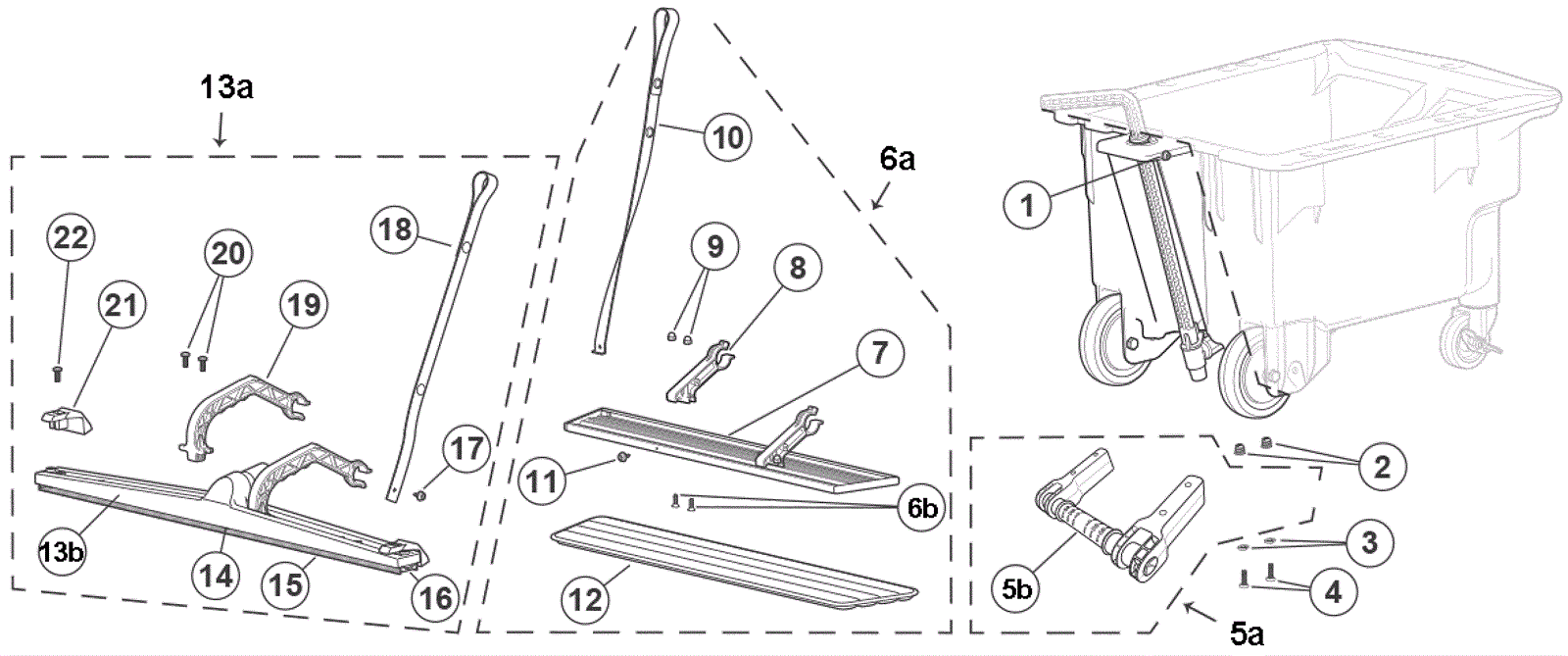

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0014
|
Snap stud |
1 |
|
|
2 |
225-0137
|
1/4 insert |
2 |
|
|
3 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
4 |
225-0637
|
Screw 1/4-20 |
2 |
|
|
5a |
225-0626
|
Autovac hitch assembly |
1 |
(includes 5b) |
|
5b |
225-0591
|
Autovac plastic arm hitch (yellow) |
1 |
|
|
6a |
225-0599
|
Autovac spreader assembly |
1 |
(includes 6b-12) |
|
6b |
225-0643
|
Arm mounting screw |
2 |
|
|
7 |
225-0642
|
Microfiber pad holder 18 inch |
1 |
|
|
8 |
225-0638
|
Arm |
1 |
|
|
9 |
225-0116
|
Acorn nut |
2 |
|
|
11 |
225-0014
|
Snap stud |
1 |
|
|
12 |
225-0619
|
26.5 inch universal wet mop pad (pkg of 5) |
1 |
|
|
13a |
225-2046
|
Vacuum assembly |
1 |
(includes 13b-22) |
|
13b |
225-0434
|
28 inch squeegee assembly |
1 |
|
|
14 |
225-0071
|
Stainless steel squeegee wheel with holder |
1 |
|
|
15 |
225-0065
|
Squeegee blade 14 1/4 inch |
1 |
|
|
16 |
225-0654
|
Stainless steel wheel and cap assembly |
1 |
|
|
17 |
225-0014
|
Snap stud |
1 |
|
|
18 |
225-2048
|
Snap strap |
1 |
|
|
19 |
225-0590
|
Autovac vacuum arm |
1 |
|
|
20 |
225-0644
|
Screw #12-24 x 5/8 |
2 |
|
|
21 |
225-0639
|
Vacuum plow |
1 |
|
|
22 |
225-0644
|
Screw #12-24 x 5/8 |
1 |
|
|
N/S |
225-2122
|
Vacuum hose stretch 15 feet |
1 |
|
|
