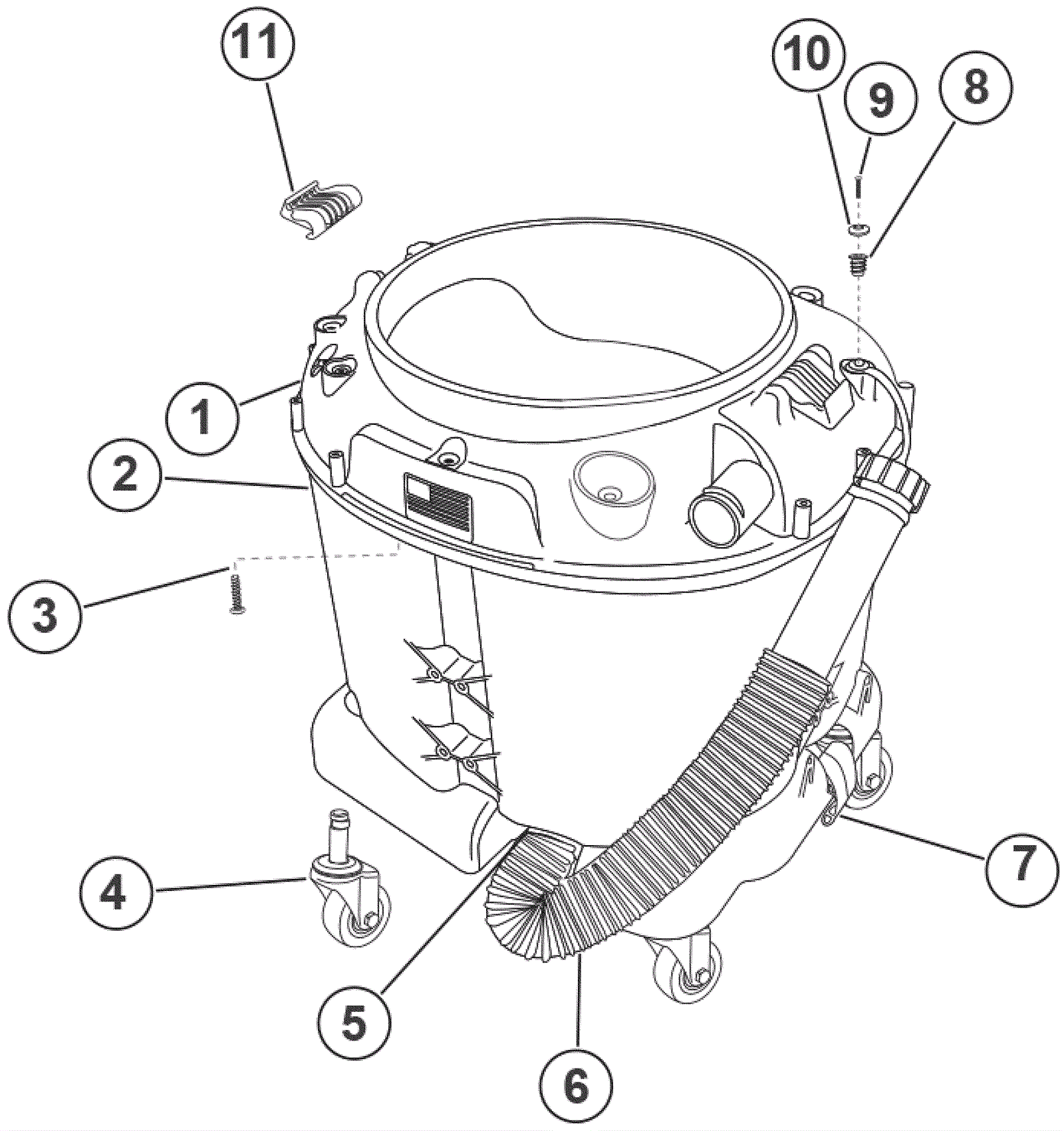

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0646
|
Vacuum tank assembly (black) |
1 |
|
|
2a |
225-1034
|
Bottom vacuum tank |
1 |
|
|
2b |
225-2044
|
Vacuum tank bottom (yellow) |
1 |
|
|
3 |
225-1035
|
Screw 8 x 3/4 |
1 |
|
|
4 |
225-1036
|
2 inch caster |
4 |
|
|
5 |
997-2003
|
Hose clamp |
1 |
|
|
6 |
225-0335
|
Drain hose |
1 |
|
|
7 |
225-2045
|
Lower clasp (yellow) |
1 |
|
|
8 |
225-1076
|
Insert for mold |
1 |
|
|
9 |
225-0606
|
Deflector screw |
1 |
|
|
10 |
225-0494
|
Neoprene washer |
1 |
|
|
11 |
225-2018
|
Upper omnilex clasp (yellow) |
1 |
|
|
