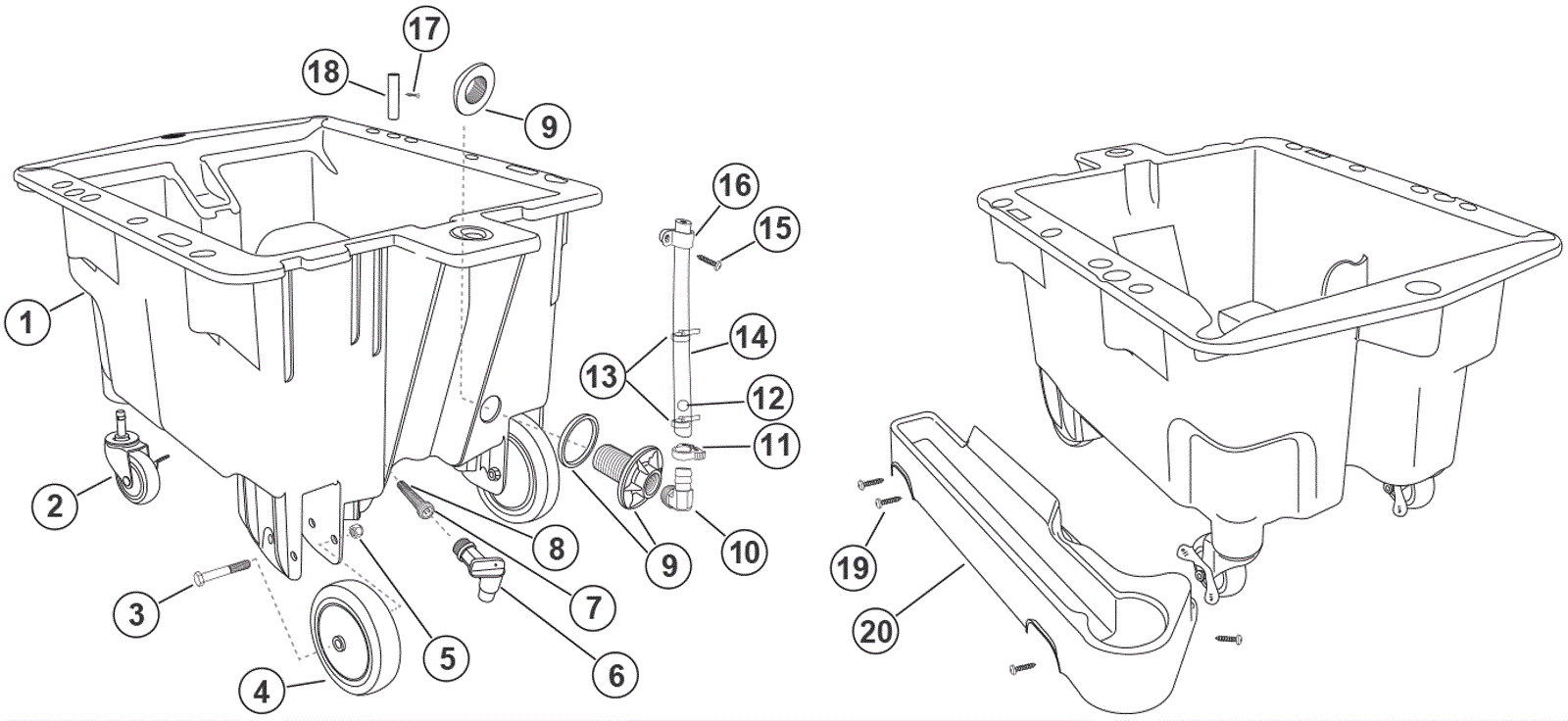

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-1020
|
Omniflex trolley - bucket |
1 |
|
|
2a |
225-0486
|
Locking caster |
2 |
|
|
2b |
225-1032
|
3 inch caster with no brake |
2 |
|
|
3 |
999-0686
|
Bolt 3/8-16 x 2 3/4 hex head stainless steel |
2 |
|
|
4 |
225-0491
|
5 inch wheel |
2 |
|
|
5 |
999-1482
|
Nut 3/8-16 nylon lock stainless steel |
2 |
|
|
6 |
225-1030
|
2 hole spigot assembly (brown) |
1 |
|
|
7 |
225-0305
|
O-ring for 3/8 inch qd coupler |
1 |
|
|
8 |
225-0055
|
Finger filter |
1 |
|
|
9 |
225-1023
|
1/2 inch fitting (grey) |
2 |
|
|
10 |
225-1024
|
90 degree brass fitting |
1 |
|
|
11 |
225-0617
|
Clamp |
1 |
|
|
12 |
225-2041
|
10mm plastic ball (red) |
1 |
|
|
13 |
225-2042
|
Ties (yellow) |
2 |
|
|
14 |
225-1025
|
9 inch sight tube |
1 |
|
|
15 |
999-1544
|
Screw 8-32 x 1/2 truss head phillips stainless steel |
1 |
|
|
16 |
225-0618
|
Tie down |
1 |
|
|
17 |
225-0145
|
Screw 3/4 inch stainless steel |
1 |
|
|
18 |
225-1026
|
Trolley post |
1 |
|
|
19 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
20 |
225-1027
|
Side tray |
1 |
|
|
