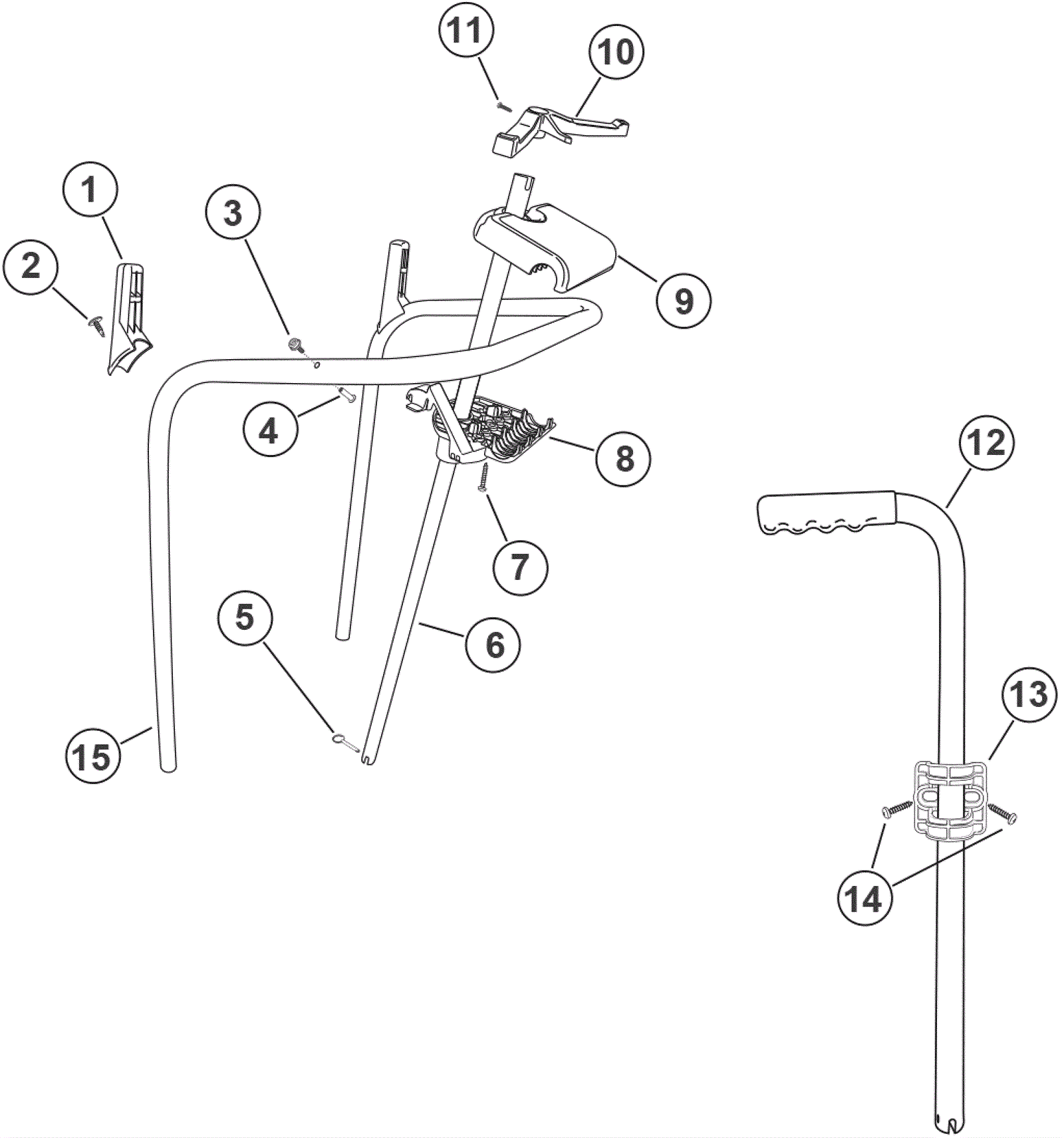

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
225-0497
|
Handle grip |
1 |
|
|
2 |
999-1544
|
Screw 8-32 x 1/2 truss head phillips stainless steel |
1 |
|
|
3 |
225-0353
|
Male snap |
1 |
|
|
4 |
225-1079
|
Female binding post |
1 |
|
|
5 |
225-1080
|
Ring pin |
1 |
|
|
6 |
225-1081
|
Throttle extension rod |
1 |
|
|
7 |
225-1082
|
Screw |
1 |
|
|
8 |
225-1083
|
Lower platform |
1 |
|
|
9 |
225-1084
|
Throttle platform |
1 |
|
|
10 |
225-1085
|
Throttle |
1 |
|
|
11 |
225-1019
|
Screw |
1 |
|
|
12 |
225-2026
|
Omniflex 1" spigot |
1 |
|
|
13 |
225-2027
|
Omniflex vac tank pigot handle bracket |
1 |
|
|
14 |
225-1082
|
Screw |
2 |
|
|
15 |
225-0496
|
26 inch U handle assembly with posts |
1 |
|
|
