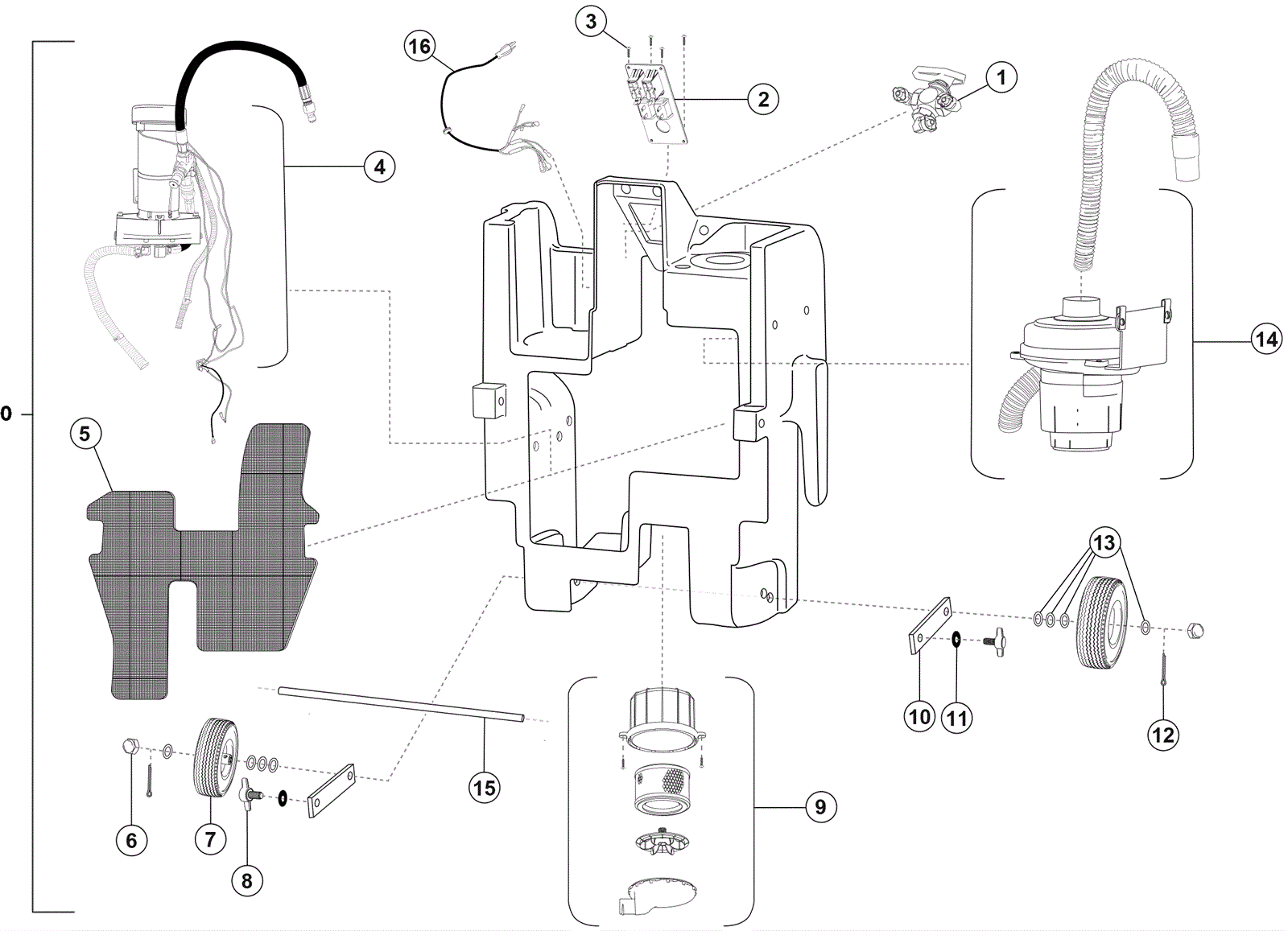

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0752
|
Black box assembly |
1 |
(includes 1-7, 9-10, 12-16) |
|
1 |
225-0633
|
3 way valve assembly |
1 |
|
|
2a |
225-0341
|
Dual chemical control panel |
1 |
|
|
2b |
225-0766
|
Switch panel |
1 |
(ETL) |
|
3 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
4a |
225-0332
|
Complete pump assembly |
1 |
|
|
4b |
225-0761
|
Pump assembly |
1 |
(ETL) |
|
4c |
225-0762
|
Pump assembly complete |
1 |
|
|
4d |
225-0687
|
Pump assembly |
1 |
|
|
5 |
225-0763
|
Splash plate |
1 |
|
|
6 |
225-0157
|
Nut 1/2 push cap |
2 |
|
|
7 |
225-0379
|
8 inch wheel |
2 |
|
|
8 |
225-0330
|
Thumb screw |
1 |
|
|
9 |
225-0670
|
HEPA housing assembly |
2 |
|
|
10 |
225-0381
|
Axle strap |
2 |
|
|
11 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
12 |
225-0235
|
Cotter pin |
2 |
|
|
13 |
999-0114
|
Washer 1/2 SAE flat |
8 |
|
|
14 |
225-2123
|
240V vacuum motor |
1 |
|
|
15 |
225-0378
|
Axle 20 1/2 x 1/2 inch |
1 |
|
|
16a |
225-0375
|
12/3 pigtail cord with plug 22 inch |
1 |
|
|
16b |
225-0765
|
Molded power cord with grommet and twistlock |
1 |
|
|
