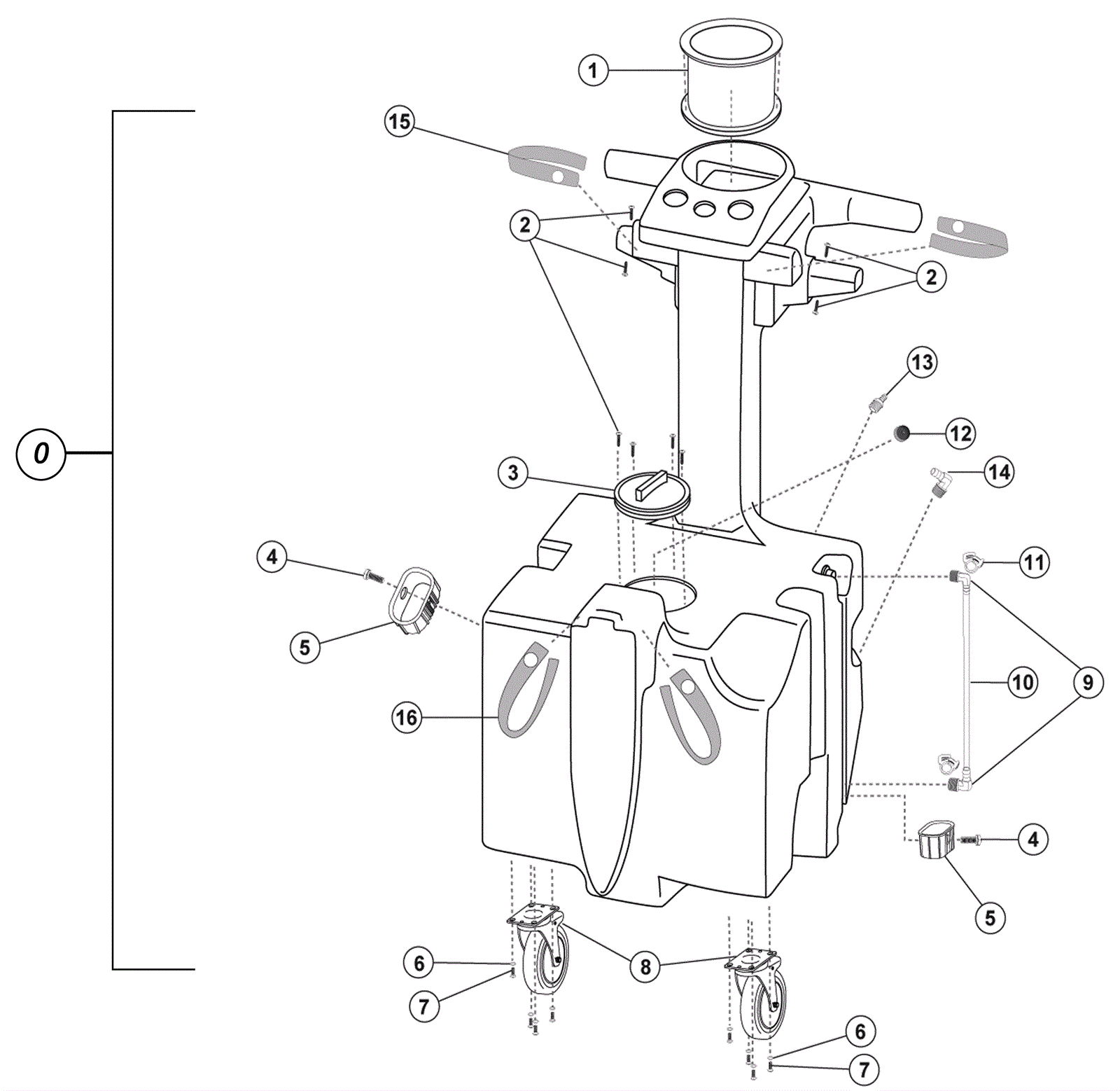

Water Tank Assembly

#PartDescription ReqNotesAvailability
0 225-0755 Water tank assembly 1 (includes 1-15)
1 225-0560 Jug holder vac lid assembly 1
2 225-0145 Screw 3/4 inch stainless steel 4
3 225-0343 4 inch lid 1
4 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
5 225-0507 Cup 2
6 999-0028 Washer 5/16 split lock plain finish 10
7 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
8 225-0255 5 inch caster wheel 2
9 225-0369 90 degree hose barb 3/8 inch 2
10 225-0682 13 inch sight tube 1
11 225-0181 Clamp 2
12 225-0331 Water line filter 1
13 225-0344 Hose barb 3/8 inch brass 1
14 225-0345 90 degree hose barb 3/8 inch 1
15a 225-0348 4 inch snap and strap 2
15b 225-0352 6 inch snap and strap 2
N/S 225-0236 Tank lid gasket 1
N/S 225-2013 Water tank assembly 1
N/S 225-0012 Screw #8 self drilling 3
N/S 225-0255 5 inch caster wheel 2
N/S 225-0684 Figure 8 decal 1
N/S 225-0685 Washer 9/16 external tooth lock 2
