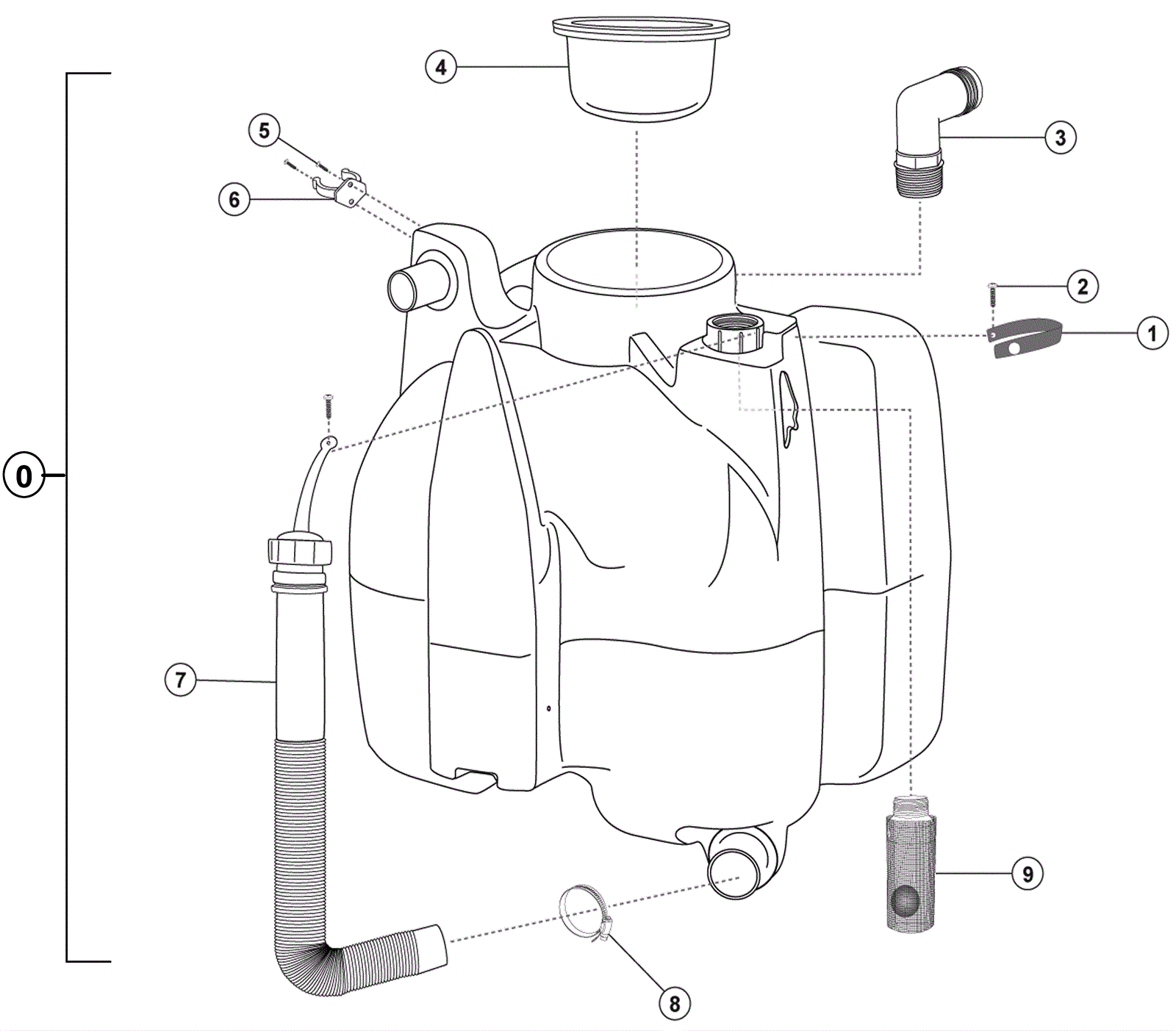

Vacuum Tank Assembly

#PartDescription ReqNotesAvailability
0a 225-1179 Vacuum tank assembly (yellow) 1 (includes 1-9)
0b 225-0753 Vacuum tank assembly (blue) 1 (includes 1-9)
1 225-0349 11 inch snap and strap 1
2 225-0014 Snap stud 4
3 225-0347 Hosebarb 1 1/4 x 1 1/2 inch 1
4 225-0560 Jug holder vac lid assembly 1
5 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 2
6 225-0015 Clamp #13 1
7 225-0335 Drain hose 1
8 997-2003 Hose clamp 1
9 225-0306 Float 1
N/S 225-0236 Tank lid gasket 1
N/S 225-0677 Vacuum tank 1
N/S 225-0501 Brass insert 2
N/S 225-0353 Male snap 2
N/S 225-0679 Cleaning system decal (OBSOLETE) 1
N/S 225-0680 NFSI decal 1
N/S 225-0681 Assembled in America decal 1
