| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

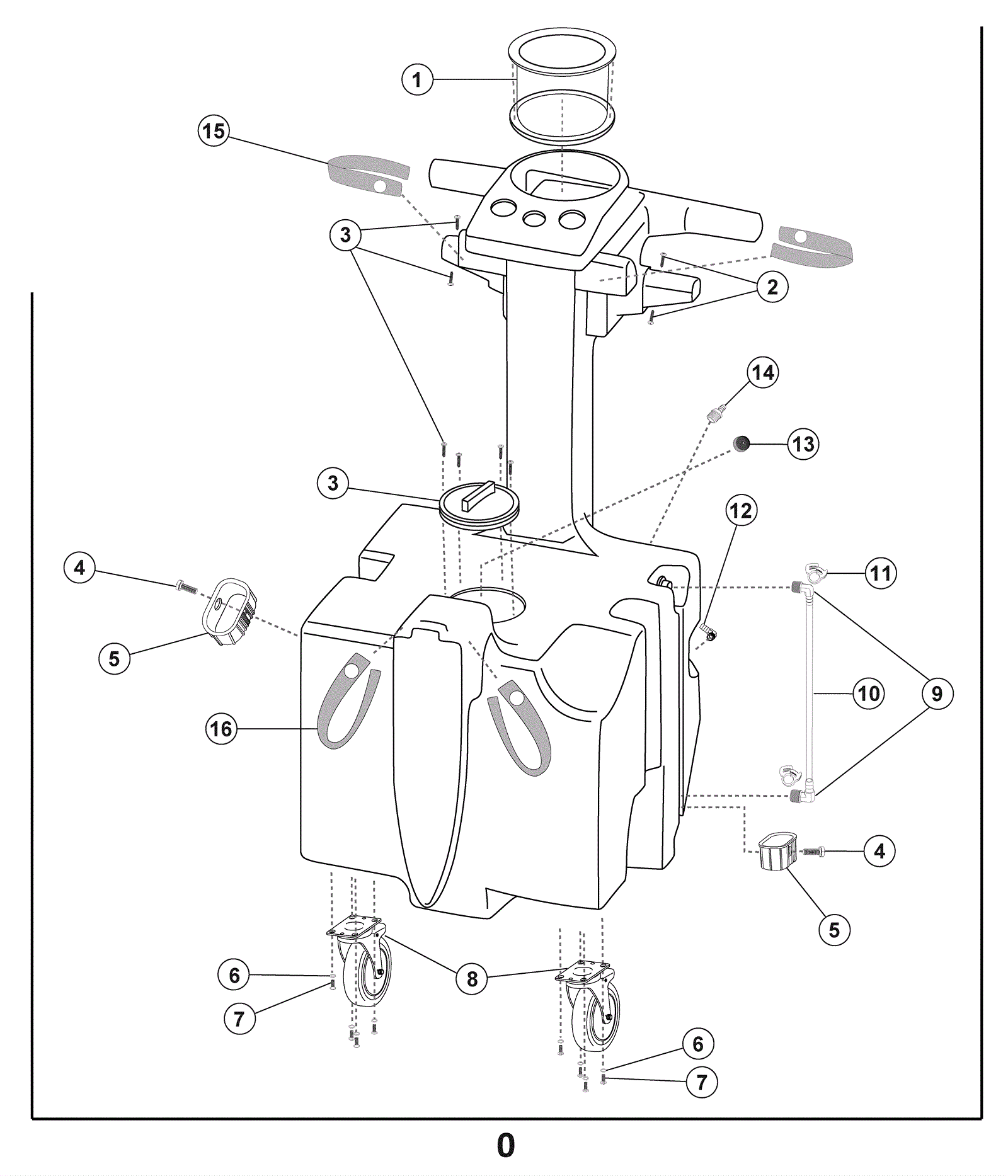

225-1103
|
Solution tank assembly |
|
(includes 1-16) |
|
1 |
225-0560
|
Jug holder vac lid assembly |
|
|
|
2 |
225-0145
|
Screw 3/4 inch stainless steel |
|
|
|
3 |
225-0343
|
4 inch lid |
|
|
|
4 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
|
|
|
5 |
225-0507
|
Cup |
|
|
|
6 |
999-0028
|
Washer 5/16 split lock plain finish |
|
|
|
7 |
999-0225
|
Screw 5/16-18 x 1 button head socket plain finish |
|
|
|
8 |
225-0251
|
Caster plate |
|
|
|
9 |
225-0369
|
90 degree hose barb 3/8 inch |
|
|
|
10 |
225-1104
|
Tube |
|
|
|
11 |
225-0181
|
Clamp |
|
|
|
12 |
225-0345
|
90 degree hose barb 3/8 inch |
|
|
|
13 |
225-0331
|
Water line filter |
|
|
|
14 |
225-0344
|
Hose barb 3/8 inch brass |
|
|
|
15 |
225-0348
|
4 inch snap and strap |
|
|
|
16 |
225-0567
|
7 inch vacuum wand strap |
|
|
|
