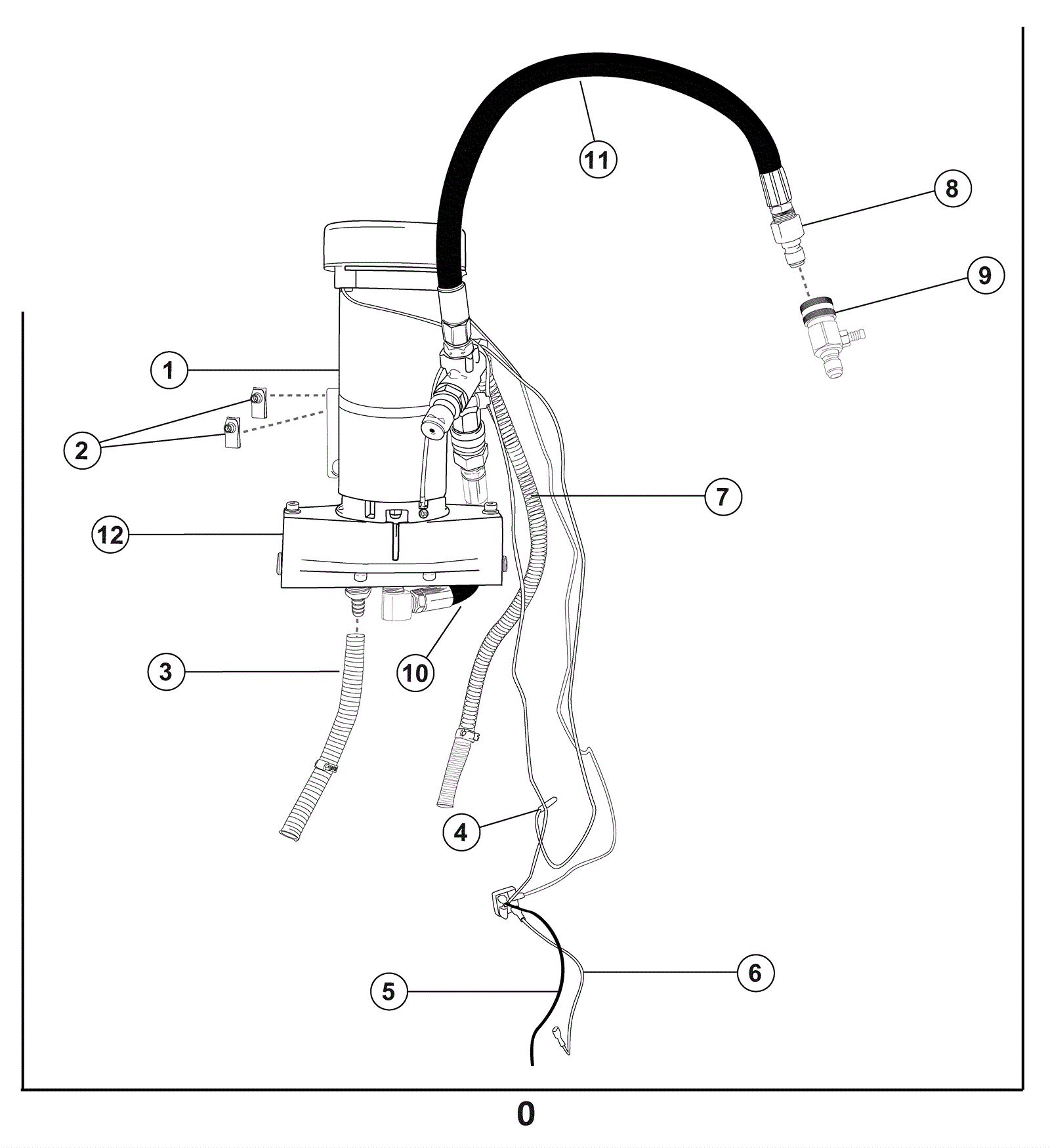

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0332
|
Complete pump assembly |
|
(includes 1-8,10-12) |
|
1a |
225-0332
|
Complete pump assembly |
|
|
|
1b |
225-0421
|
Pump motor |
|
|
|
2 |
225-0107
|
5/16 u-nut |
|
|
|
3 |
225-0524
|
Water line |
|
|
|
4 |
225-0355
|
Contactor |
|
|
|
5 |
225-0372
|
Jumper wire (black) |
|
|
|
6 |
225-0371
|
Jumper wire (white) |
|
|
|
7 |
225-0570
|
16 inch return water line |
|
|
|
8 |
225-0230
|
3/8 inch male plug |
|
|
|
9 |
225-0229
|
Quick connect injector |
|
|
|
10 |
225-0105
|
8 inch hose |
|
|
|
11 |
225-0058
|
Pulse hose |
|
|
|
12 |
225-0537
|
Pump head |
|
|
|
