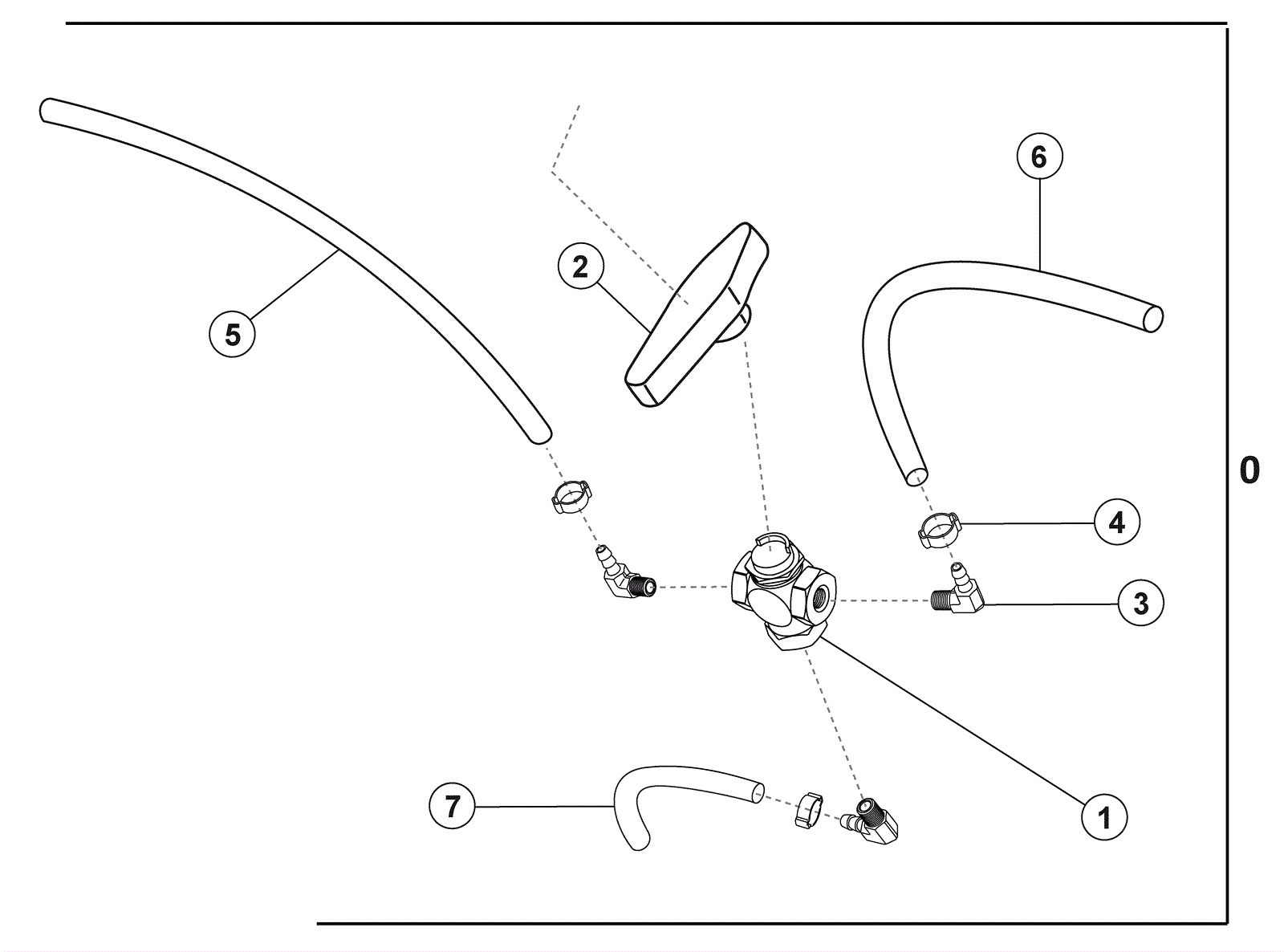

Valve Assembly

#PartDescription ReqNotesAvailability
1 225-0076 3 way chemical valve with knob
2 225-0084 Knob (black)
3 225-0075 90 degree 1/8 inch male fitting
4 225-0082 Hose clamp
6 225-0574 18 inch chemical hose
7 225-0367 9 inch hose
