| # | Part | Description |
Req | Notes | Availability |
|---|

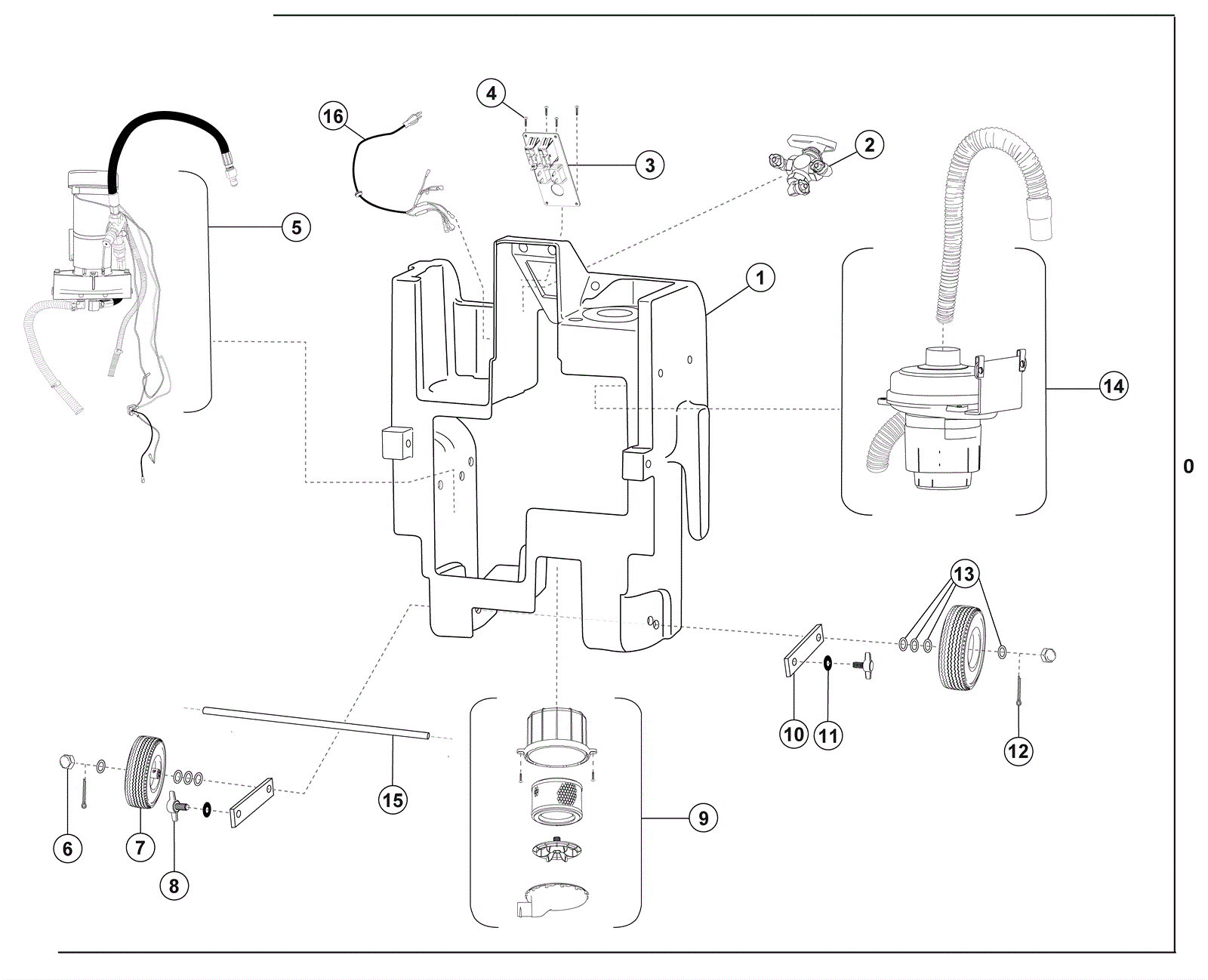

0 |
225-1105
|
Black box assembly |
|
(includes 1-16) |
|
1 |
225-1106
|
Black box |
|
|
|
2 |
225-1107
|
Valve assembly |
|
|
|
3 |
225-0341
|
Dual chemical control panel |
|
|
|
4 |
225-0145
|
Screw 3/4 inch stainless steel |
|
|
|
5 |
225-0332
|
Complete pump assembly |
|
|
|
6 |
225-0025
|
Nut 5/8 push cap |
|
|
|
7 |
225-0022
|
10 inch pneumatic wheel with 5/8 hub |
|
|
|
8 |
225-0330
|
Thumb screw |
|
|
|
9 |
225-0670
|
HEPA housing assembly |
|
|
|
10 |
225-0381
|
Axle strap |
|
|
|
11 |
999-0032
|
Washer 3/8 USS flat plain finish |
|
|
|
12 |
225-0235
|
Cotter pin |
|
|
|
13 |
225-0221
|
Polyp webbing |
|
|
|
15 |
225-0239
|
Axle |
|
|
|
16 |
225-0375
|
12/3 pigtail cord with plug 22 inch |
|
|
|
