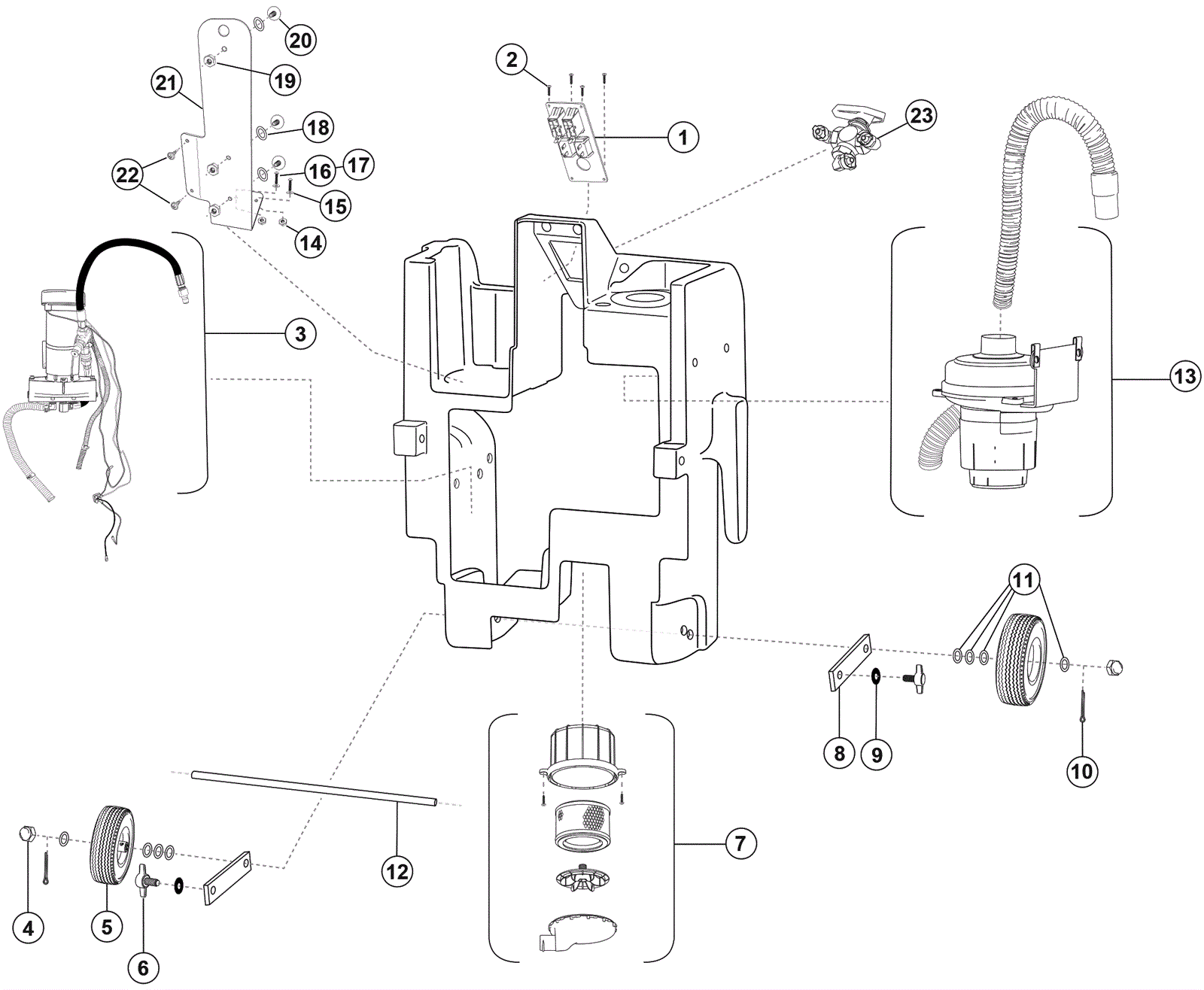

KV17501A Quick Change Power Black Box Diagram

#PartDescriptionPriceReqNotesAvailability
1 225-0767 Dual chemical battery switch panel $358.34 1 usually ships 5-16 days
2 225-0145 Screw 3/4 inch stainless steel $0.99 1 usually ships 5-16 days
3 225-0768 Complete pump $1,874.77 1 ships same day
4a 225-0157 Nut 1/2 push cap $1.64 2 ships same day
4b 225-0025 Nut 5/8 push cap $2.06 2 usually ships 5-16 days
5a 225-0379 8 inch wheel $71.53 2 ships same day
5b 225-0022 10 inch pneumatic wheel with 5/8 hub $80.73 2 ships same day
6 225-0330 Thumb screw $4.66 2 ships same day
7 225-0670 HEPA housing assembly $73.11 1 usually ships 5-16 days
8 225-0381 Axle strap $20.93 2 usually ships 5-16 days
9 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
10 225-0235 Cotter pin $0.99 2 ships same day
11a 999-0114 Washer 1/2 SAE flat $0.99 8 ships same day
11b 999-0349 Washer 5/8 SAE flat $0.99 8 ships same day
12a 225-0378 Axle 20 1/2 x 1/2 inch $49.27 1 ships same day
12b 225-0239 Axle $82.98 1 usually ships 5-16 days
13a 225-0769 36V vacuum motor $517.07 1 (1700) usually ships 5-16 days
13b 225-0770 36V vacuum motor Call for price 1 (27001) usually ships 5-16 days
14 225-0148 Nuts $0.99 1 usually ships 5-16 days
15 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
16 225-1130 Screw 10-24 x 1 flat head stainless steel $0.99 1 usually ships 5-16 days
17 225-1131 Screw #10 18-8 stainless steel $0.99 1 usually ships 5-16 days
18 225-1132 1/8 inch rivet stainless steel $0.99 3 usually ships 5-16 days
19 225-1066 Nut $0.99 3 ships same day
20 225-1133 Screw #6-32 x 3/8 $0.99 3 usually ships 5-16 days
21 225-1134 NTC power pack bracket $95.68 1 ships same day
22 225-0012 Screw #8 self drilling $0.99 2 ships same day
23a 225-1137 3 way valve, COMPLETE ASSEMBLY $339.54 1 ships same day
23b 225-0771 3 way valve assembly Call for price 1 usually ships 5-16 days
