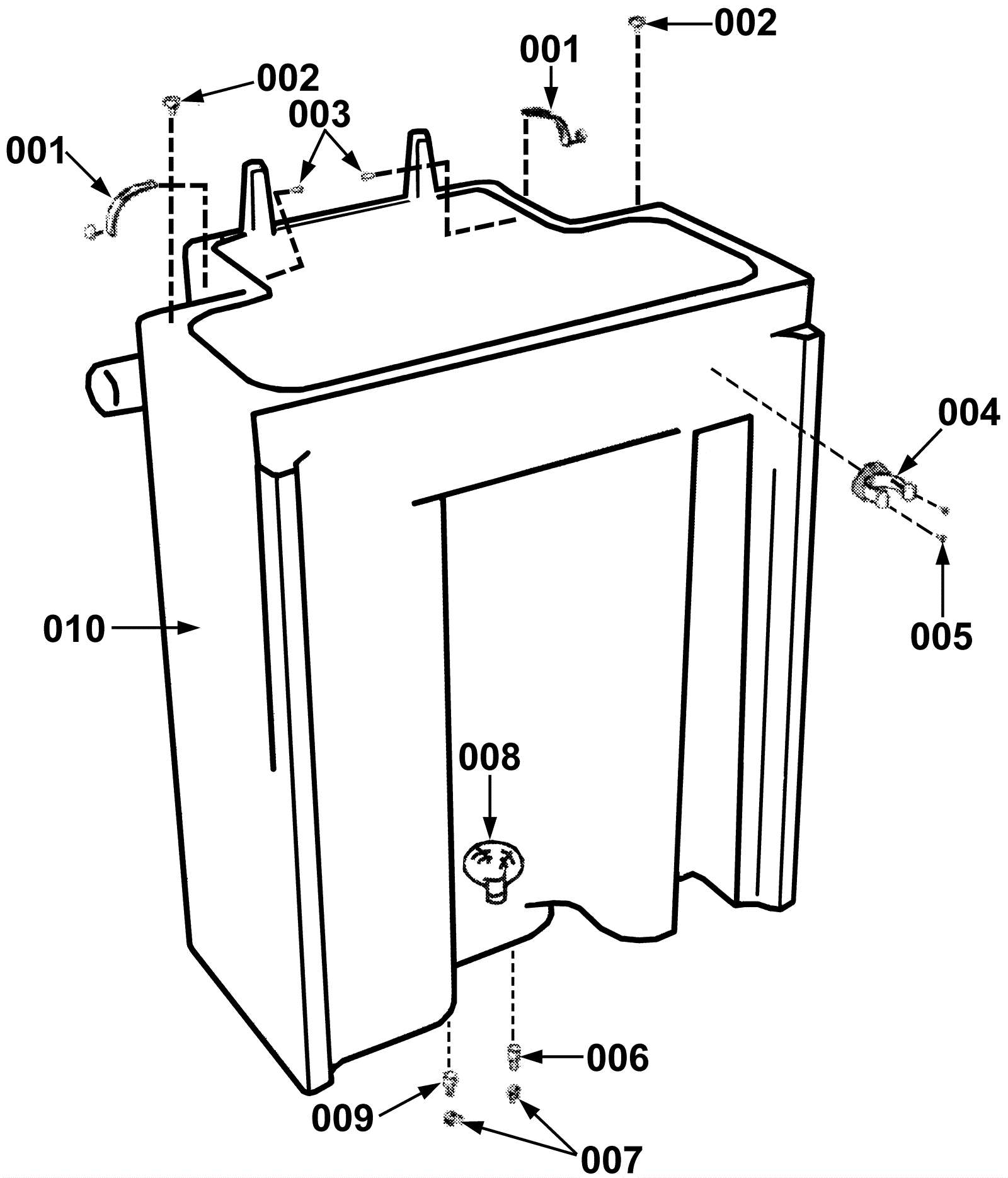

Water Tank Assembly

#PartDescription ReqNotesAvailability
001 225-0013 Wrap and snap assembly 2
002 225-0014 Snap stud 2
003 225-0012 Screw #8 self drilling 1
004 225-0015 Clamp #13 2
005 999-1124 Screw 8-32 x 3/4 flat head square stainless steel 6
006 225-0344 Hose barb 3/8 inch brass 1
007 225-0165 Hose clamp 2
008 225-0331 Water line filter 1
009 225-0241 Hose barb 3/8 x 1/2 inch 1
010 225-0409 Water tank assembly 1
