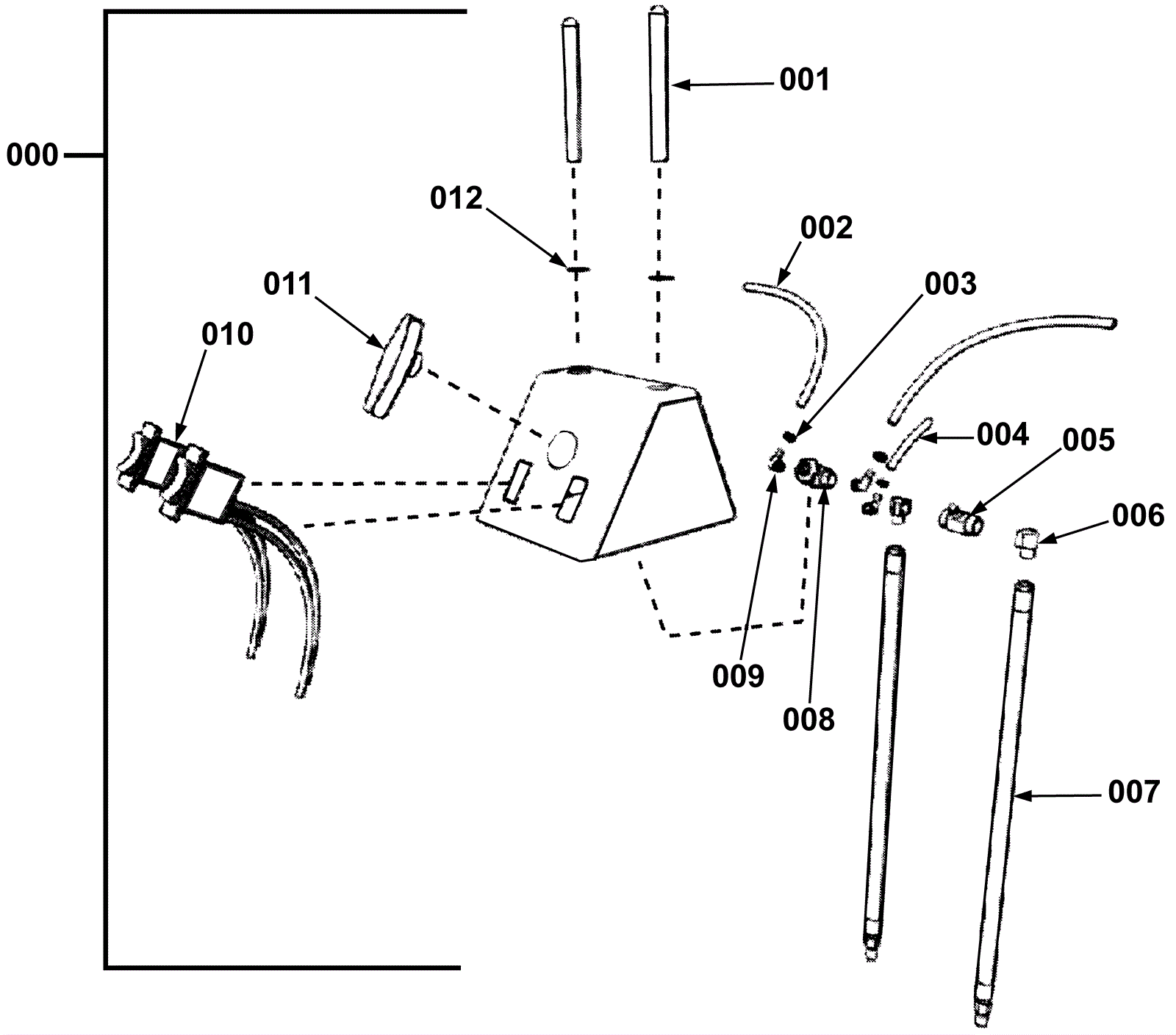

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
225-0011
|
Electrical box and chemical line assembly (2 2-way switches) |
1 |
|
|
000b |
225-0429
|
Electrical box and chemical line assembly (1 2-way, 1 3-way) |
1 |
|
|
000c |
225-0074
|
Switch box (cover only) |
1 |
|
|
001 |
999-1123
|
Screw 1/4-20 x 4 flat head phillips stainless steel |
2 |
|
|
002 |
225-0403
|
Braided hose 1/4 inch x 2 ft |
2 |
|
|
003 |
225-0082
|
Hose clamp |
5 |
|
|
004 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
1 |
|
|
005 |
225-0077
|
Injector |
1 |
|
|
006 |
225-0083
|
90 degree straight elbow |
2 |
|
|
007 |
225-0054
|
Herc hose assembly |
2 |
|
|
008 |
225-0076
|
3 way chemical valve with knob |
1 |
|
|
009 |
225-0075
|
90 degree 1/8 inch male fitting |
3 |
|
|
010 |
225-0072
|
Rocker switch |
2 |
|
|
011 |
225-0084
|
Knob (black) |
1 |
|
|
012 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
