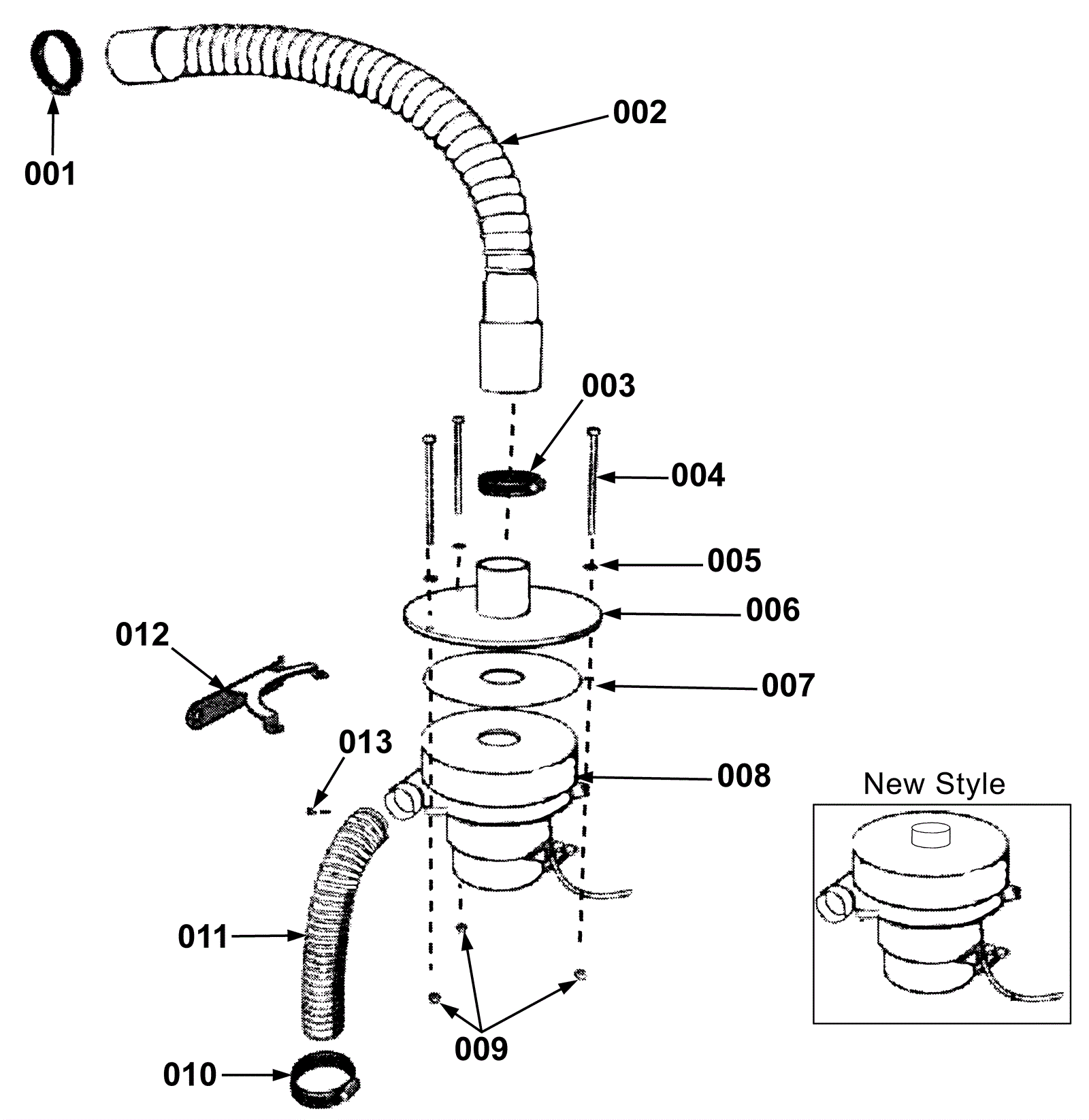

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
997-2003
|
Hose clamp |
1 |
|
|
002 |
225-0397
|
Vac motor hose |
1 |
|
|
003a |
997-2003
|
Hose clamp |
1 |
(before SN 1256) |
|
003b |
225-0127
|
Hose clamp |
1 |
(after SN 1257) |
|
004 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
|
005 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
(before SN 1256) |
|
006 |
N/A
|
Not available |
1 |
(before SN 1256) Vac motor plate is no longer available. Customer will need to replace the vacuum motor with 225-0388 so hose will connect directly to the motor. |
|
007 |
225-0188
|
Gasket |
1 |
(before SN 1256) |
|
008a |
225-0388
|
120V 3 stage vacuum motor with gasket |
1 |
(OEM) (This now comes with a new float that has to be replace the existing float to maintain warranty. Remove the vacuum tank lid, then unscrew existing float - cylindrical wire mesh hanging from top and inside vacuum tank - Screw in the new float provided until snug) (includes 008c and 008d) |
|
008b |
225-2082
|
120V vac motor |
1 |
|
|
008c |
225-0306
|
Float |
1 |
|
|
008d |
225-0188
|
Gasket |
1 |
|
|
009 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
3 |
|
|
010 |
225-0127
|
Hose clamp |
1 |
|
|
011 |
225-0400
|
Vac exhaust hose 18 inch |
1 |
|
|
012 |
225-0276
|
Motor bracket |
1 |
|
|
013 |
225-0012
|
Screw #8 self drilling |
1 |
|
|
