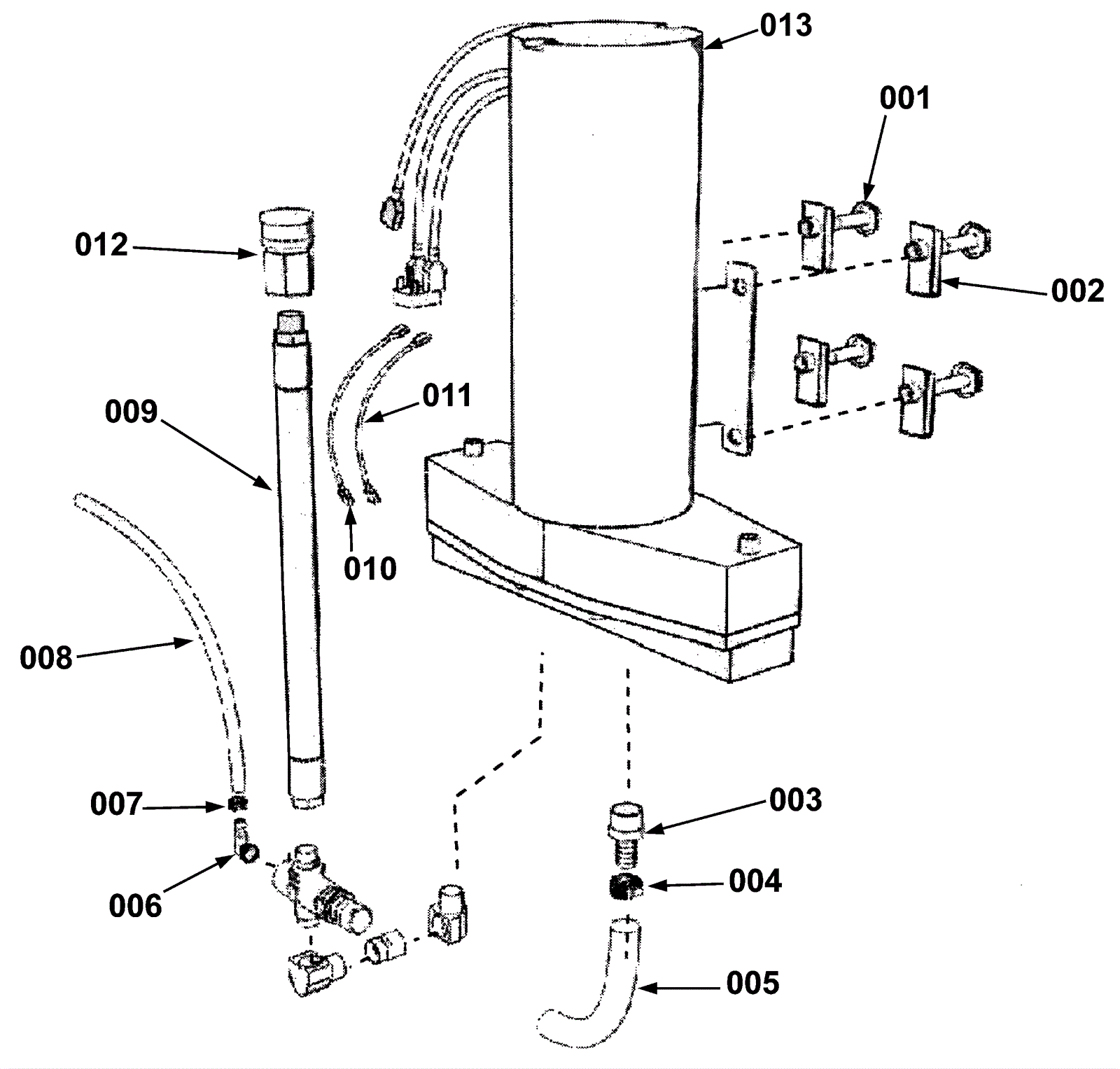

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
002 |
225-0107
|
5/16 u-nut |
4 |
|
|
003 |
225-0241
|
Hose barb 3/8 x 1/2 inch |
1 |
|
|
004 |
225-0165
|
Hose clamp |
1 |
|
|
005 |
225-0395
|
Water line |
1 |
|
|
006 |
225-0369
|
90 degree hose barb 3/8 inch |
1 |
|
|
007 |
225-0165
|
Hose clamp |
1 |
|
|
008 |
225-0396
|
Return water line |
1 |
|
|
009 |
225-0058
|
Pulse hose |
1 |
|
|
010 |
225-0372
|
Jumper wire (black) |
1 |
|
|
011 |
225-0371
|
Jumper wire (white) |
1 |
|
|
012 |
225-0059
|
3/8 quick disconnect coupling |
1 |
|
|
013 |
225-0421
|
Pump motor |
1 |
(motor, bracket and rectifier only) |
|
N/S |
225-0390
|
Rectifier |
1 |
|
|
N/S |
225-0537
|
Pump head |
1 |
|
|
N/S |
225-0332
|
Complete pump assembly |
1 |
(includes the pump head and motor) |
|
