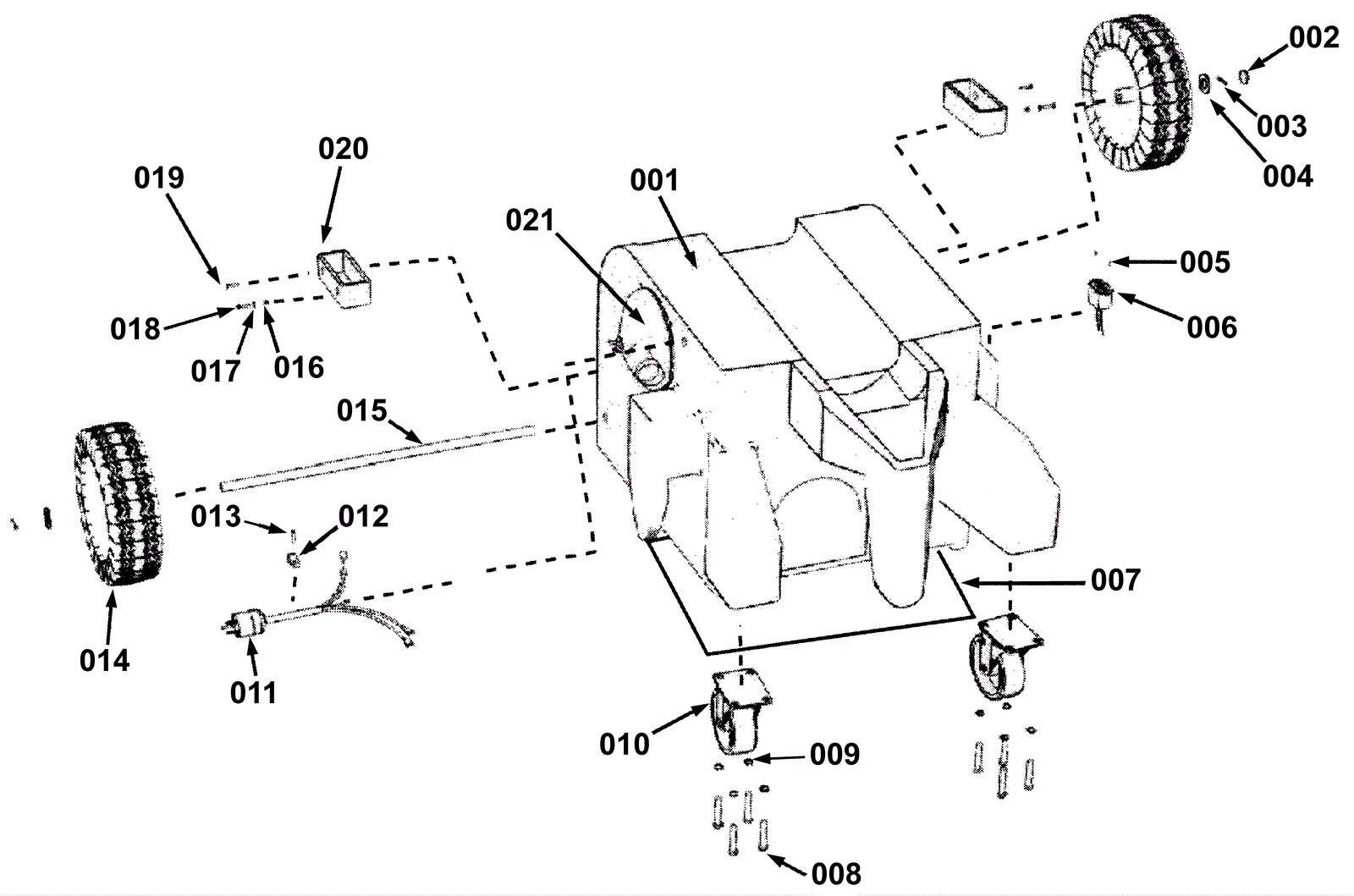

Base Assembly

#PartDescription ReqNotesAvailability
001 225-0392 Base assembly 1
002 225-0025 Nut 5/8 push cap 2
003 225-0235 Cotter pin 2
004 999-0349 Washer 5/8 SAE flat 2
005 997-1000 Pop rivet 1/8 x 5/8 2
006 225-0393 Hour meter 1
007a 225-0325 Bottom plate (OBSOLETE) 1 (before SN 2247)
007b 225-0391 Bottom plate (OBSOLETE) 1 (after SN 2246)
008 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
009 999-0028 Washer 5/16 split lock plain finish 8
010 225-0255 5 inch caster wheel 2
011a 225-0375 12/3 pigtail cord with plug 22 inch 1 (before SN 2247)
011b 225-0375 12/3 pigtail cord with plug 22 inch 1 (after SN 2246)
012 225-0176 3/8 inch cable clamp 1
013 225-0012 Screw #8 self drilling 1
014 225-0022 10 inch pneumatic wheel with 5/8 hub 2
015 225-0024 Axle 5/8 x 23 inch 1
016 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
017 999-0123 Washer 1/4 SAE flat zinc plated 2
018 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
019 225-0012 Screw #8 self drilling 1
020 225-0237 Tray 1
021b 225-0562 HEPA cover 1 (after SN 2246)
