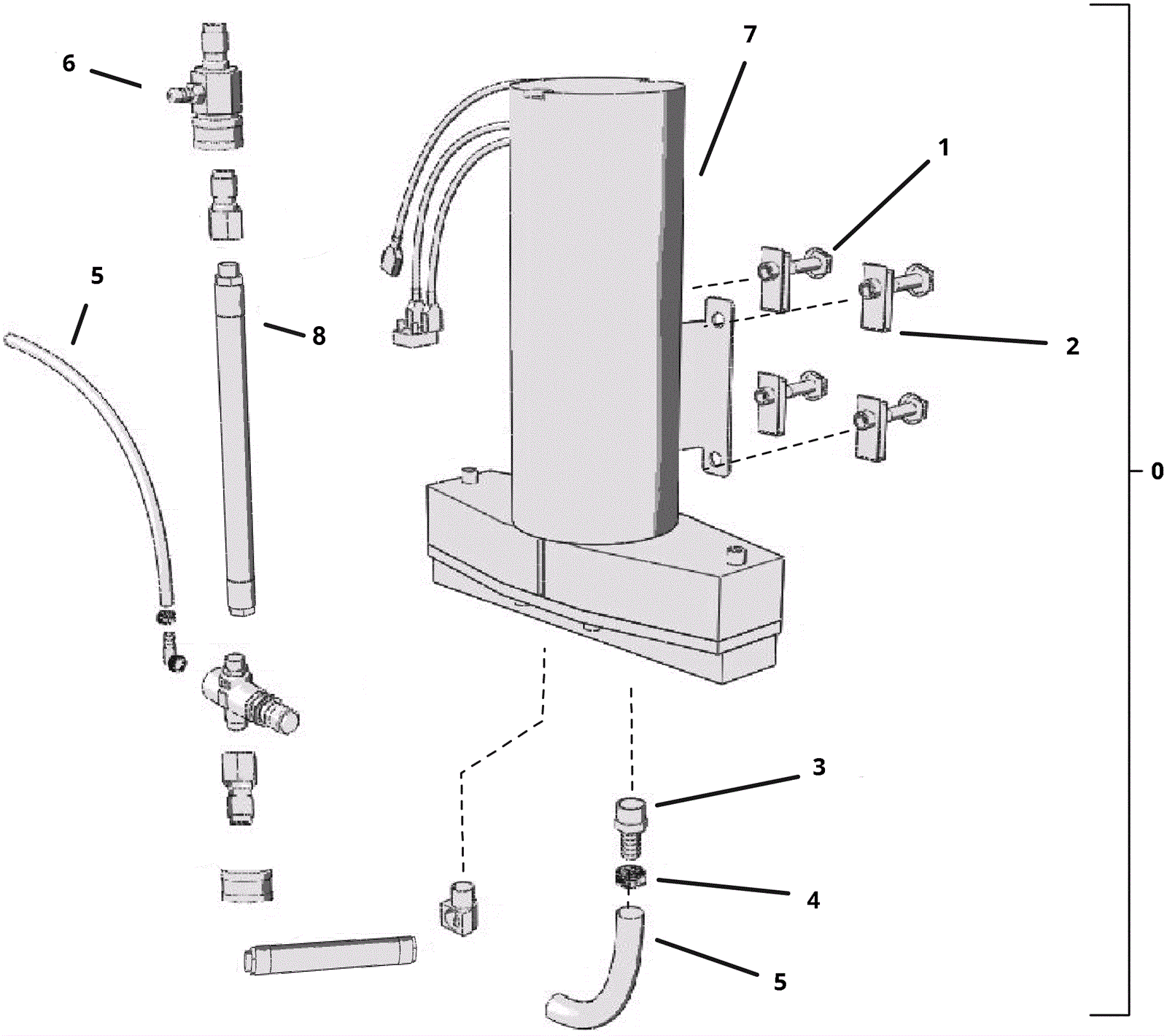

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-0332
|
Complete pump assembly |
1 |
(includes 2-5, 7) |
|
1 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
|
2 |
225-0107
|
5/16 u-nut |
4 |
|
|
3 |
225-0241
|
Hose barb 3/8 x 1/2 inch |
1 |
|
|
4 |
225-0165
|
Hose clamp |
1 |
|
|
5 |
225-0524
|
Water line |
2 |
|
|
6 |
225-0229
|
Quick connect injector |
1 |
|
|
7 |
225-0421
|
Pump motor |
1 |
|
|
8 |
225-0058
|
Pulse hose |
1 |
|
|
