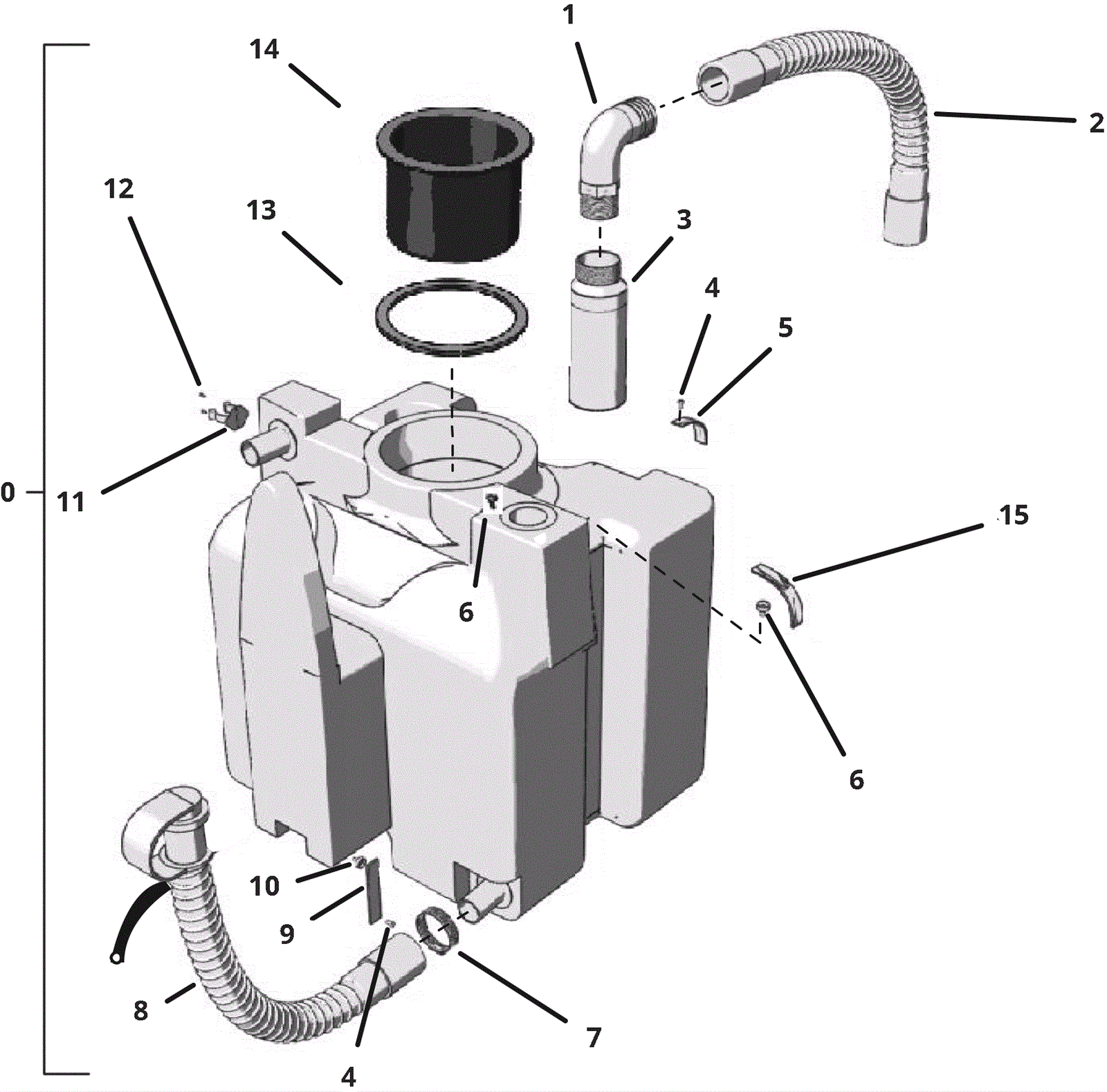

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
225-1179
|
Vacuum tank assembly (yellow) |
1 |
(includes 1-15) |
|
0b |
225-0471
|
Vacuum tank assembly |
1 |
(includes 1-15) (18LB) |
|
1 |
225-0347
|
Hosebarb 1 1/4 x 1 1/2 inch |
1 |
|
|
2 |
225-0474
|
Vacuum motor hose |
1 |
|
|
3 |
225-0306
|
Float |
1 |
|
|
4 |
225-0012
|
Screw #8 self drilling |
2 |
|
|
5 |
225-0348
|
4 inch snap and strap |
1 |
|
|
6 |
225-0014
|
Snap stud |
1 |
|
|
7 |
997-2003
|
Hose clamp |
1 |
|
|
8 |
225-0335
|
Drain hose |
1 |
|
|
9 |
225-0352
|
6 inch snap and strap |
1 |
|
|
10 |
225-0353
|
Male snap |
1 |
|
|
11 |
225-0034
|
Clamp #15 |
1 |
|
|
12 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
1 |
|
|
13 |
225-0236
|
Tank lid gasket |
1 |
|
|
14 |
225-0560
|
Jug holder vac lid assembly |
1 |
|
|
15 |
225-0282
|
9 inch strap |
1 |
|
|
N/S |
225-0349
|
11 inch snap and strap |
1 |
|
|
N/S |
225-0354
|
6 inch tank lid (black) |
1 |
|
|
N/S |
225-0145
|
Screw 3/4 inch stainless steel |
1 |
|
|
