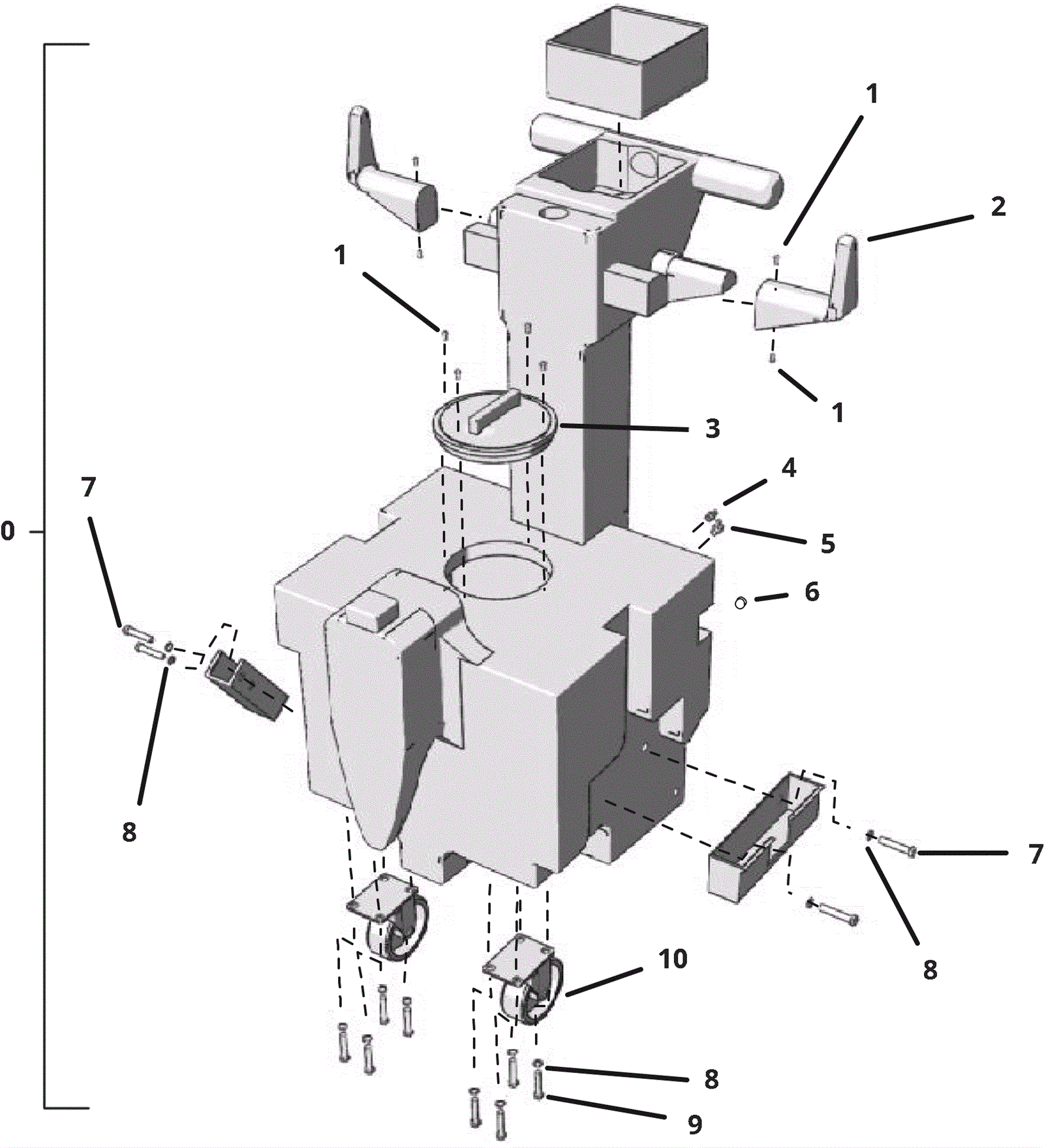

Water Tank Assembly

#PartDescription ReqNotesAvailability
0 225-0346 Water tank assembly 1 (includes 1-10)
1 225-0145 Screw 3/4 inch stainless steel 8
2 225-0342 Hose wrap hook 2
3 225-0343 4 inch lid 1
4 225-0241 Hose barb 3/8 x 1/2 inch 1
5 225-0345 90 degree hose barb 3/8 inch 1
6 225-0331 Water line filter 1
7 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
8 999-0028 Washer 5/16 split lock plain finish 12
9 999-0225 Screw 5/16-18 x 1 button head socket plain finish 8
10 225-0255 5 inch caster wheel 2
N/S 225-0344 Hose barb 3/8 inch brass 1
