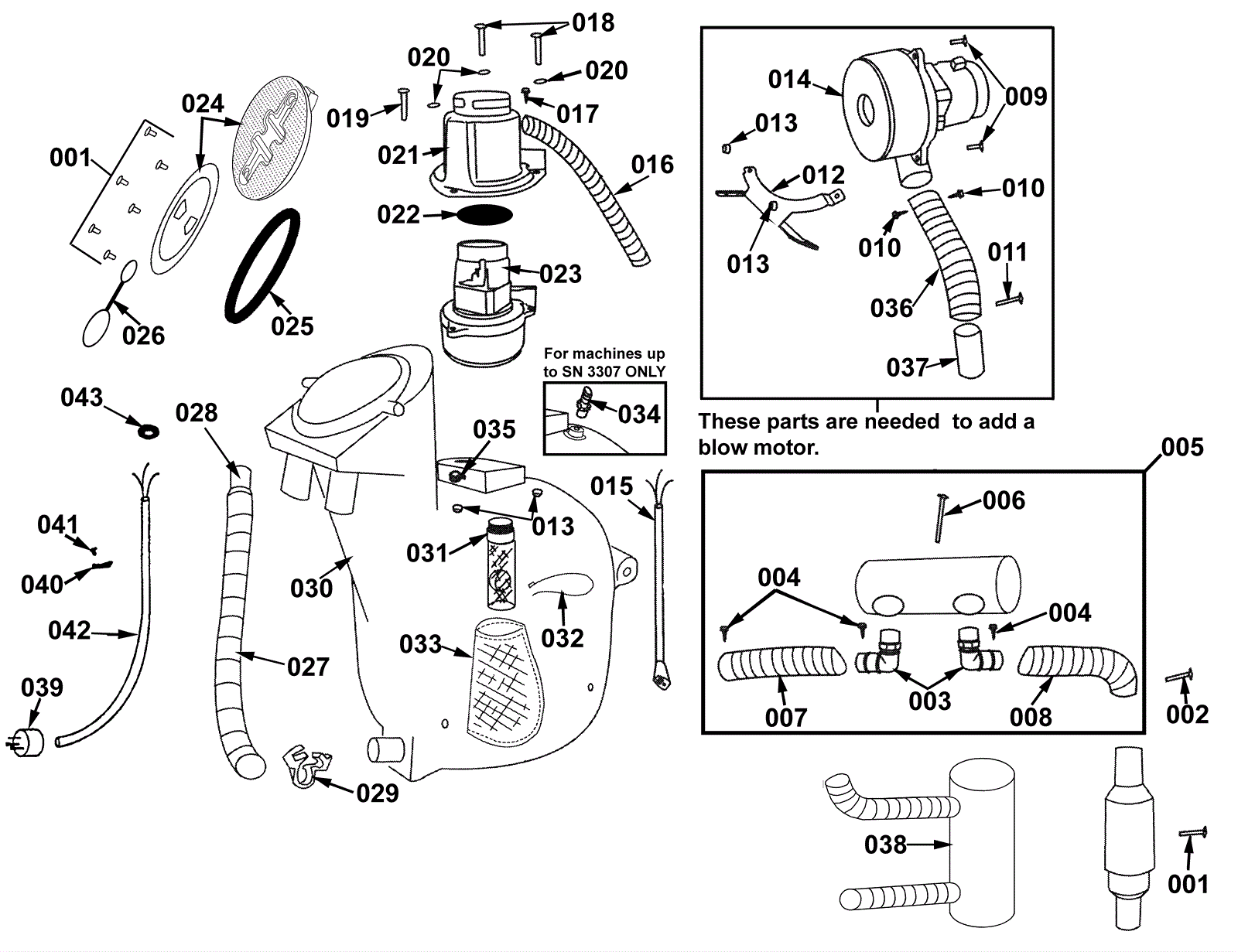

# | Part | Description | Price | Req | Notes | Availability |
001 |
225-0145
|
Screw 3/4 inch stainless steel |
$0.99
|
7 |
|
ships same day |
002 |
999-0701
|
Bolt 1/4-20 x 2 3/4 hex head grade 5 zinc plated |
$0.90
|
1 |
|
ships same day |
003 |
225-0278
|
90 degree elbow |
$0.90
|
2 |
|
usually ships 1-5 days |
004 |
225-0012
|
Screw #8 self drilling |
$0.90
|
3 |
|
ships same day |
005 |
225-0243
|
Pre-muffler assembly |
$32.38
|
1 |
|
usually ships 1-5 days |
006 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
$1.39
|
1 |
|
ships same day |
007 |
225-0277
|
Pre muffler hose |
$3.11
|
1 |
|
usually ships 1-5 days |
008 |
225-0279
|
Pre muffler hose |
$1.72
|
1 |
|
usually ships 5-16 days |
009 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
010 |
225-0012
|
Screw #8 self drilling |
$0.90
|
2 |
|
ships same day |
011 |
225-0185
|
Bolt 1/4-20 x 2-1/2 bar retainer |
$0.90
|
1 |
|
usually ships 1-5 days |
012 |
225-0276
|
Motor bracket |
$37.08
|
1 |
|
usually ships 5-16 days |
013 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
014 |
225-0045
|
120V vacuum motor without inlet tube |
$272.16
|
1 |
|
ships same day |
015 |
225-0280
|
Plug harness |
$50.94
|
1 |
|
usually ships 5-16 days |
016 |
225-0274
|
Hose (sold by the foot) |
$7.88
|
2 |
|
usually ships 5-16 days |
017 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
$0.99
|
1 |
|
ships same day |
018 |
999-1127
|
Bolt 1/4-20 x 5 1/2 hex head hot dipped galvanized |
$1.10
|
2 |
|
ships same day |
019 |
999-0682
|
Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated |
$0.96
|
1 |
|
ships same day |
020 |
999-0016
|
Washer 1/4 flat plain finish |
$0.99
|
3 |
|
ships same day |
021 |
N/A
|
Not available |
Call for price
|
1 |
Vac cover - This part is no longer needed. |
usually ships 30-32 days |
022 |
225-0128
|
Muffler pad 2 x 2 inches |
$4.31
|
1 |
|
usually ships 5-16 days |
023a |
225-0045
|
120V vacuum motor without inlet tube |
$272.16
|
1 |
after SN 1890 |
ships same day |
023b |
225-0647
|
Old vacuum motor w/ inlet port |
$551.00
|
1 |
before SN 1890 |
usually ships 5-16 days |
024a |
225-0032
|
6 inch clear lid with deck plate ring |
$148.64
|
1 |
|
usually ships 5-16 days |
024b |
225-0354
|
6 inch tank lid (black) |
$57.39
|
1 |
|
ships same day |
024c |
225-0144
|
4 inch beckson lid |
$46.56
|
1 |
|
usually ships 5-16 days |
025 |
225-0236
|
Tank lid gasket |
$17.00
|
1 |
|
ships same day |
026 |
164-0207
|
Plug strap |
$17.60
|
1 |
|
ships same day |
027a |
225-0270
|
Dump hose - one large grey cuff, one small black cuff |
$67.99
|
1 |
|
usually ships 5-16 days |
027b |
225-0320
|
Dump hose - two small black cuffs |
$54.83
|
1 |
|
usually ships 5-16 days |
028 |
225-0132
|
Black vacuum hose cuff |
$5.59
|
2 |
for dump hose |
ships same day |
029 |
225-0271
|
Snap clamp |
$4.90
|
1 |
|
usually ships 5-16 days |
030a |
225-0238
|
Vacuum tank sub assembly |
$319.07
|
1 |
(includes 001, 024, 025, 027-029, and 031) (up to SN3307 ONLY) |
usually ships 5-16 days |
030b |
225-0309
|
Vacuum tank sub assembly |
$345.58
|
1 |
(includes 001, 024, 025, 027-029, and 031) (SN3308 and after ONLY) |
usually ships 1-5 days |
031 |
225-0306
|
Float |
$45.94
|
1 |
|
ships same day |
032 |
997-2102
|
Cable tie |
$1.24
|
1 |
|
ships same day |
033 |
225-0095
|
Filter bag |
$10.93
|
1 |
|
usually ships 5-16 days |
034 |
225-0241
|
Hose barb 3/8 x 1/2 inch |
$10.62
|
1 |
(Up to SN3307 ONLY) |
usually ships 5-16 days |
035 |
225-0273
|
Rubber loop strap |
$0.90
|
3 |
|
usually ships 5-16 days |
036 |
225-0131
|
Vacuum hose (per foot) |
$4.51
|
1 ft |
|
usually ships 1-5 days |
037 |
225-0133
|
Connector |
$5.30
|
1 |
|
usually ships 5-16 days |
038 |
225-0243
|
Pre-muffler assembly |
$32.38
|
1 |
(Up to SN3307 ONLY) |
usually ships 1-5 days |
039 |
991-2108
|
125V 15amp male replacement plug |
$6.15
|
1 |
|
ships same day |
040 |
225-0176
|
3/8 inch cable clamp |
$0.90
|
1 |
|
usually ships 5-16 days |
041 |
225-0012
|
Screw #8 self drilling |
$0.90
|
1 |
|
ships same day |
042 |
225-0106
|
Electric wire |
$1.36
|
1 |
|
usually ships 1-5 days |
043 |
225-0228
|
Rubber grommet |
$1.41
|
1 |
|
usually ships 1-5 days |
N/S |
225-0047
|
Large snap clamp |
$4.56
|
1 |
|
ships same day |
N/S |
225-0132
|
Black vacuum hose cuff |
$5.59
|
2 |
|
ships same day |
N/S |
225-0317
|
Vacuum hose (sold by the foot) |
$3.40
|
6 ft |
|
usually ships 5-16 days |
