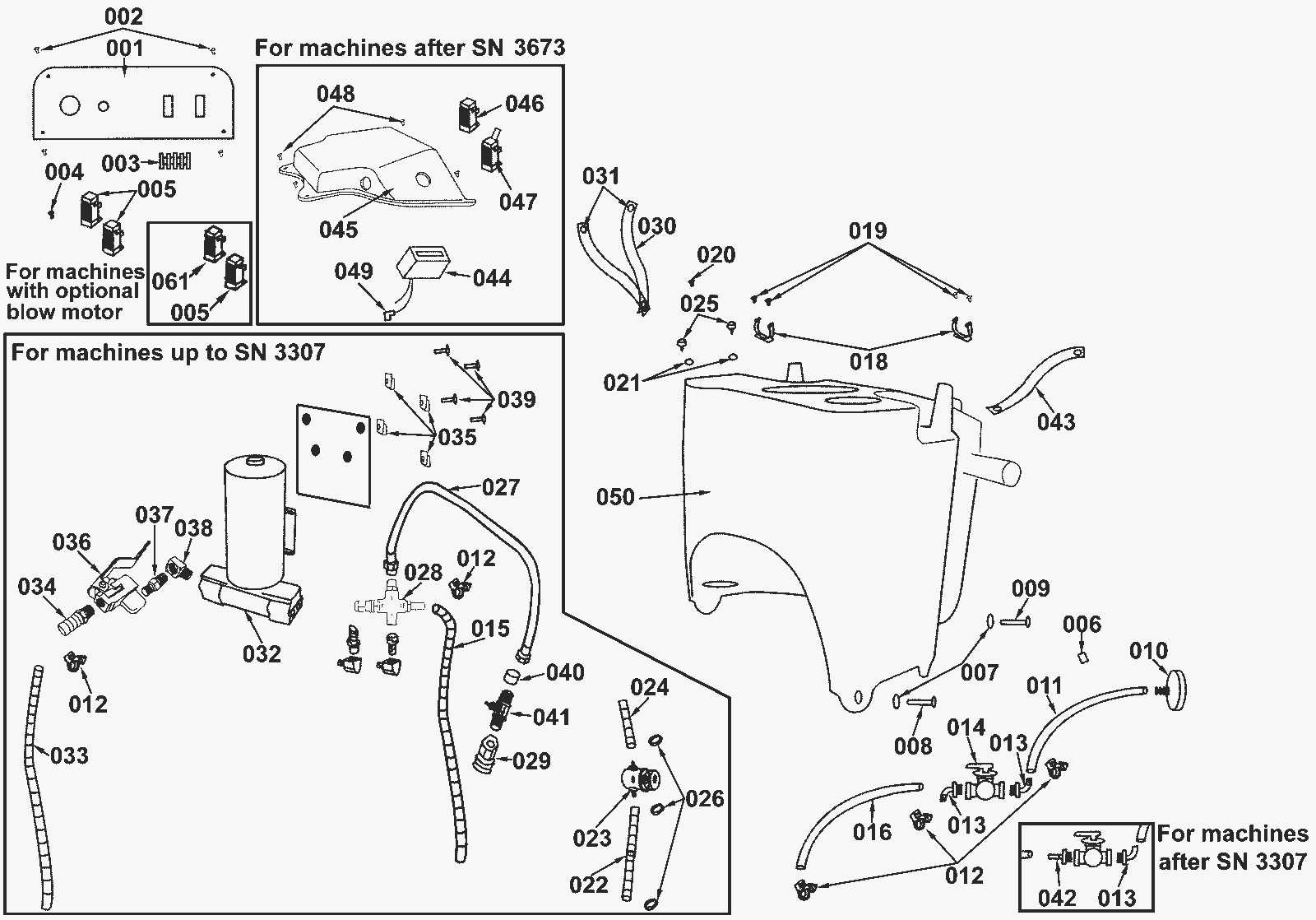

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
225-0252
|
Switch cover (OBSOLETE) |
1 |
|
|
002 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
003 |
225-0321
|
Terminal block |
1 |
|
|
004 |
225-0195
|
Terminal block retainer screw |
1 |
|
|
005a |
225-0072
|
Rocker switch |
2 |
For units without blow motor |
|
005b |
225-0072
|
Rocker switch |
1 |
For units with blow motor |
|
006 |
225-0082
|
Hose clamp |
1 |
|
|
007 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
008 |
999-0350
|
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
2 |
|
|
009 |
999-0638
|
Bolt 3/8-16 x 2 1/4 hex head |
2 |
|
|
010 |
225-0033
|
Yellow safety cap (white cap no longer available) |
1 |
|
|
011 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
3 ft |
|
|
012 |
225-0181
|
Clamp |
5 |
|
|
013a |
225-0075
|
90 degree 1/8 inch male fitting |
2 |
Before SN 3307 |
|
013b |
225-0075
|
90 degree 1/8 inch male fitting |
1 |
After SN 3307 |
|
014 |
225-0192
|
2 way brass valve viton seals 1/8 x 1/8 |
1 |
|
|
015 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
3 ft |
|
|
016 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
1 ft |
|
|
018 |
225-0015
|
Clamp #13 |
2 |
|
|
019 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
4 |
|
|
020 |
225-0012
|
Screw #8 self drilling |
1 |
|
|
021 |
225-0222
|
Snap socket |
3 |
|
|
022 |
225-0164
|
Wire reinforced hose 1/2 x 12 inches |
1 |
Cut to 3 inches |
|
023a |
225-0051
|
Water filter (1/2 inch barbs on each side) |
1 |
|
|
023b |
991-9208
|
Strainer 1/2 HOSE 20 MESH |
1 |
(NON-OEM) |
|
023c |
225-0299
|
Stainless mesh filter screen |
1 |
Screen only |
|
023d |
225-0102
|
Bowl filter gasket |
1 |
Will need this if replacing screen |
|
024 |
225-0164
|
Wire reinforced hose 1/2 x 12 inches |
1 |
Cut to 10 1/2 inches |
|
025 |
225-0014
|
Snap stud |
3 |
|
|
026 |
225-0165
|
Hose clamp |
3 |
|
|
027 |
225-0058
|
Pulse hose |
1 |
|
|
028a |
225-0061
|
Unloader/check valve |
1 |
(OEM) |
|
028b |
991-7121
|
Unloader valve |
1 |
(NON-OEM) |
|
029 |
225-0059
|
3/8 quick disconnect coupling |
1 |
|
|
030 |
225-0281
|
17 inch strap |
1 |
|
|
031 |
225-0223
|
Snap button |
3 |
|
|
032a |
N/A
|
Not available |
|
See pump page |
|
032b |
225-0226
|
AC/DC rectifier |
|
|
|
033 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
2 ft |
|
|
034 |
225-0220
|
Barb 1/4 x 1/2 (OBSOLETE) |
1 |
|
|
035 |
225-0107
|
5/16 u-nut |
4 |
|
|
036a |
225-0120
|
Stainless steel trigger valve |
1 |
Stainless steel from SN 2000 on, if machine is around SN 1900 to SN 2100 please make sure its not a brass valve |
|
036b |
225-0322
|
Brass trigger valve |
1 |
Brass valve, used on newer machines |
|
037 |
225-0218
|
Reducer 1/4 x 1/8 |
1 |
|
|
038 |
225-0111
|
90 degree elbow |
1 |
|
|
039 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
4 |
|
|
040 |
225-0217
|
Coupler 3/8 x 3/8 |
1 |
|
|
041a |
225-0077
|
Injector |
1 |
|
|
041b |
225-0104
|
Injector kit |
1 |
Includes the spring,o-ring and bearing only (used inside the injector) |
|
042 |
225-0290
|
1/8 NPT x 1/4 |
1 |
|
|
043 |
225-0282
|
9 inch strap |
1 |
|
|
044 |
225-0287
|
Hour meter |
1 |
|
|
045 |
225-0227
|
Switch plate |
1 |
|
|
046 |
225-0284
|
2 way rocker switch |
1 |
|
|
047a |
225-0286
|
Quick connect terminal |
1 |
|
|
047b |
225-0285
|
3 way switch for blow and vac |
1 |
|
|
048 |
225-0145
|
Screw 3/4 inch stainless steel |
4 |
|
|
049 |
225-0288
|
Quick connect terminal |
1 |
|
|
050 |
225-0283
|
Kaizen cover only |
1 |
|
|
061 |
225-0073
|
On/off switch |
1 |
For units with blow motor |
|
N/S |
991-1303
|
2amp AGC glass tube fuse |
1 |
|
|
N/S |
225-0084
|
Knob (black) |
1 |
Chemical knob |
|
N/S |
225-0314
|
Hose hugger |
1 |
|
|
N/S |
225-0036
|
33 feet blow hose |
1 |
|
|
N/S |
225-0318
|
Electrical box and Chemical line assembly |
|
|
|
N/S |
225-0315
|
Tote bag |
1 |
Will take the place of the hose hugger soon |
|
