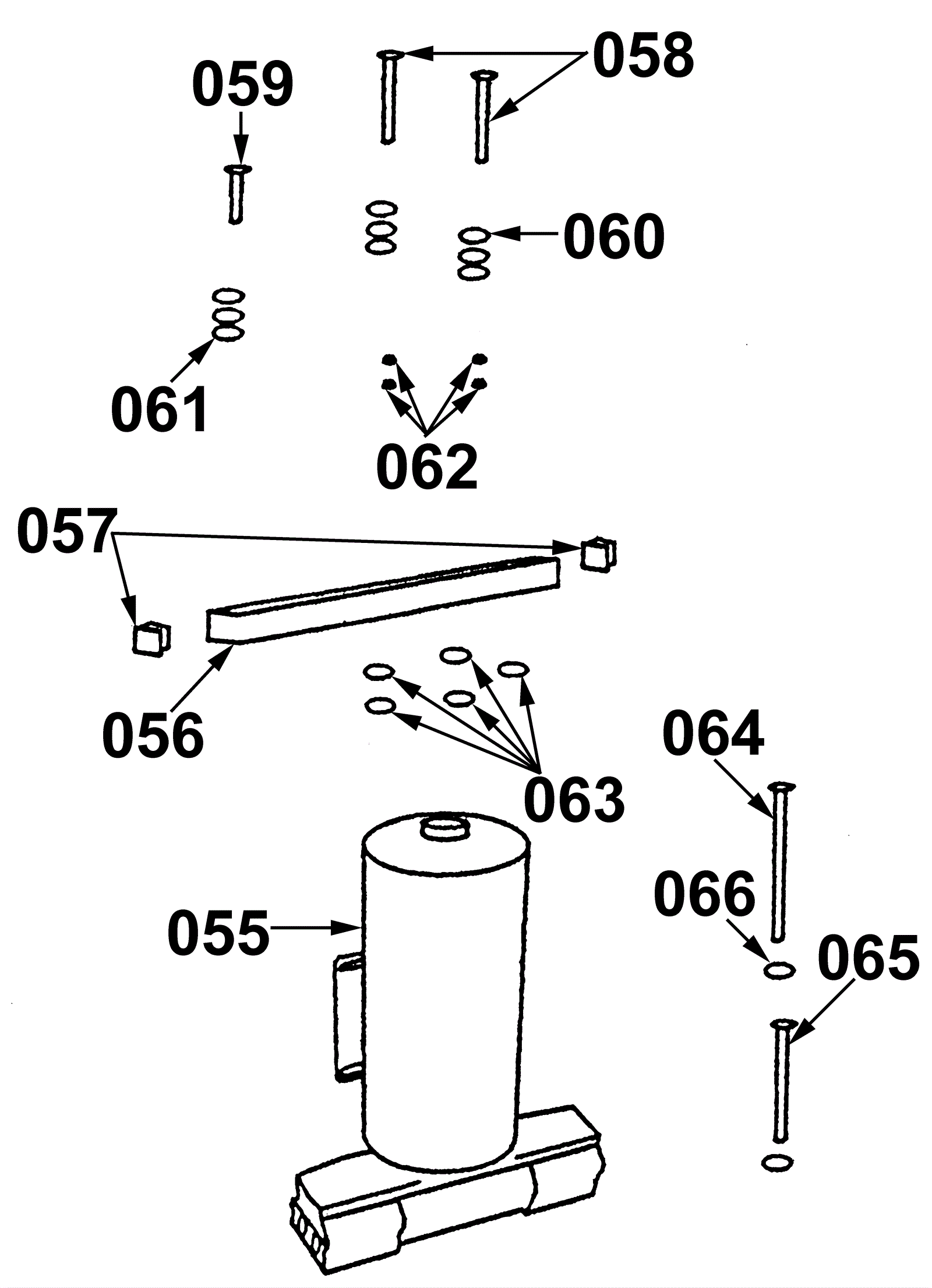

Pump Motor Assembly

#PartDescription ReqNotesAvailability
055 225-0183 300 PSI pump and motor assembly - Plumbing on side 1
056 225-0184 Pump support bar 1
057 225-0177 Polyethylene cap 2
058 225-0185 Bolt 1/4-20 x 2-1/2 bar retainer 2
059 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 1
060 225-0186 Washer 1/4 rubber 3
061 999-1119 Washer 1/4 x 1 fender zinc plated 3
062 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
063 999-0123 Washer 1/4 SAE flat zinc plated 5
064 999-1126 Bolt 1/4-20 x 5 hex head hot dipped galvanized 2
065 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated 1
066 999-0123 Washer 1/4 SAE flat zinc plated 3
N/S 225-0139 Pump kit A 500 psi 1 Plunger, seals and pistons
N/S 225-0302 Pump kit C 300psi (for cam bearing) 1
N/S 225-0301 Pump kit B 300psi (for valves and orings)(OBSOLETE) 1
N/S 225-0300 Pump kit A 300psi (for plunger and seals) 1
N/S 225-0141 Pump kit C 500 psi 1 Cam bearing
N/S 225-0140 Pump kit B 500 psi 1 Valves and O-rings
