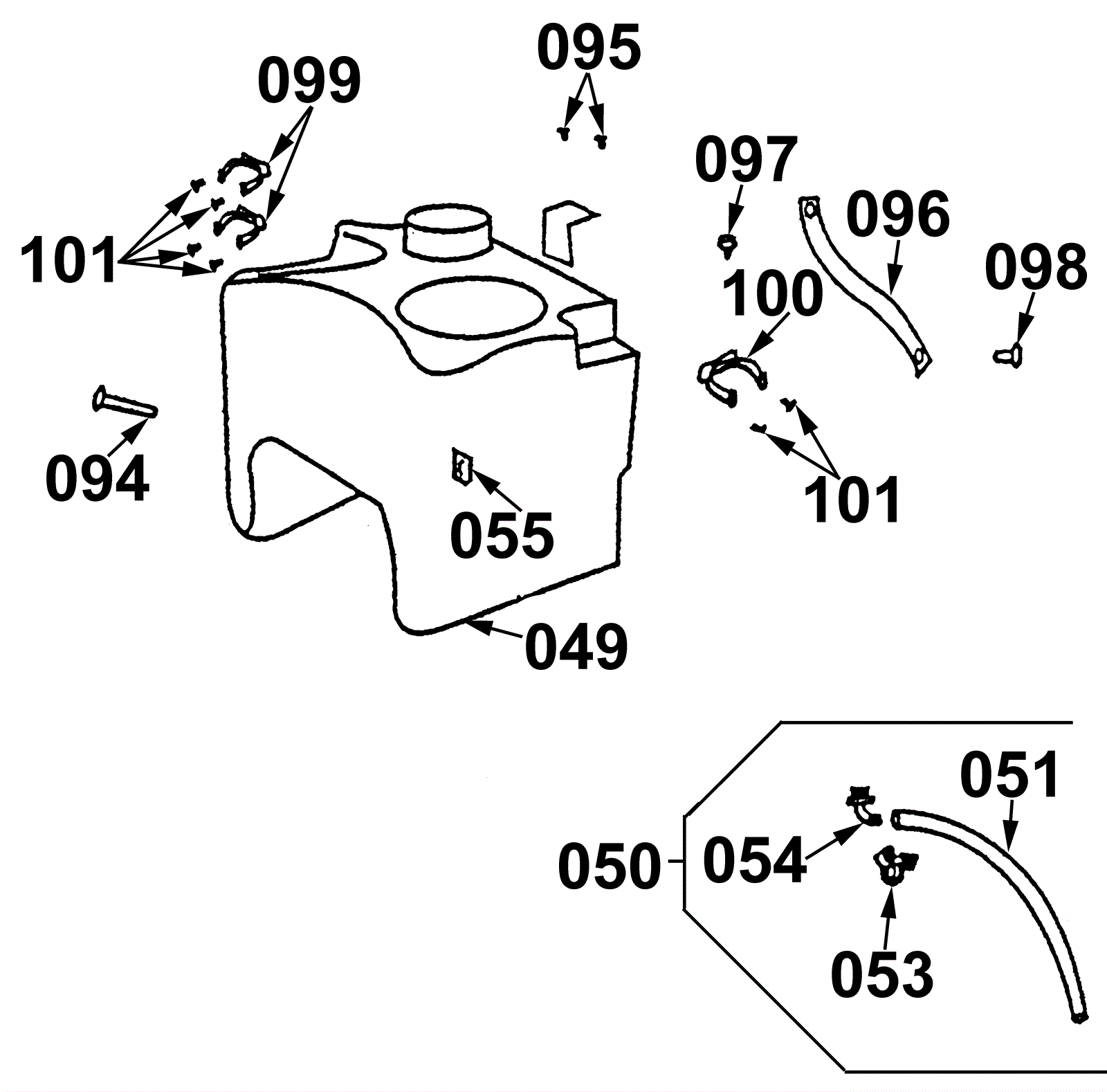

| # | Part | Description |
Req | Notes | Availability |
|---|
049 |
225-0179
|
Cover |
1 |
|
|
050 |
225-0180
|
Return line assembly |
1 |
Assembly includes 051, 053, and 054 |
|
051 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
1 |
|
|
053 |
225-0181
|
Clamp |
1 |
|
|
054 |
225-0182
|
90 degree barb 1/4 |
1 |
|
|
055 |
997-2102
|
Cable tie |
1 |
|
|
094 |
225-0152
|
Bolt 1/4 x 1/2 |
1 |
|
|
095 |
225-0145
|
Screw 3/4 inch stainless steel |
2 |
|
|
096 |
225-0013
|
Wrap and snap assembly |
1 |
|
|
097 |
225-0014
|
Snap stud |
1 |
|
|
098 |
225-0012
|
Screw #8 self drilling |
1 |
|
|
099 |
225-0015
|
Clamp #13 |
2 |
|
|
100 |
225-0034
|
Clamp #15 |
1 |
|
|
101 |
999-1124
|
Screw 8-32 x 3/4 flat head square stainless steel |
6 |
|
|
