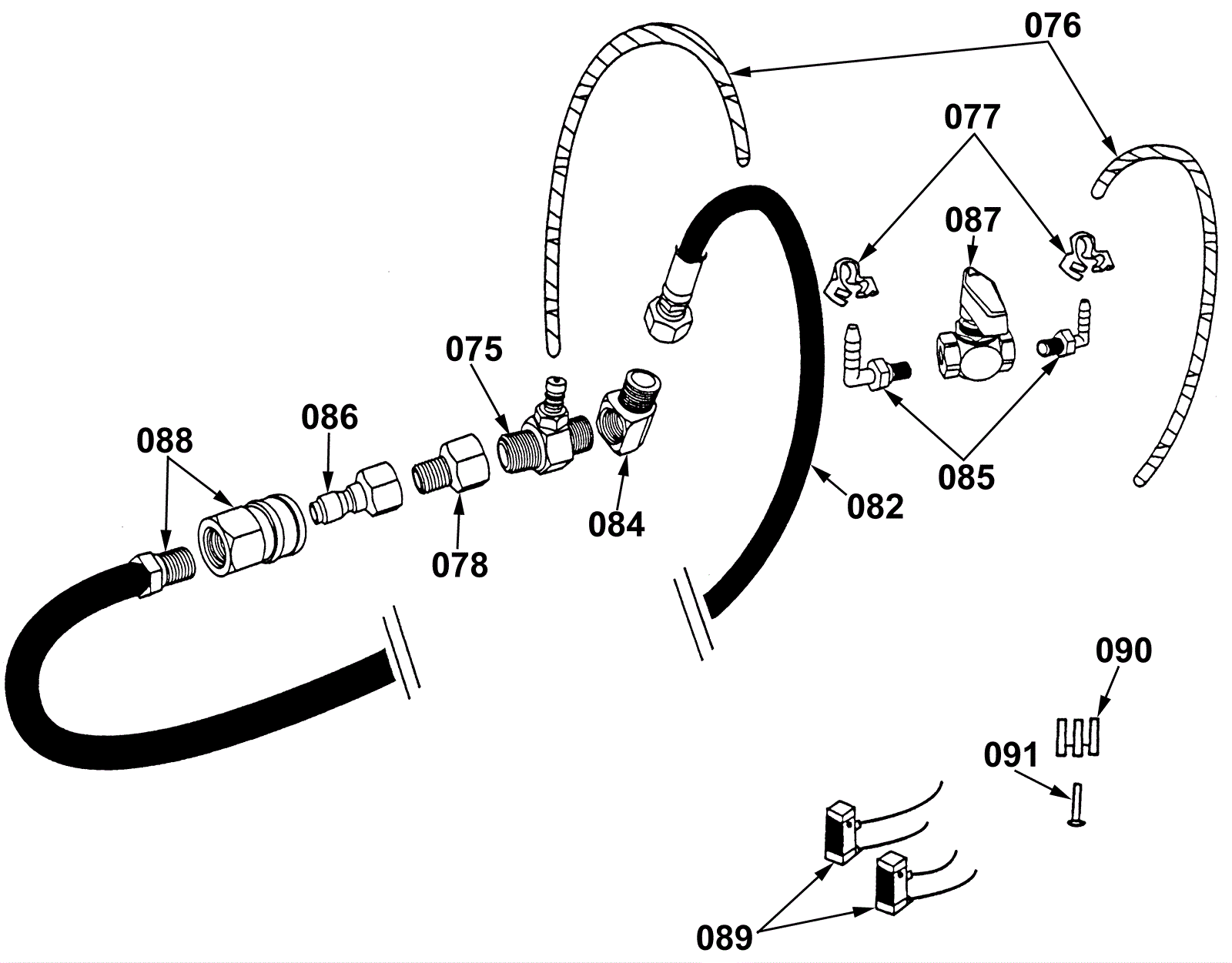

| # | Part | Description |
Req | Notes | Availability |
|---|
075 |
225-0077
|
Injector |
1 |
|
|
076 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
1 |
|
|
077 |
225-0181
|
Clamp |
1 |
|
|
078 |
225-0190
|
Adapter 3/8 x 1/4 |
1 |
|
|
082 |
225-0117
|
Hose |
1 |
|
|
084 |
225-0123
|
Barb 1/4 male (OBSOLETE) |
3 |
|
|
085 |
225-0075
|
90 degree 1/8 inch male fitting |
2 |
brass only, plastic is nla |
|
086 |
225-0087
|
Quick disconnect plug 1/4 |
1 |
|
|
087 |
225-0192
|
2 way brass valve viton seals 1/8 x 1/8 |
1 |
|
|
088 |
225-0194
|
1/4 quick disconnect coupler |
1 |
|
|
089 |
225-0072
|
Rocker switch |
2 |
|
|
090 |
225-0321
|
Terminal block |
1 |
|
|
091 |
225-0195
|
Terminal block retainer screw |
1 |
|
|
N/S |
225-0191
|
Barb 1/4 x 3/8 |
1 |
|
|
N/S |
225-0033
|
Yellow safety cap (white cap no longer available) |
1 |
|
|
N/S |
225-0104
|
Injector kit |
1 |
Ball, o-ring, and spring |
|
N/S |
225-0059
|
3/8 quick disconnect coupling |
1 |
|
|
N/S |
225-0082
|
Hose clamp |
1 |
|
|
N/S |
225-0084
|
Knob (black) |
1 |
|
|
N/S |
225-0122
|
Ferrule |
4 |
|
|
