| # | Part | Description | Price | Req | Notes | Availability |
|---|

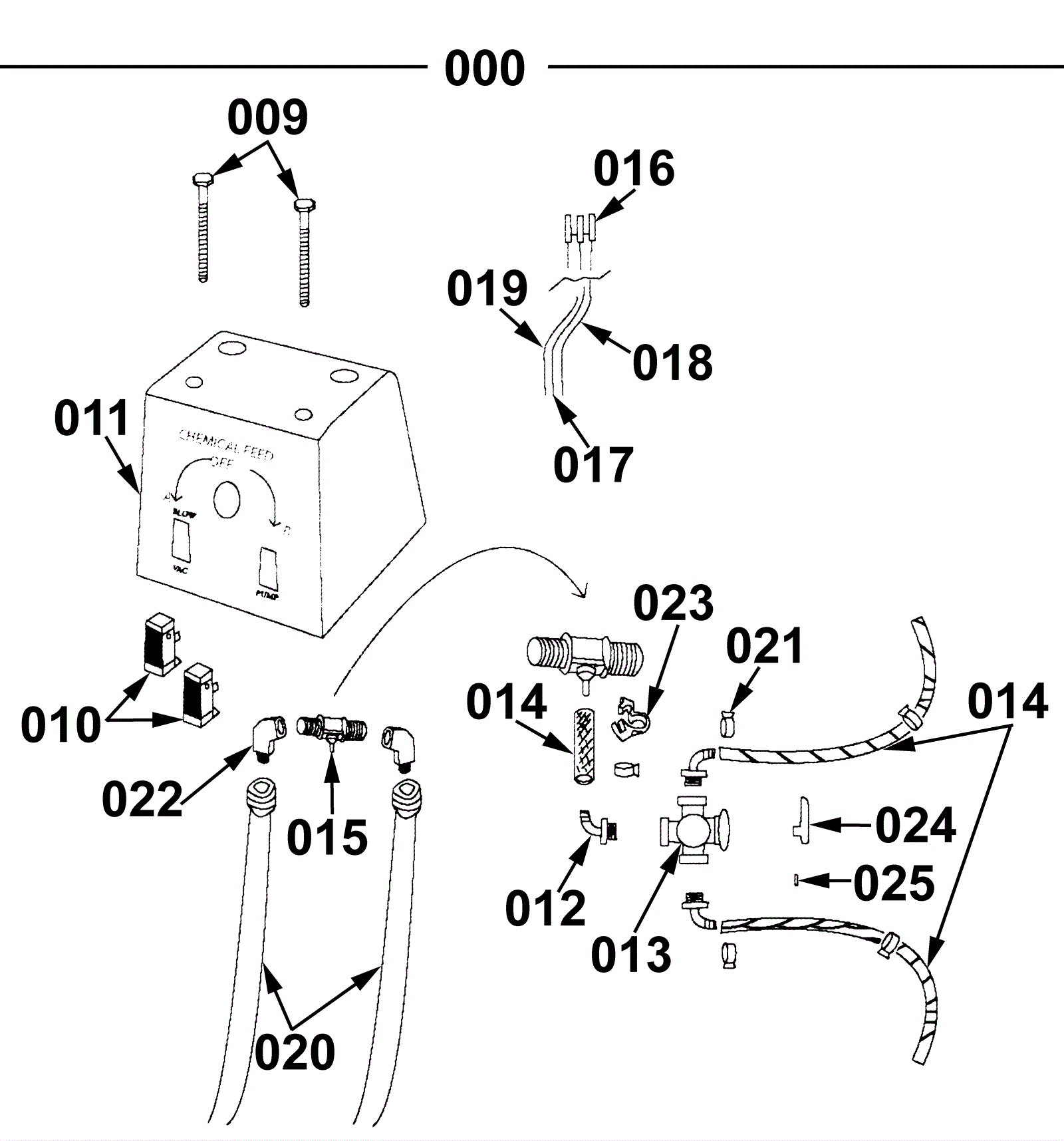

| 000 |
225-0011
|
Electrical box and chemical line assembly (2 2-way switches) |
$1,035.41
|
1 |
Assembly includes 009-025 |
ships same day |
| 009 |
999-1123
|
Screw 1/4-20 x 4 flat head phillips stainless steel |
$2.77
|
2 |
|
ships same day |
| 010a |
225-0072
|
Rocker switch |
$10.92
|
2 |
|
ships same day |
| 010b |
225-0073
|
On/off switch |
$12.45
|
2 |
For KV500b model |
ships same day |
| 011 |
225-0074
|
Switch box (cover only) |
$125.70
|
1 |
|
ships same day |
| 012 |
225-0075
|
90 degree 1/8 inch male fitting |
$5.88
|
3 |
brass only, plastic is nla |
ships same day |
| 013 |
225-0076
|
3 way chemical valve with knob |
$144.87
|
1 |
|
usually ships 12-18 days |
| 014 |
225-0048
|
1/4 inch chemical hose (sold by the foot) |
$5.42
|
3 |
|
ships same day |
| 015 |
225-0077
|
Injector |
$78.31
|
1 |
|
usually ships 12-18 days |
| 016 |
225-0321
|
Terminal block |
$18.58
|
1 |
|
usually ships 12-18 days |
| 017 |
225-0079
|
Red wire lead |
$1.32
|
1 |
|
usually ships 12-18 days |
| 018 |
225-0080
|
Black wire lead |
$0.99
|
1 |
|
usually ships 1-5 days |
| 019 |
225-0081
|
Blue wire lead |
$0.99
|
1 |
|
usually ships 1-5 days |
| 020a |
225-0054
|
Herc hose assembly |
$71.10
|
2 |
|
ships same day |
| 020b |
225-0054
|
Herc hose assembly |
$71.10
|
2 |
|
ships same day |
| 021 |
225-0082
|
Hose clamp |
$2.59
|
5 |
|
ships same day |
| 022 |
225-0083
|
90 degree straight elbow |
$17.67
|
2 |
|
usually ships 12-18 days |
| 023a |
225-0082
|
Hose clamp |
$2.59
|
1 |
(metal) |
ships same day |
| 023b |
225-0511
|
Hose clamp |
$1.12
|
1 |
(plastic) |
ships same day |
| 024 |
225-0084
|
Knob (black) |
$8.77
|
1 |
|
ships same day |
| 025 |
225-0085
|
Set screw |
$0.99
|
1 |
|
usually ships 12-18 days |
