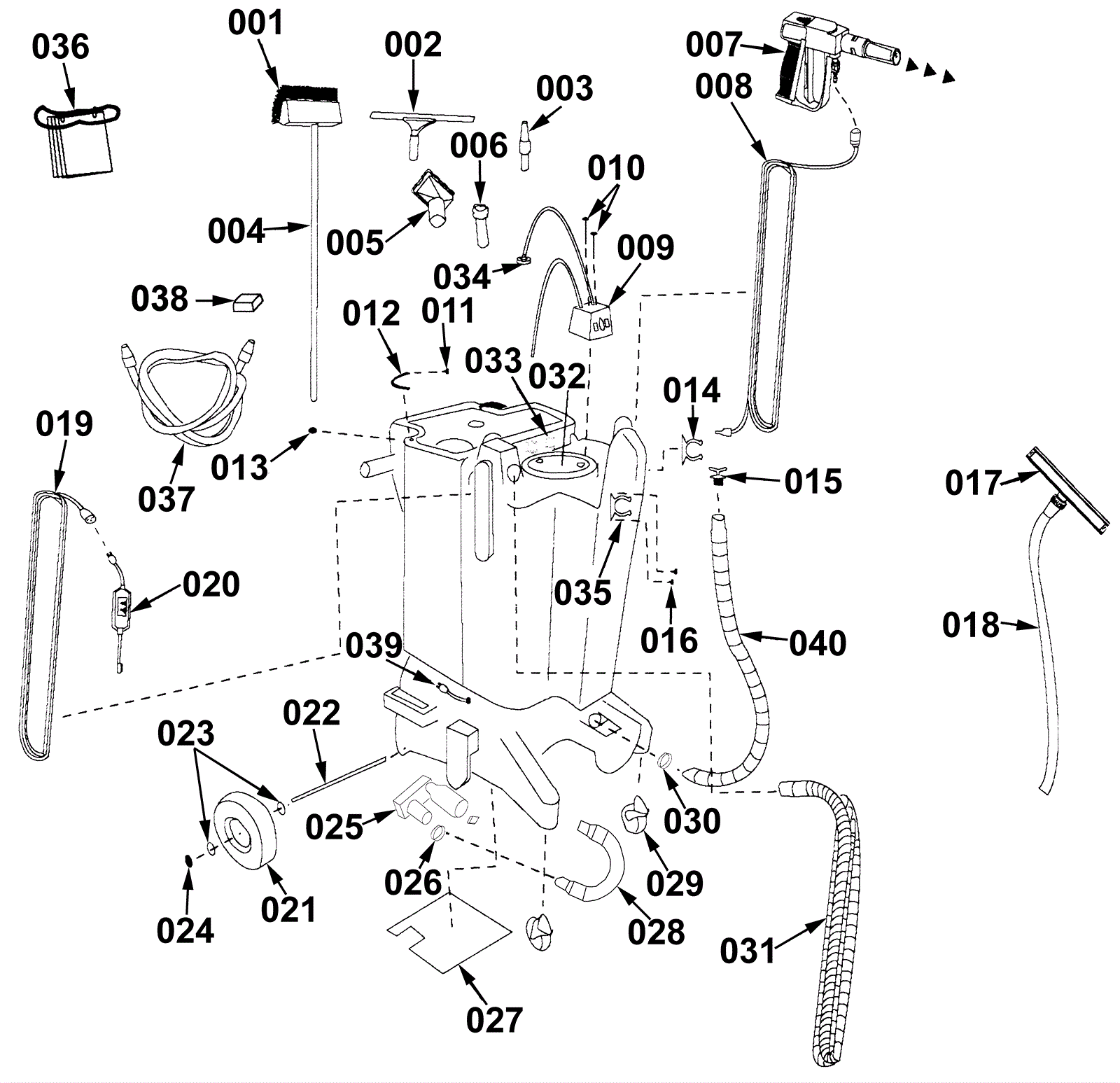

KVJR00 External Parts - SN 3004 and Higher

#PartDescriptionPriceReqNotesAvailability
001 225-0003 Deck brush (blue) (brush only) $55.08 1 ships same day
002 225-0004 Window squeegee $24.32 1 ships same day
003 225-0005 Blow nozzle $12.84 1 ships same day
004 225-0006 Brush handle - HANDLE ONLY $20.28 1 ships same day
005 172-2913 5 inch drain tool $33.43 1 ships same day
006 225-0405 Universal fill hose $38.52 1 ships same day
007a 225-0173 Spray gun assembly with 1/32 inch nozzle $111.11 1 (OEM) usually ships 12-18 days
007b 991-3023 Spray gun assembly with 1/32 inch nozzle $78.81 1 (NON-OEM) ships same day
007c 225-0303 Mini ball valve $51.13 1 ships same day
008a 225-0010 500PSI 45 foot pressure hose assembly (2 female connectors) $338.71 1 (OEM) ships same day
008b 991-2429 1/4 inch 45 foot hose with fittings and valve $228.66 1 (NON-OEM) ships same day
008c 225-0054 Herc hose assembly $65.84 1 hercules hose ships same day
009a 225-0011 Electrical box and chemical line assembly (2 2-way switches) $958.72 1 ships same day
009b 225-0074 Switch box (cover only) $116.39 ships same day
010 999-1123 Screw 1/4-20 x 4 flat head phillips stainless steel $2.77 2 ships same day
011 225-0012 Screw #8 self drilling $0.99 1 ships same day
012 225-0013 Wrap and snap assembly $2.96 1 usually ships 12-18 days
013 225-0014 Snap stud $1.73 1 ships same day
014 225-0015 Clamp #13 $6.96 1 ships same day
015 225-0016 Expansion plug $18.94 1 usually ships 12-18 days
016 999-1124 Screw 8-32 x 3/4 flat head square stainless steel $0.99 2 ships same day
017 225-0017 14 1/2 inch squeegee tool with wheels $64.12 1 ships same day
018a 225-0018 Aluminum vacuum wand (2 piece) $74.35 1 ships same day
018b 225-0019 2 Piece vacuum wand and squeegee head assembly $117.94 1 ships same day
019 225-0020 50 foot extension cord with GFCI (yellow) $262.52 1 ships same day
020 208-0052 GFCI receptacle $64.63 1 ships same day
021a 225-0022 10 inch pneumatic wheel with 5/8 hub $80.73 2 ships same day
021b 225-0023 Bearing 5/8 $7.92 4 usually ships 12-18 days
022 225-0024 Axle 5/8 x 23 inch $70.48 1 ships same day
023 999-0349 Washer 5/8 SAE flat $0.99 4 ships same day
024 225-0025 Nut 5/8 push cap $2.22 2 usually ships 12-18 days
025 225-0026 Muffler assembly $194.90 1 ships same day
026 997-2003 Hose clamp $2.66 1 ships same day
027 225-0028 Bottom cover $20.23 1 usually ships 12-18 days
028 225-0029 Muffler hose assembly $22.90 1 usually ships 12-18 days
029 225-0030 4 inch caster $41.10 2 ships same day
030 997-2003 Hose clamp $2.66 1 ships same day
031a 225-0297 33 foot slinky vacuum hose assembly $84.08 1 (OEM) ships same day
031b 991-7122 33 foot vacuum hose with cuffs $119.88 1 (NON-OEM) ships same day
032a 225-0032 6 inch clear lid with deck plate ring $163.50 1 usually ships 12-18 days
032b 225-0354 6 inch tank lid (black) $63.13 1 ships same day
033 225-0015 Clamp #13 $6.96 2 ships same day
034 225-0033 Yellow safety cap (white cap no longer available) $20.68 2 ships same day
035 225-0034 Clamp #15 $13.00 1 ships same day
036 225-0035 Instructional laminated card $24.27 1 usually ships 12-18 days
037 225-0036 33 feet blow hose $153.47 1 usually ships 12-18 days
038a 225-0037 Metering tip pack $47.70 1 Metering tip package includes 2 of each colored metering tip, a chemical cap, plastic safety cap, and allen wrench. ships same day
038b 225-0038 Orange metering tips $2.24 1 ships same day
038c 225-0039 Aqua metering tip $2.23 1 ships same day
038d 225-0040 Black metering tip $2.23 1 ships same day
038e 225-0041 Tan metering tips $2.23 1 usually ships 12-18 days
039 991-2108 125V 15amp male replacement plug $5.59 1 ships same day
040a 225-0043 Drain hose assembly $113.22 1 (After SN 8601) ships same day
040b 225-0484 Dump hose assembly (OBSOLETE) $170.52 1 (Before SN 8600) usually ships 12-18 days
N/S 225-0045 120V vacuum motor without inlet tube $299.38 1 ships same day
N/S 225-0046 Wet/dry attachment $109.93 1 usually ships 1-5 days
N/S 225-0047 Large snap clamp $5.02 1 ships same day
N/S 225-0271 Snap clamp $5.39 1 usually ships 12-18 days
N/S 225-0287 Hour meter $60.51 1 ships same day
N/S 225-0324 Base assembly $340.92 1 usually ships 1-5 days
