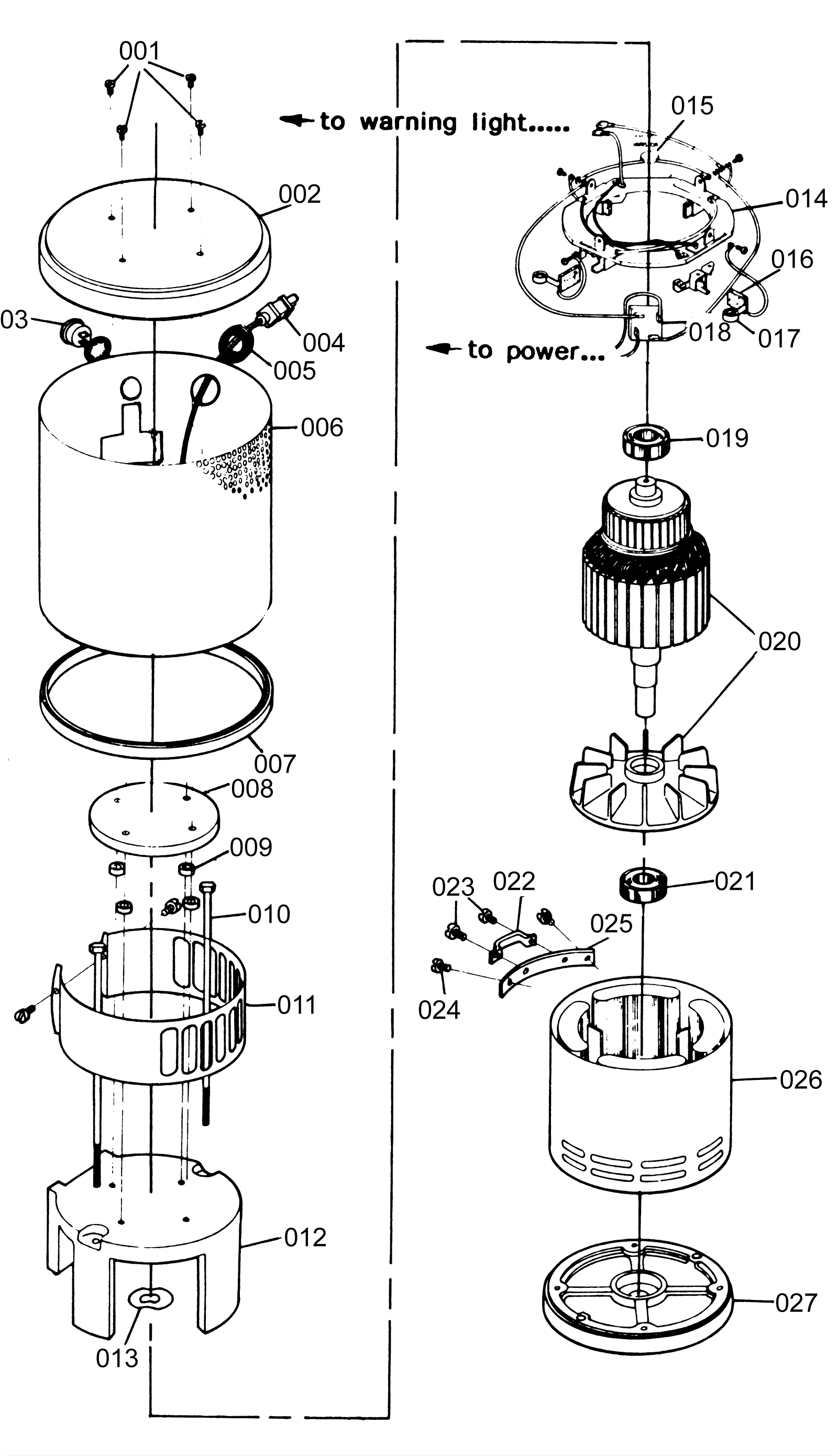

Motor Assembly

#PartDescription ReqNotesAvailability
000 223-0292 1.5 hp motor
001 223-0138 Canopy screw
002 223-0137 Motor canopy
003 172-1574 Brush wear light (OBSOLETE)
004 223-0187 Motor lead
005 223-0164 Grommet
006 223-0147 Perforated motor cover
007 223-0148 Motor cover gasket
008 223-0240 Canopy gasket
009 223-0241 Canopy spacer
010a 223-0242 Thru bolt
010c 223-0272 Thru bolt (Ohio electric motor 8223 after 7/92)
011 223-0243 Brush band cover
012a 223-0244 Top end bell
012b 223-0245 Comm cover (Ohio electric motor 8223 after 7/92)
013a 223-0246 Washer helical
013b 223-0168 Washer helical (Ohio electric motor 8223 before 7/92)
013c 223-0247 Washer (Ohio electric motor 8223 after 7/92)
014a 223-0248 Brush board assembly
014b 223-0169 Brush board assembly (Ohio electric motor 8223 before 7/92)
014c 223-0249 Brush board assembly (Ohio electric motor 8223 after 7/92)
015 223-0170 Varistor
016a 223-0250 Carbon brush 4
016b 223-0171 Carbon brush (sold individually) 4 (Ohio electric motor 8223 before 7/92)
016c 223-0251 Motor brush 4 (Ohio electric motor 8223 after 7/92)
017a 223-0252 Motor brush spring
017b 223-0172 Motor brush spring (OBSOLETE) (Ohio electric motor 8223 before 7/92)
017c 223-0253 Brush spring (Ohio electric motor 8223 after 7/92)
017d 223-0302 Motor brush spring 4 (Imperial Electric Motor only)
018 223-0173 Rectifier
019a 223-0254 Upper bearing
019b 223-0174 Upper bearing (Ohio electric motor 8223 before 7/92)
019c 223-0255 Bearing (Ohio electric motor 8223 after 7/92)
020a 223-0256 Armature with fan
020b 223-0257 Armature with fan (Ohio electric motor 8223 before 7/92)
020c 223-0258 Armature (Ohio electric motor 8223 after 7/92)
021a 223-0259 Lower bearing
021b 223-0260 Lower bearing (Ohio electric motor 8223 before 7/92)
021c 223-0261 Bearing (Ohio electric motor 8223 after 7/92)
022 223-0262 Hook bracket
023 223-0263 Hook bracket screw
024 223-0264 Hook bracket mounting screw
025 223-0265 Hook bracket mount
026a 223-0266 Field assembly
026b 223-0267 Field assembly (Ohio electric motor 8223 before 7/92)
026c 223-0268 Field (Ohio electric motor 8223 after 7/92)
027a 223-0269 Lower end bell
027b 223-0270 Lower end bell (Ohio electric motor 8223 before 7/92)
027c 223-0271 Lower end bell (Ohio electric motor 8223 after 7/92)
