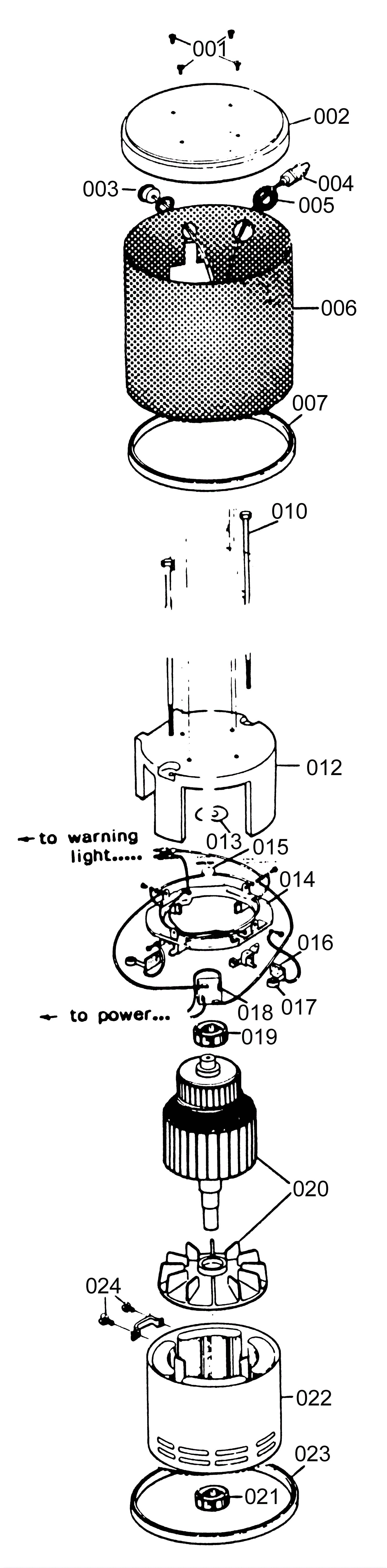

2000DC Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 223-0292 1.5 hp motor $1,133.88 usually ships 1-5 days
001 223-0183 Idler gear $73.54 usually ships 1-5 days
002 223-0137 Motor canopy $21.24 usually ships 1-5 days
003 172-1574 Brush wear light (OBSOLETE) $27.92 usually ships 12-18 days
004 223-0187 Motor lead $14.17 usually ships 12-18 days
005 223-0164 Grommet $2.12 usually ships 1-5 days
006 223-0147 Perforated motor cover $84.93 usually ships 1-5 days
007 223-0148 Motor cover gasket $12.28 usually ships 1-5 days
010 223-0188 Thru bolt $5.27 usually ships 1-5 days
012 223-0189 Top end bell $70.18 usually ships 1-5 days
013 223-0190 Washer helical $1.51 usually ships 1-5 days
014 223-0191 Brush board assembly $342.19 usually ships 12-18 days
015 223-0192 Varistor $33.10 ships same day
016a 223-0193 Carbon brush (pkg of 4) $68.83 4 usually ships 12-18 days
016b 223-0171 Carbon brush (sold individually) $20.50 4 for model C-561254X822 usually ships 12-18 days
017 223-0194 Motor brush spring $6.48 usually ships 1-5 days
018 223-0173 Rectifier $155.82 usually ships 12-18 days
019 223-0195 Upper bearing $22.83 usually ships 1-5 days
020 223-0196 Armature with fan $613.79 usually ships 1-5 days
021 223-0197 Lower bearing $24.56 usually ships 1-5 days
022 223-0198 Field assembly $526.37 (includes hook bracket) usually ships 1-5 days
023 223-0199 Lower end bell $81.07 usually ships 1-5 days
024 223-0200 Hook bracket with hardware (OBSOLETE) $29.69 usually ships 12-18 days
