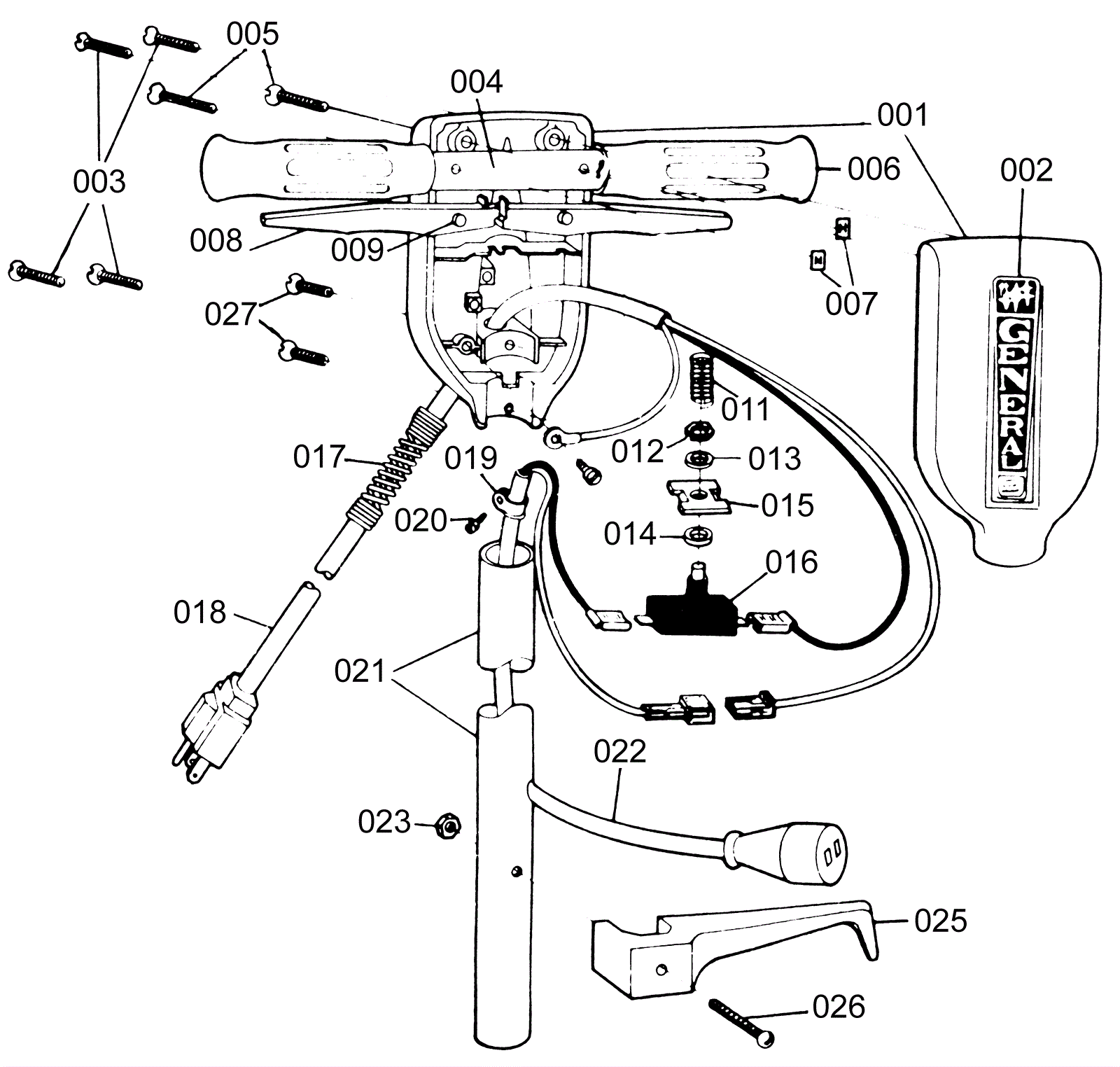

2000DC Handle Assembly

#PartDescriptionPriceReqNotesAvailability
000a 223-0016 Handle assebly (less cable) $410.04 usually ships 1-5 days
000b 223-0017 Handle assebly (50' cable) $537.30 usually ships 12-18 days
001 223-0018 Switchbox assembly $210.25 usually ships 12-18 days
002 223-0019 Nameplate $4.53 usually ships 1-5 days
003 223-0020 Switchbox screw $1.74 usually ships 12-18 days
004 223-0021 Handle bar $16.96 usually ships 1-5 days
005 223-0022 Handle bar screw $0.99 ships same day
006 223-0023 Handle grip $9.26 usually ships 12-18 days
007 223-0024 Nut (OBSOLETE) $0.99 usually ships 12-18 days
008 223-0025 Switch lever $30.02 usually ships 12-18 days
009 223-0026 Lever pivot pin $3.50 usually ships 12-18 days
011 223-0028 Coil spring $9.55 usually ships 12-18 days
012 223-0029 Switch nut $4.21 usually ships 12-18 days
013 223-0030 Washer $2.63 usually ships 12-18 days
014 223-0105 Washer $3.52 usually ships 12-18 days
015 223-0031 Switch bracket $32.74 usually ships 12-18 days
016 217-0014 On/off switch $42.96 ships same day
017 223-0184 Strain relief (OBSOLETE) $9.71 usually ships 12-18 days
018 223-0035 Cable assembly $144.16 (for 019, 021, and 023) ships same day
019 223-0036 Strain relief (tube wire) $0.99 usually ships 12-18 days
020 223-0037 Strain relief screw $0.99 usually ships 1-5 days
021 223-0038 Handle tube $169.68 usually ships 1-5 days
022 223-0039 Tube wire assembly $25.75 usually ships 12-18 days
023 223-0040 Nut $1.45 usually ships 12-18 days
024 223-0185 Cable hook spacer Call for price usually ships 1-5 days
025 223-0041 Cable hook $37.71 usually ships 1-5 days
026 223-0186 Cable hook screw $0.99 usually ships 1-5 days
027 223-0043 Switchbox screw Call for price usually ships 1-5 days
