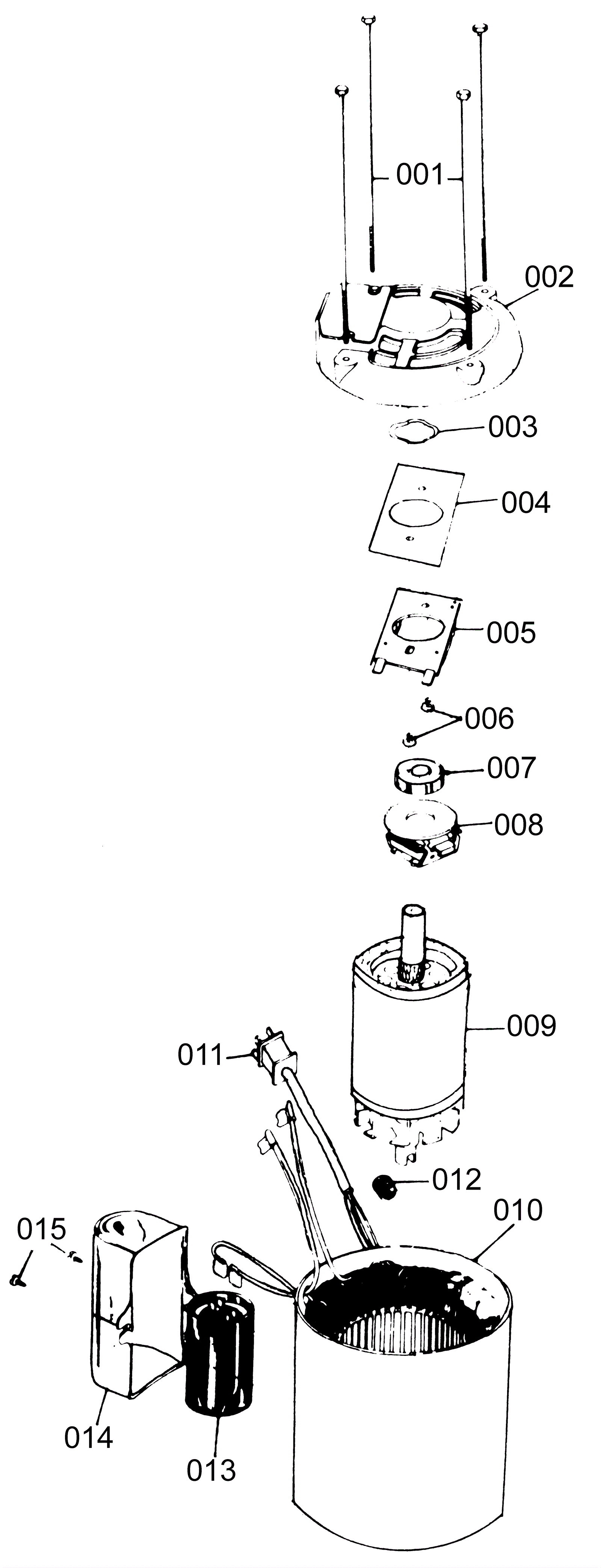

KC-18 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
001 223-0074 Thru bolt $6.20 usually ships 1-5 days
002 223-0128 Top end bell $109.49 usually ships 1-5 days
003 223-0076 Tension washer $1.80 usually ships 12-18 days
004 223-0077 Switch insulation $3.85 usually ships 1-5 days
005 223-0078 Stationary switch $64.06 usually ships 12-18 days
006 223-0079 Stationary switch screw $2.01 usually ships 12-18 days
007 223-0080 Upper bearing $19.04 usually ships 12-18 days
008 223-0081 Rotary switch (OBSOLETE) $62.19 usually ships 12-18 days
009 N/A Not available Call for price Armature usually ships 3-26 days
010 N/A Not available Call for price Field assembly usually ships 3-26 days
011 223-0082 Motor lead (3 wires) $56.55 usually ships 12-18 days
012 223-0083 Strain relief $4.30 usually ships 12-18 days
013 223-0130 Capacitor 594 manufactured (OBSOLETE) $49.49 usually ships 12-18 days
014 223-0085 Capacitor cover $35.06 usually ships 1-5 days
015 223-0001 Screw $2.26 usually ships 12-18 days
035a 223-0125 Motor 1/2 HP Call for price usually ships 1-5 days
035b 223-0126 Motor 3/4 HP Call for price usually ships 1-5 days
035c 223-0127 Motor 1 HP $752.26 usually ships 1-5 days
037a 223-0131 Gear head unit 3/4 HP Call for price usually ships 1-5 days
037b 223-0132 Gear head unit 1 HP Call for price usually ships 1-5 days
037c 223-0133 Gear head unit 1/2 HP Call for price usually ships 1-5 days
