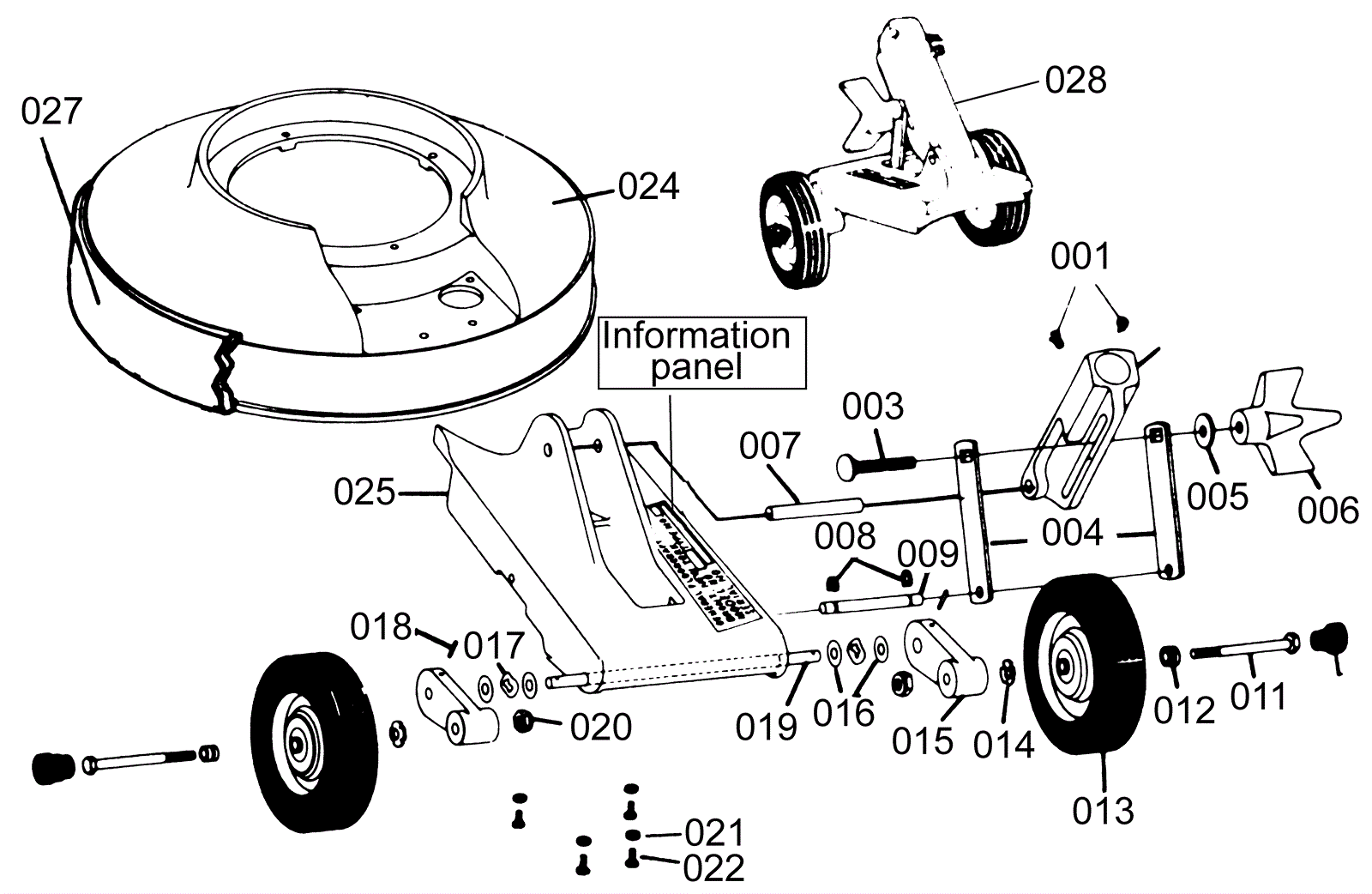

KC-18 Carraige Assembly

#PartDescriptionPriceReqNotesAvailability
001 223-0044 Handle set screw $1.72 usually ships 5-16 days
002 223-0045 Handle adaptor $165.14 usually ships 5-16 days
003 N/A Not available Call for price (lock link screw) usually ships 3-26 days
004 223-0047 Handle adaptor link $10.60 usually ships 1-5 days
005 223-0048 Link lock knob washer $4.41 ships same day
006 223-0049 Link lock knob $88.91 ships same day
007 223-0050 Adaptor pin pivot $11.48 usually ships 5-16 days
008 223-0051 Snap ring $2.20 usually ships 5-16 days
009 223-0052 Link pivot pin $6.62 usually ships 5-16 days
010 223-0053 Wheel axle tip $1.97 ships same day
011 223-0121 Axle $8.09 usually ships 5-16 days
012 223-0055 Wheel axle spacer $4.38 usually ships 5-16 days
013 223-0056 Wheel $19.36 ships same day
014 223-0209 Washer $0.99 ships same day
015 223-0058 Pivot pin $30.16 usually ships 5-16 days
016 223-0059 Washer $5.28 ships same day
017 223-0060 Tension washer $5.28 ships same day
018 223-0061 Pivot shaft pin $1.84 ships same day
019 223-0062 Wheel carraige pivot shaft $43.84 usually ships 5-16 days
020 223-0063 Wheel axle nut $1.74 usually ships 5-16 days
021 223-0071 Washer $1.76 usually ships 5-16 days
022 223-0072 Mounting bolt $1.76 usually ships 5-16 days
024a 223-0008 Apron $342.17 (for KC-18) usually ships 1-5 days
024b 223-0009 Apron $399.01 (for KC-20) usually ships 1-5 days
024c 223-0010 Apron $410.86 (for KC-22) usually ships 1-5 days
025 223-0073 Carraige $381.36 usually ships 1-5 days
028 223-0143 Complete carraige assembly $548.61 usually ships 1-5 days
N/S 223-0141 Shampoo nipple $5.82 (for KC-14 and 16) usually ships 1-5 days
N/S 223-0142 Shampoo nipple $5.82 for KC-18, 20, and 22) usually ships 1-5 days
