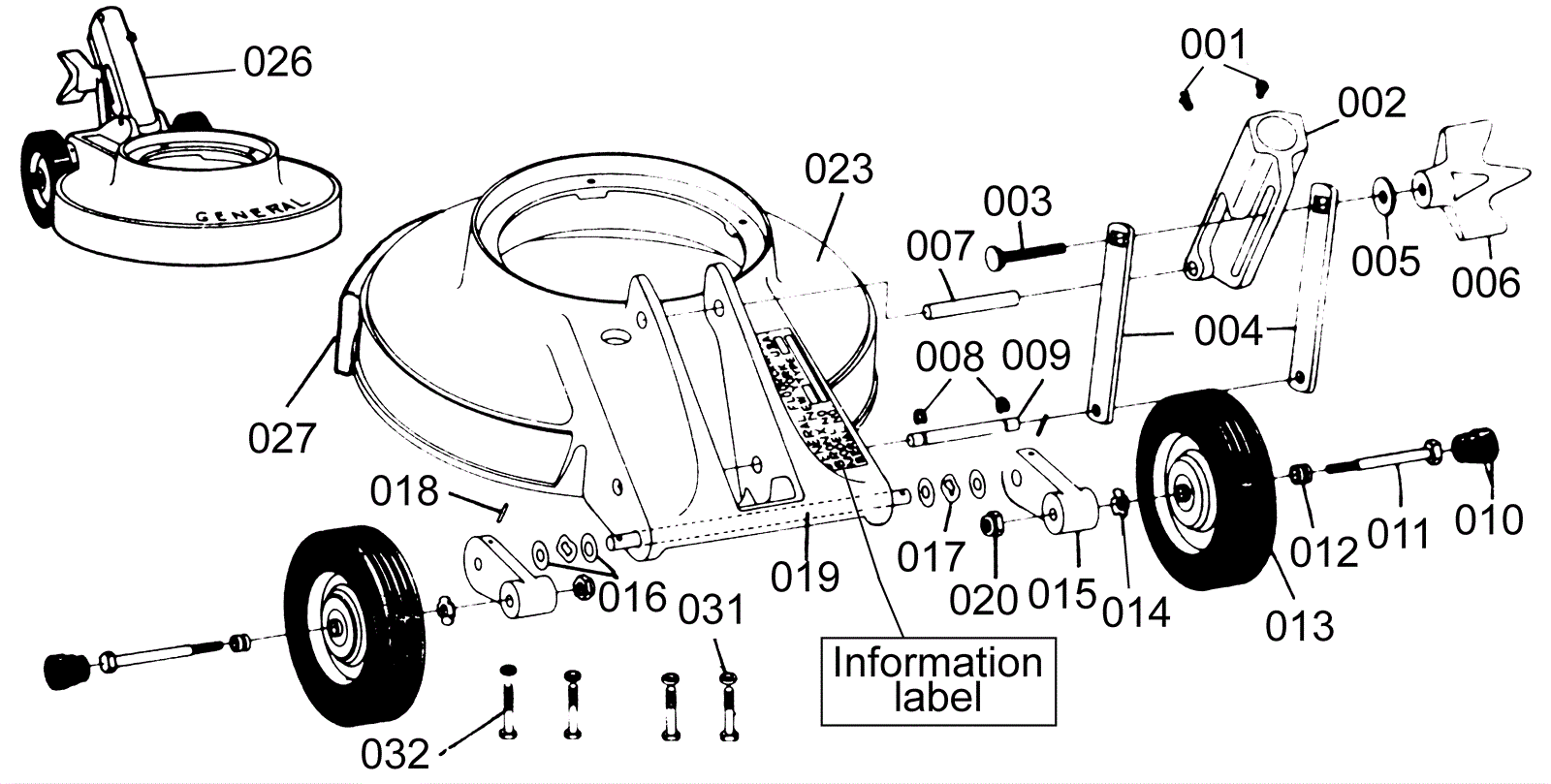

KC-18 Apron Assembly

#PartDescriptionPriceReqNotesAvailability
001 223-0044 Handle set screw $1.72 usually ships 5-16 days
002 223-0045 Handle adaptor $165.14 usually ships 5-16 days
003 N/A Not available Call for price (lock link screw) usually ships 3-26 days
004 223-0047 Handle adaptor link $10.60 usually ships 1-5 days
005 223-0048 Link lock knob washer $4.41 ships same day
006 223-0049 Link lock knob $88.91 ships same day
007 223-0050 Adaptor pin pivot $11.48 usually ships 5-16 days
008 223-0051 Snap ring $2.20 usually ships 5-16 days
009 223-0052 Link pivot pin $6.62 usually ships 5-16 days
010 223-0053 Wheel axle tip $1.97 ships same day
011 223-0121 Axle $8.09 usually ships 5-16 days
012 223-0055 Wheel axle spacer $4.38 usually ships 5-16 days
013 223-0056 Wheel $19.36 ships same day
014 223-0209 Washer $0.99 ships same day
015 223-0058 Pivot pin $30.16 usually ships 5-16 days
016 223-0059 Washer $5.28 ships same day
017 223-0060 Tension washer $5.28 ships same day
018 223-0061 Pivot shaft pin $1.84 ships same day
019 223-0062 Wheel carraige pivot shaft $43.84 usually ships 5-16 days
020 223-0063 Wheel axle nut $1.74 usually ships 5-16 days
023a 223-0064 Apron carraige (15A) $367.63 (for KC 14) usually ships 1-5 days
023b 223-0065 Apron carraige $424.19 (for KC 16) usually ships 1-5 days
026a 223-0014 Carraige assembly $735.24 (for KC 14) usually ships 1-5 days
026b 223-0015 Carraige assembly $763.53 (for KC 16) usually ships 1-5 days
027a 223-0066 Bumper (15) $48.09 (for KC 14) usually ships 1-5 days
027b 223-0067 Bumper $70.24 (for KC 16) usually ships 5-16 days
027c 223-0068 Bumper $56.55 (for KC 18) usually ships 5-16 days
027d N/A Not available Call for price (for KC 20) (Bumper) usually ships 3-26 days
027e 223-0070 Bumper (23) $60.14 (for KC 22) usually ships 1-5 days
031 223-0011 Washer $0.99 usually ships 1-5 days
032 N/A Not available Call for price Bolt usually ships 3-26 days
N/S 223-0141 Shampoo nipple $5.82 (for KC 14 and 16) usually ships 1-5 days
N/S 223-0142 Shampoo nipple $5.82 (for KC 18, 20, and 22) usually ships 1-5 days
