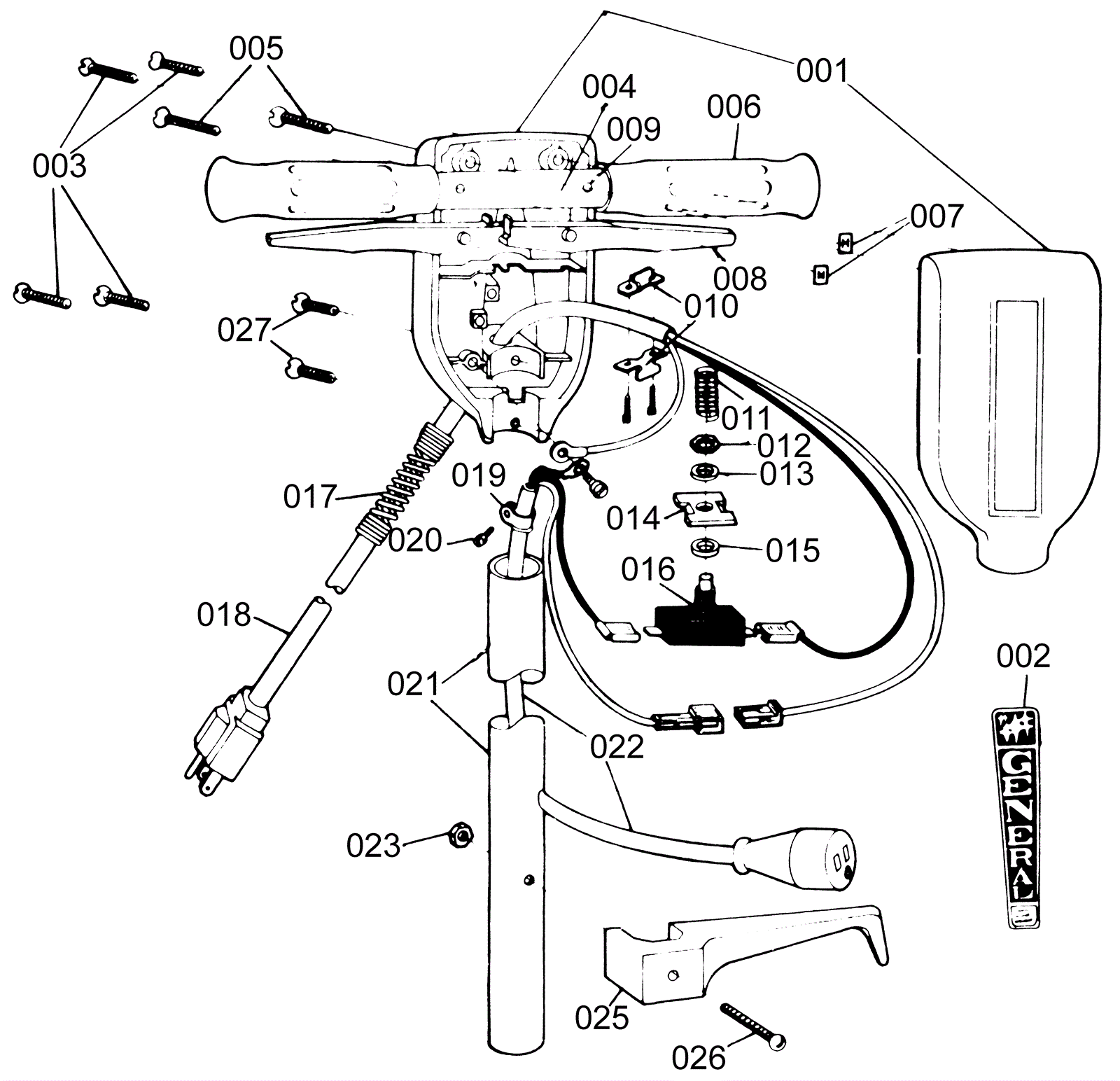

KC-18 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 223-0018 Switchbox assembly $210.25 (individual tops and bottoms cannot be ordered seperately, this assembly includes 4 of number 003) usually ships 5-16 days
002 223-0019 Nameplate $4.53 usually ships 1-5 days
003 223-0020 Switchbox screw $1.74 usually ships 5-16 days
004 223-0021 Handle bar $16.96 usually ships 1-5 days
005 223-0022 Handle bar screw $0.99 ships same day
006 223-0023 Handle grip $9.26 usually ships 5-16 days
007 223-0024 Nut (OBSOLETE) $0.99 usually ships 5-16 days
008 223-0025 Switch lever $30.02 ships same day
009 223-0026 Lever pivot pin $3.50 usually ships 5-16 days
010 223-0027 Strain relief $4.55 usually ships 5-16 days
011 223-0028 Coil spring $9.55 usually ships 5-16 days
012 223-0029 Switch nut $4.21 usually ships 5-16 days
013 223-0030 Washer $2.63 usually ships 5-16 days
014 223-0031 Switch bracket $32.74 usually ships 5-16 days
015 223-0030 Washer $2.63 usually ships 5-16 days
016 217-0014 On/off switch $42.96 ships same day
017 172-1561 Strain relief $28.84 ships same day
018a 223-0034 Cable assembly $104.62 (for KC 14 and 16) usually ships 1-5 days
018b 223-0035 Cable assembly $144.16 (for KC 18, 20, and 22) ships same day
019 223-0036 Strain relief (tube wire) $0.99 usually ships 5-16 days
020 223-0037 Strain relief screw $0.99 usually ships 1-5 days
021 223-0038 Handle tube $169.68 usually ships 1-5 days
022 223-0039 Tube wire assembly $25.75 usually ships 5-16 days
023 223-0040 Nut $1.45 usually ships 5-16 days
025 223-0140 Cable hook $37.04 usually ships 1-5 days
026 999-1596 Screw 1/4-20 x 2 1/4 pan head phillips zinc $0.99 ships same day
027 223-0043 Switchbox screw Call for price usually ships 1-5 days
