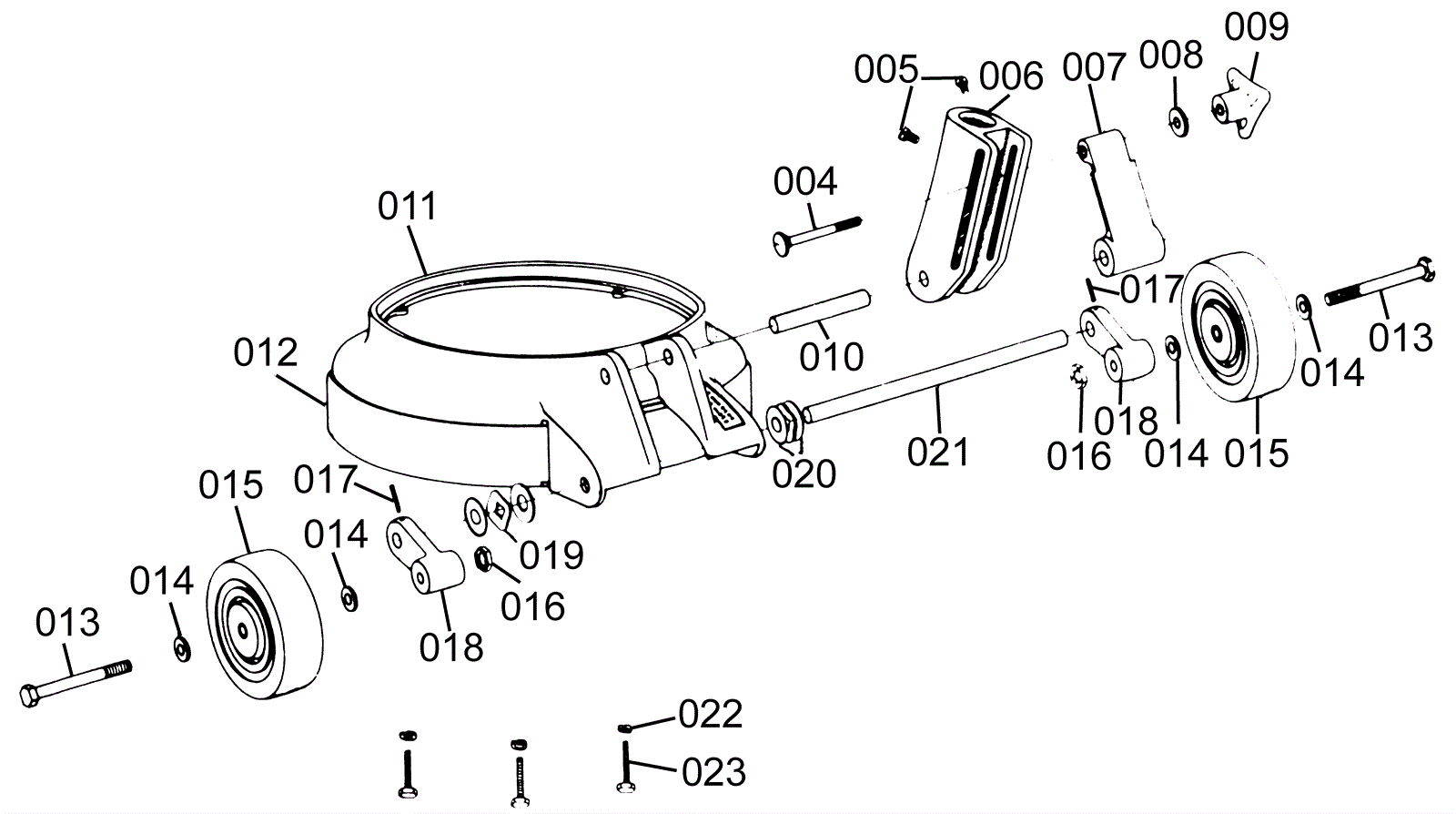

KC-12 Lower Machine Assembly

#PartDescriptionPriceReqNotesAvailability
004 223-0113 Link lock screw $28.39 usually ships 12-18 days
005 223-0114 Set screw $2.64 usually ships 12-18 days
006 223-0115 Handle adaptor $126.32 usually ships 12-18 days
007 223-0116 Handle adaptor link $59.84 usually ships 12-18 days
008 223-0117 Washer $3.06 usually ships 12-18 days
009 223-0118 Knob $32.60 usually ships 12-18 days
010 223-0050 Adaptor pin pivot $11.48 usually ships 12-18 days
011 223-0119 Apron $254.51 usually ships 1-5 days
012 223-0120 Bumper $36.76 usually ships 1-5 days
013 223-0121 Axle $8.09 usually ships 12-18 days
014 223-0105 Washer $3.52 usually ships 12-18 days
015 223-0210 Wheel $17.62 usually ships 12-18 days
016 223-0063 Wheel axle nut $1.74 usually ships 12-18 days
017 223-0061 Pivot shaft pin $1.84 ships same day
018 223-0058 Pivot pin $30.16 usually ships 12-18 days
019 223-0060 Tension washer $5.28 ships same day
020 223-0059 Washer $5.28 ships same day
021 223-0123 Pivot shaft $18.36 usually ships 12-18 days
022 223-0011 Washer $0.99 usually ships 1-5 days
023 223-0124 Motor mounting bolt $0.99 usually ships 1-5 days
