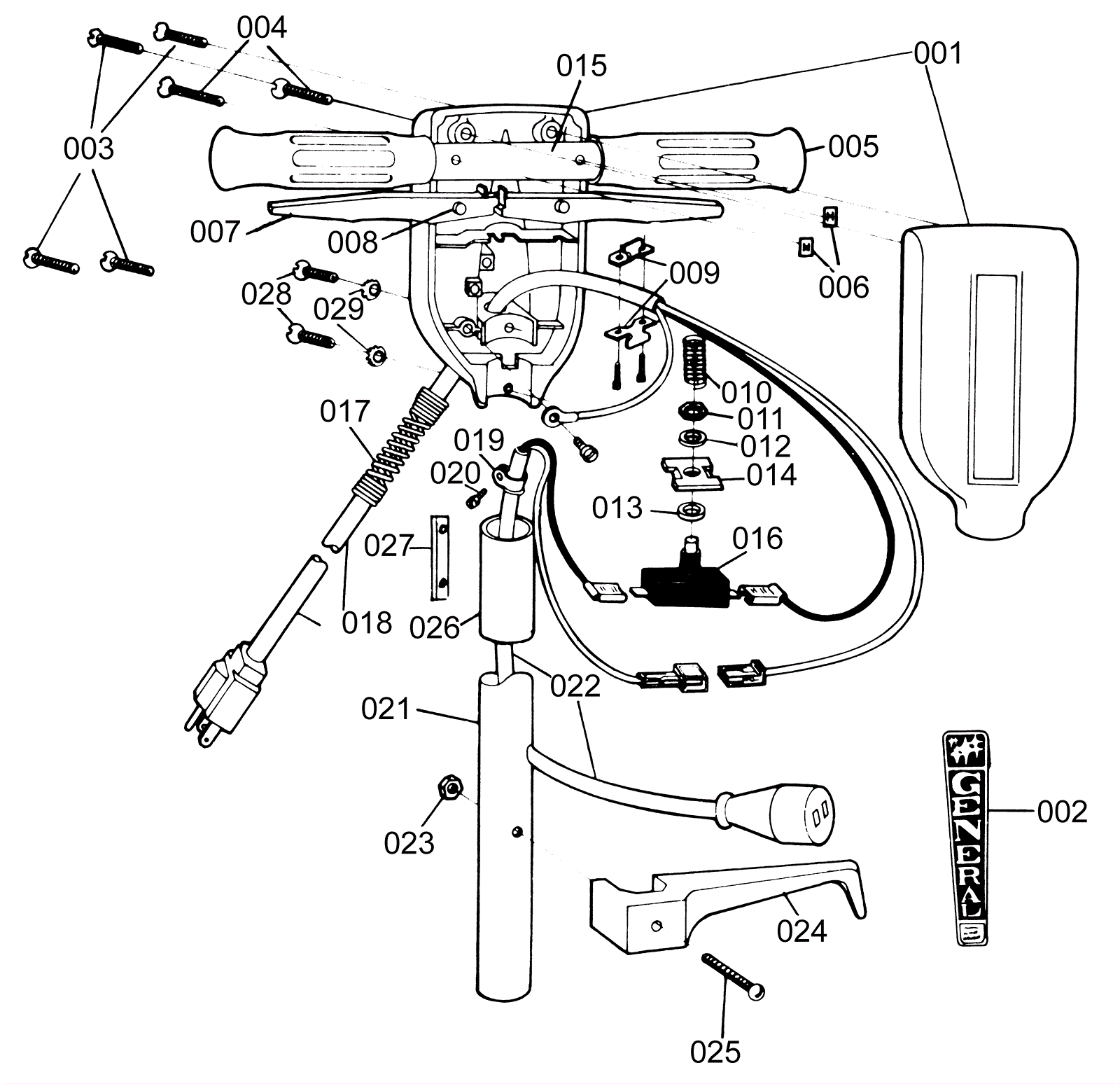

KC-12 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 223-0018 Switchbox assembly $210.25 (individual tops and bottoms cannot be sold seperately) usually ships 12-18 days
002 223-0019 Nameplate $4.53 usually ships 1-5 days
003 223-0020 Switchbox screw $1.74 usually ships 12-18 days
004 223-0022 Handle bar screw $0.99 ships same day
005 223-0023 Handle grip $9.26 usually ships 12-18 days
006 223-0024 Nut (OBSOLETE) $0.99 usually ships 12-18 days
007 223-0025 Switch lever $30.02 usually ships 12-18 days
008 223-0026 Lever pivot pin $3.50 usually ships 12-18 days
009 223-0027 Strain relief $4.55 usually ships 12-18 days
010 223-0028 Coil spring $9.55 usually ships 12-18 days
011 223-0029 Switch nut $4.21 usually ships 12-18 days
012 223-0030 Washer $2.63 usually ships 12-18 days
013 223-0105 Washer $3.52 usually ships 12-18 days
014 223-0031 Switch bracket $32.74 usually ships 12-18 days
015 223-0106 Handle bar $15.42 usually ships 1-5 days
016 217-0014 On/off switch $42.96 usually ships 12-16 days
017 172-1561 Strain relief $30.66 ships same day
018 223-0107 Cable assembly $90.50 usually ships 12-18 days
019 223-0108 Strain relief $0.99 usually ships 1-5 days
020 223-0037 Strain relief screw $0.99 usually ships 1-5 days
021 223-0109 Handle tube Call for price usually ships 1-5 days
022 223-0110 Tube wire assembly $15.57 usually ships 1-5 days
023 223-0040 Nut $1.45 usually ships 12-18 days
024 223-0041 Cable hook $37.71 usually ships 1-5 days
025 999-1596 Screw 1/4-20 x 2 1/4 pan head phillips zinc $0.99 ships same day
026 223-0111 Sleeve bushing $5.36 usually ships 1-5 days
027 223-0021 Handle bar $16.96 usually ships 1-5 days
028 223-0043 Switchbox screw Call for price usually ships 1-5 days
029 223-0112 Cone washer $0.99 usually ships 1-5 days
