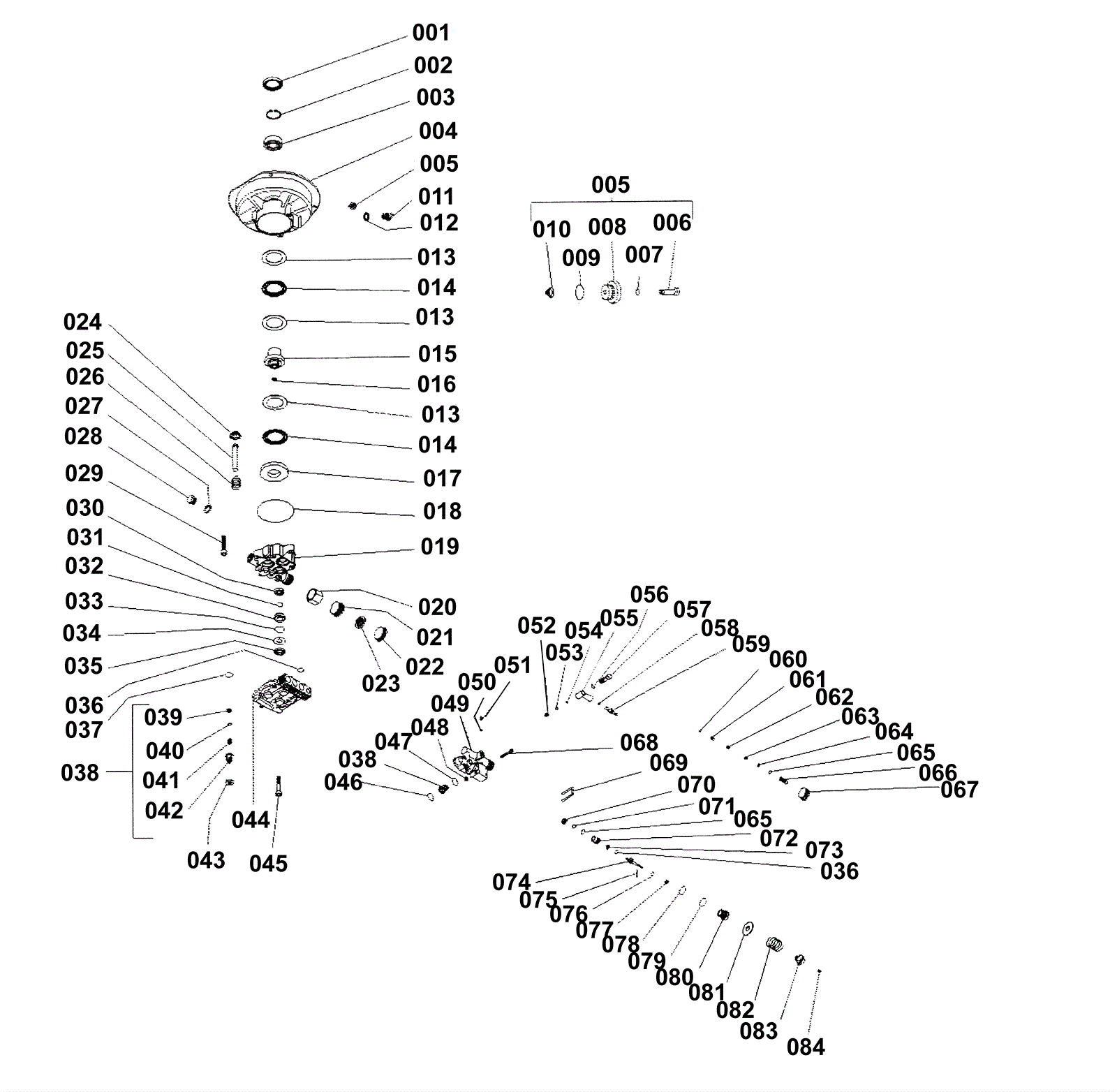

CV2100-0MBC Pump Assembly

#PartDescriptionPriceReqNotesAvailability
001 222-0039 Oil seal $52.27 1 usually ships 1-5 days
002 222-0040 Snap ring $8.80 1 usually ships 1-5 days
003 222-0041 Bearing $92.40 1 usually ships 1-5 days
004 222-0004 Pump $331.10 1 usually ships 1-5 days
005 222-0043 Oil vent assembly $4.36 1 usually ships 1-5 days
007 222-0044 O-ring $1.10 1 usually ships 1-5 days
011 222-0045 Oil sight glass (OBSOLETE) $1.54 1 usually ships 8-19 days
012 222-0046 O-ring $3.30 1 usually ships 1-5 days
013 222-0047 Thrust washer $12.10 3 usually ships 1-5 days
014 222-0048 Thrust needle roller bearing $22.00 2 usually ships 1-5 days
015 222-0049 Wobble plate $20.46 1 usually ships 1-5 days
016 222-0050 Plug $5.54 1 usually ships 1-5 days
017 222-0051 Thrust washer $24.55 1 usually ships 1-5 days
018 222-0052 O-ring $2.64 1 usually ships 1-5 days
019 222-0053 Pump housing $56.23 1 usually ships 1-5 days
020 222-0054 Garden hose connection $5.81 1 usually ships 1-5 days
021 222-0055 Garden hose adapter $5.15 1 usually ships 1-5 days
023 222-0056 Washer $0.99 1 usually ships 8-19 days
024 222-0057 Retainer $1.45 3 usually ships 1-5 days
025 222-0058 Piston $17.60 3 usually ships 1-5 days
026 222-0059 Spring $1.32 3 usually ships 1-5 days
027 222-0060 Gasket $3.43 1 usually ships 1-5 days
028 222-0061 Plug $4.22 1 usually ships 1-5 days
029 222-0062 Bolt $5.50 3 usually ships 1-5 days
030 222-0063 Oil seal $6.34 3 usually ships 1-5 days
031 222-0064 O-ring $3.30 3 usually ships 1-5 days
032 222-0065 Packing retainer $17.60 3 usually ships 1-5 days
033 222-0066 O-ring $1.72 3 usually ships 1-5 days
034 222-0067 Back-up ring $2.24 3 usually ships 1-5 days
035 222-0068 Pressure seal $46.07 3 usually ships 1-5 days
036 222-0009 O-ring $2.20 2 usually ships 1-5 days
037 222-0069 O-ring $3.56 3 usually ships 1-5 days
043 222-0070 Shim $1.32 3 usually ships 1-5 days
044 222-0071 Pump head $264.66 1 usually ships 1-5 days
045 222-0072 Bolt $3.56 5 usually ships 1-5 days
046 222-0073 O-ring $0.99 3 usually ships 1-5 days
047 222-0074 O-ring $4.62 4 usually ships 1-5 days
048 222-0075 Plug $4.40 1 usually ships 1-5 days
049 222-0076 Pump manifold Call for price 1 usually ships 1-5 days
050 222-0077 O-ring Call for price 1 usually ships 1-5 days
051 222-0078 Bolt Call for price 1 usually ships 1-5 days
055 222-0079 Detergent injector adapter Call for price 1 usually ships 1-5 days
057 222-0080 Banjo fitting $5.50 1 usually ships 1-5 days
058 222-0081 O-ring Call for price 1 usually ships 1-5 days
059 222-0082 Detergent injector hose barb Call for price 1 usually ships 1-5 days
060 222-0083 O-ring Call for price 1 usually ships 1-5 days
061 222-0084 Check valve Call for price 1 usually ships 1-5 days
062 222-0085 Check valve spring Call for price 1 usually ships 1-5 days
063 222-0086 Injector nozzle $2.48 1 usually ships 1-5 days
064 222-0087 O-ring Call for price 1 usually ships 1-5 days
065 222-0088 O-ring $2.20 2 usually ships 1-5 days
066 222-0089 Injector body $4.40 1 usually ships 1-5 days
068 222-0090 Bolt Call for price 4 usually ships 1-5 days
069 222-0091 U-clip Call for price 1 usually ships 1-5 days
070 222-0092 Valve seat plate Call for price 1 usually ships 1-5 days
071 222-0093 Ball Call for price 1 usually ships 1-5 days
072 222-0094 Unloader seat $4.46 1 usually ships 1-5 days
073 222-0095 Backup ring $6.86 1 usually ships 1-5 days
075 222-0096 Roll pin $2.20 1 usually ships 1-5 days
076 222-0097 O-ring $4.22 1 usually ships 1-5 days
077 222-0098 Backup ring $7.26 1 usually ships 1-5 days
078 222-0099 O-ring $2.77 1 usually ships 1-5 days
079 222-0100 O-ring Call for price 1 usually ships 1-5 days
080 222-0101 Body bypass valve $26.40 1 usually ships 1-5 days
081 222-0102 Washer $1.32 1 usually ships 1-5 days
082 222-0103 Pressure regulating spring $6.60 1 usually ships 1-5 days
083 222-0104 Pressure regulating nut $6.60 1 usually ships 1-5 days
084a 222-0105 Set screw $1.10 1 usually ships 1-5 days
084b 222-0106 Piston assembly $42.90 1 usually ships 1-5 days
084c 222-0107 Valve kit $50.56 1 usually ships 1-5 days
084d 222-0108 Injector repair kit $6.86 1 usually ships 1-5 days
084e 222-0109 Unloader check valve kit $83.69 1 usually ships 1-5 days
084f 222-0110 Unloader seat kit $7.66 1 usually ships 1-5 days
084g 222-0111 Unloader stem kit $37.62 1 usually ships 1-5 days
084h 222-0112 Manifold assembly $171.47 1 usually ships 1-5 days
084i 222-0113 Packing kit $72.07 1 usually ships 1-5 days
