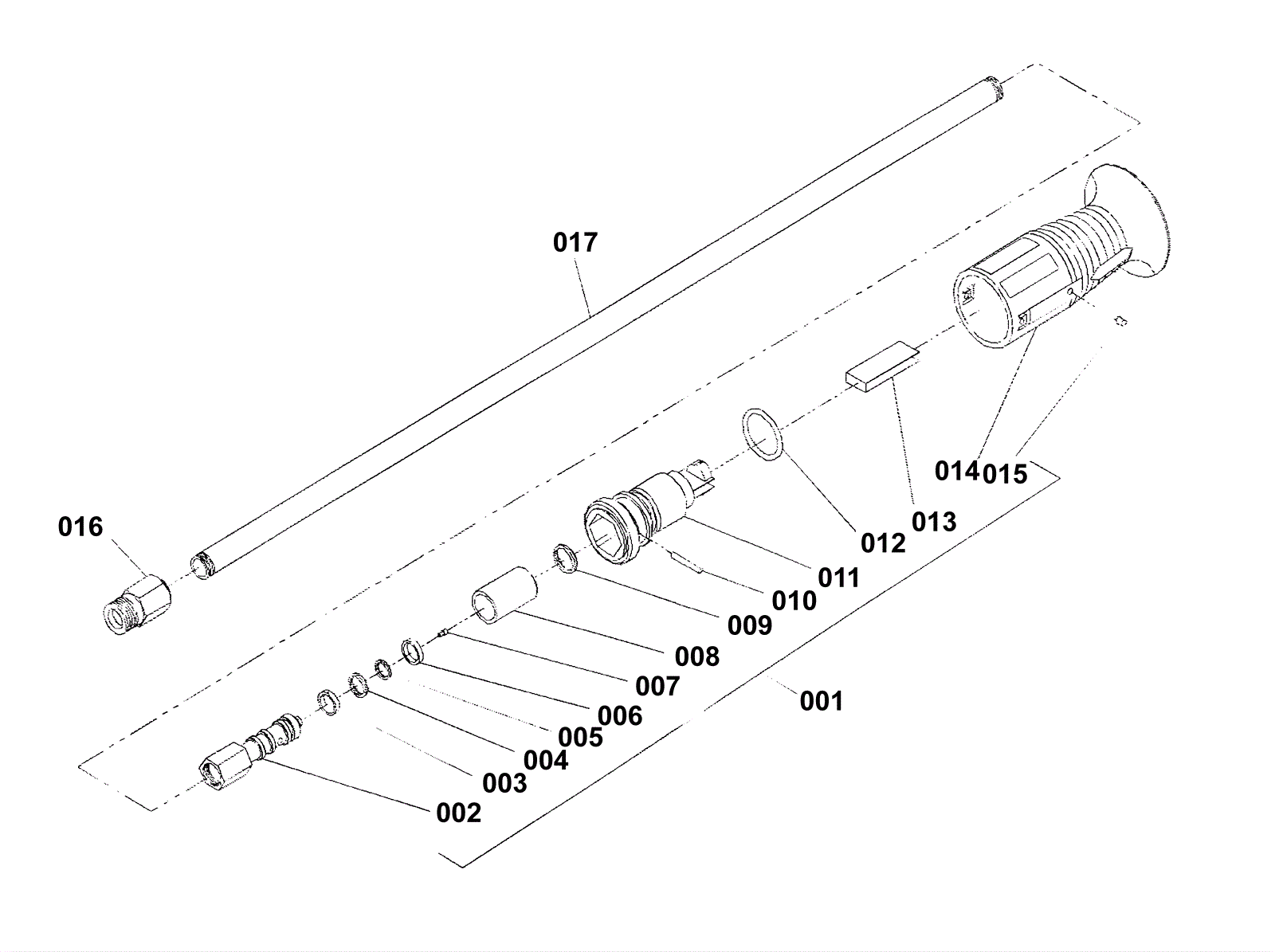

Lance Assembly

#PartDescriptionPriceReqNotesAvailability
001 222-0005 Nozzle assembly $34.10 1 usually ships 1-5 days
002 222-0006 Nozzle body $20.90 1 usually ships 1-5 days
003 222-0007 Back-up ring $2.20 1 usually ships 1-5 days
004 222-0008 O-ring $3.30 1 usually ships 1-5 days
005 222-0009 O-ring $2.20 1 usually ships 1-5 days
006 222-0010 Back up ring $2.20 1 usually ships 1-5 days
007 222-0011 Nozzle - 1.20mm $4.40 1 usually ships 1-5 days
009 222-0012 O-ring $1.10 1 usually ships 1-5 days
010 222-0013 Pin $1.10 1 usually ships 1-5 days
012 222-0014 O-ring $0.99 1 usually ships 1-5 days
013 222-0015 Angle plate $7.70 1 usually ships 1-5 days
014 222-0016 Nozzle protector $9.90 1 usually ships 1-5 days
015 222-0017 I.D. pin $0.99 1 usually ships 1-5 days
016 222-0018 Coupling $5.50 1 usually ships 1-5 days
017a 222-0019 Pipe $19.54 1 usually ships 1-5 days
017b 222-0020 Repair kit $22.00 1 usually ships 1-5 days
017c 222-0021 Complete lance assembly $42.24 1 usually ships 1-5 days
