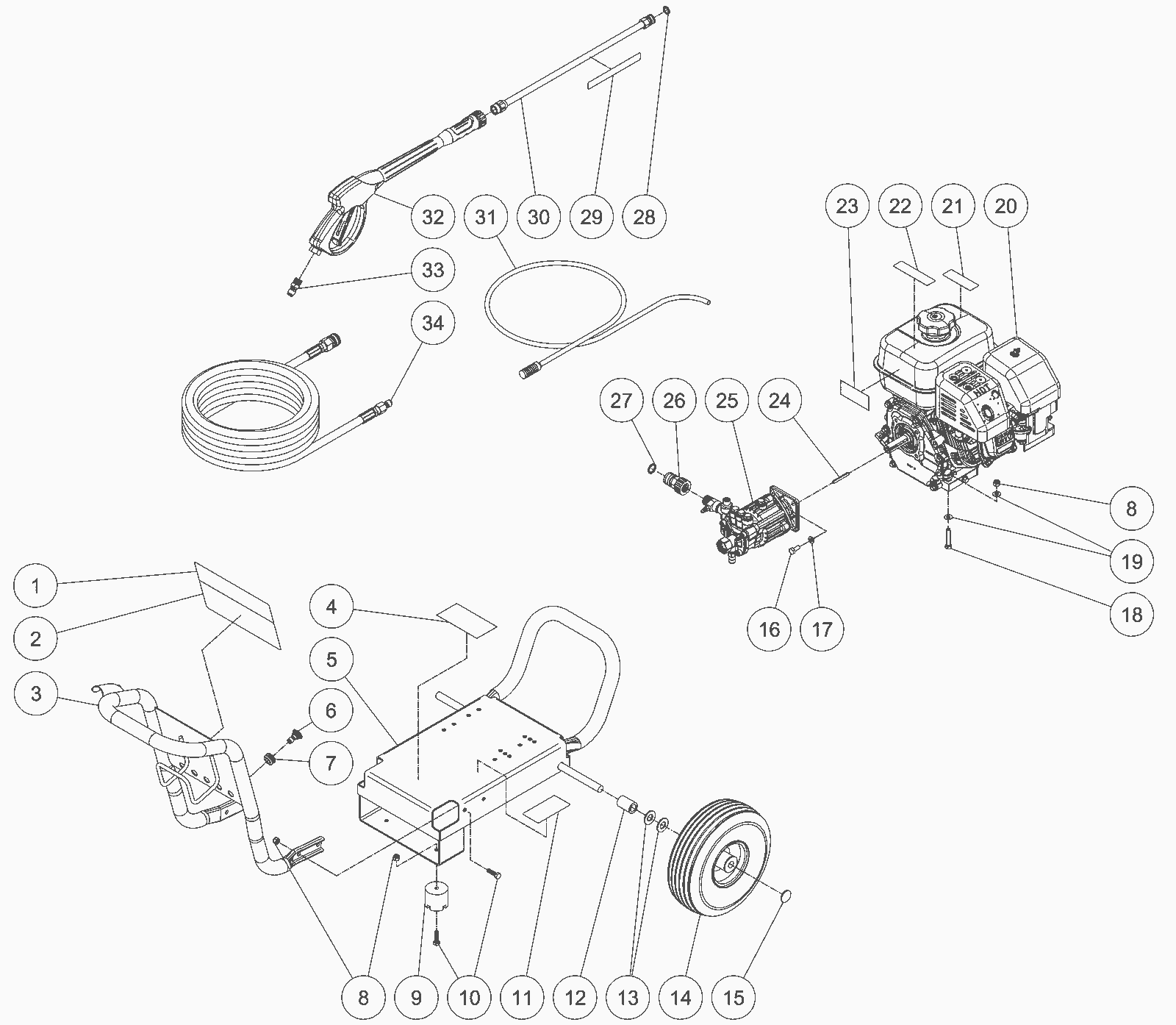

Frame Assembly

#PartDescription ReqNotesAvailability
1 222-0465 Decal 1
2 N/A Not available 1 (Decal) (only available in kit)
3 222-0466 Handle 1
4 222-0467 Decal 1
5 222-0468 Baseplate 1
6a 222-0469 65 degree detergent nozzle 1
6b 222-0470 Nozzle 1
6c 222-0471 15 degree nozzle 1
6d 222-0472 25 degree nozzle 1
6e 222-0473 Nozzle 1
7 222-0202 Grommet 5
8 222-0130 Locknut 10
9 222-0474 Isolator 2
10 222-0212 Bolt 6
11 N/A Not available 1
12 222-0475 Spacer 2
13 222-0476 Washer 4
14 222-0174 Tire and wheel assembly 2
15 222-0477 Cap 2
16 222-0478 Bolt 4
17 222-0211 Lock washer 4
18 222-0479 Bolt 4
19 222-0210 Washer 8
20 222-0480 Engine 1
21 N/A Not available 1 (Decal) (only available in kit)
22 N/A Not available 1 (Decal) (only available in kit)
23 N/A Not available 1 (Decal) (only available in kit)
24 222-0481 Key 1
25 222-0482 Pump 1
26 222-0196 Female coupler 1
27 222-0186 O-ring 1
28 222-0462 O-ring
29 N/A Not available 1 (Decal) (only available in kit)
30 222-0461 Lance assembly 1
31 222-0483 Detergent hose 1
32 222-0460 Gun and wand 1
33 222-0484 Quick connect 1
34 222-0485 Hose 1
N/S 222-0486 Decal kit 1 (includes 21-23)
